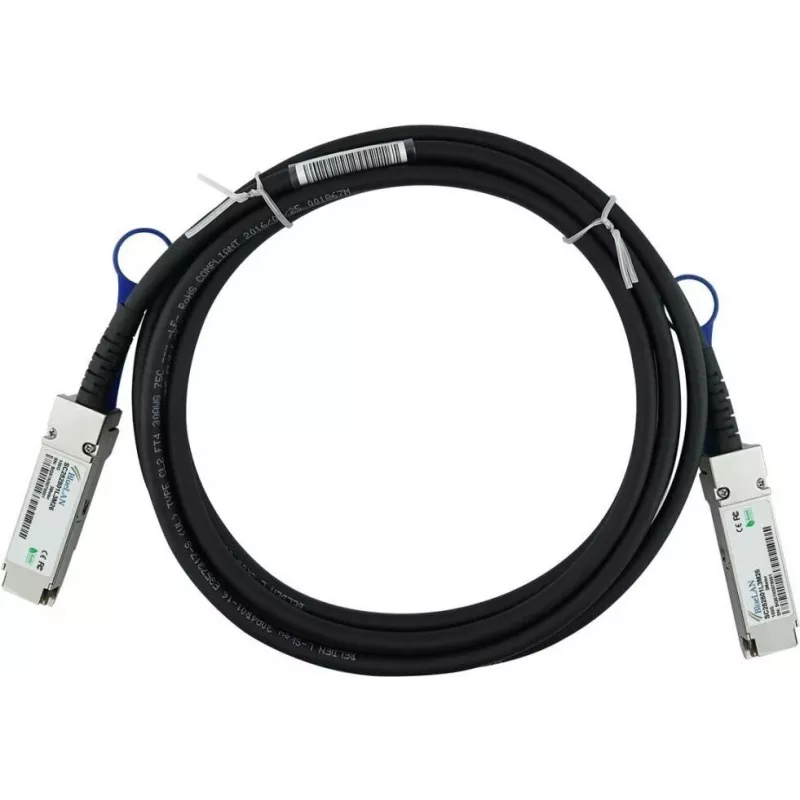

BlueLAN MCP1600-C01A-BL kompatibilný QSFP28 Direct Attach medený kábel, 100GBASE-CR4, InfiniBand EDR, 30AWG, 2m

The BlueLAN MCP1600-C01A-BL is a high-performance, passive Direct Attach Copper (DAC) cable designed for 100 Gigabit Ethernet and InfiniBand EDR applications. It is fully compatible with Mellanox MCP1600-C01A series and provides a cost-effective, low-latency interconnect solution for data centers and high-performance computing environments.

Advantages

This cable offers reliable, high-speed connectivity with minimal power consumption. Its passive design ensures zero power draw, while the 30 AWG construction provides flexibility and durability. The BlueLAN MCP1600-C01A-BL is hot-swappable and supports data rates up to 100 Gbps, making it ideal for demanding network infrastructures.

Suitable for

• Data Center Interconnects
• High-Performance Computing (HPC) Clusters
• Enterprise Networking
• Top-of-Rack to Server Connections

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Cable Type: Copper
• Connector Type: QSFP28 to QSFP28
• Data Rate: 100 Gbps
• Ethernet Standard: 100GBASE-CR4
• InfiniBand Standard: EDR (Enhanced Data Rate)
• Cable Length: 2 Meters
• Wire Gauge: 30 AWG
• Cable Design: Passive
• Compatibility: Mellanox (MCP1600-C01A)
• Hot-Swappable: Yes

Recommendations

For optimal performance, ensure your network equipment supports QSFP28 interfaces and 100GBASE-CR4 or InfiniBand EDR standards. This cable is an excellent choice for upgrading to 100G connectivity without the expense of active optical cables.
