BLUELAN QSFP-100G-CU5M-BL kompatibilný Cisco QSFP28 Direct Attach kábel, 100GBASE-CR4, Infiniband EDR, 26AWG, 5m

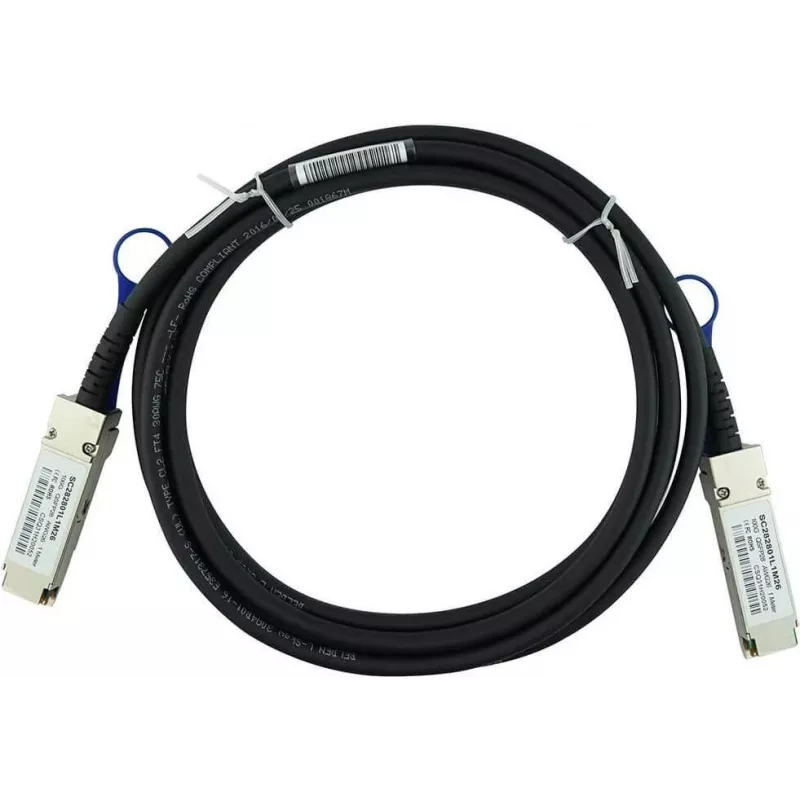

The BLUELAN QSFP-100G-CU5M-BL is a high-performance QSFP28 direct attach copper (DAC) cable designed for 100 Gigabit Ethernet and Infiniband EDR applications. It is fully compatible with Cisco QSFP-100G-CU5M and provides a cost-effective, low-power solution for short-range interconnects in data centers and high-performance computing environments.

Advantages

This passive copper cable offers reliable, low-latency connectivity at a fraction of the cost of active optical cables. With 26 AWG construction and 5-meter length, it is ideal for top-of-rack to server or switch connections. The cable is hot-swappable and supports 100GBASE-CR4 and Infiniband EDR protocols, ensuring broad compatibility.

Suitable for

• Data center interconnect
• High-performance computing (HPC) clusters
• Enterprise networking
• Cisco compatible switches and routers

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Connector Type: QSFP28 to QSFP28
• Data Rate: 100 Gigabit Ethernet (100GbE)
• Cable Length: 5 meters
• Cable Material: Copper Twinax
• Wire Gauge: 26 AWG
• Protocol Support: 100GBASE-CR4, Infiniband EDR
• Compatibility: Cisco QSFP-100G-CU5M Equivalent
• Form Factor: QSFP28
• Cable Construction: Passive
• Hot Swappable: Yes
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Power Consumption: < 0.5W per end
• Industry Standards: IEEE 802.3bj, SFF-8665
• Certifications: RoHS, CE, FCC

Recommendations

For optimal performance, ensure your network equipment supports QSFP28 modules and 100GBASE-CR4. This cable is a direct replacement for Cisco QSFP-100G-CU5M and is backed by BLUELAN's quality guarantee.
