BlueOptics Dell GJWT4NE BlueLAN pasívny 40GBASE-CR4 QSFP na 4x10GBASE-CR SFP+ Direct Attach Breakout kábel, 5 metrov

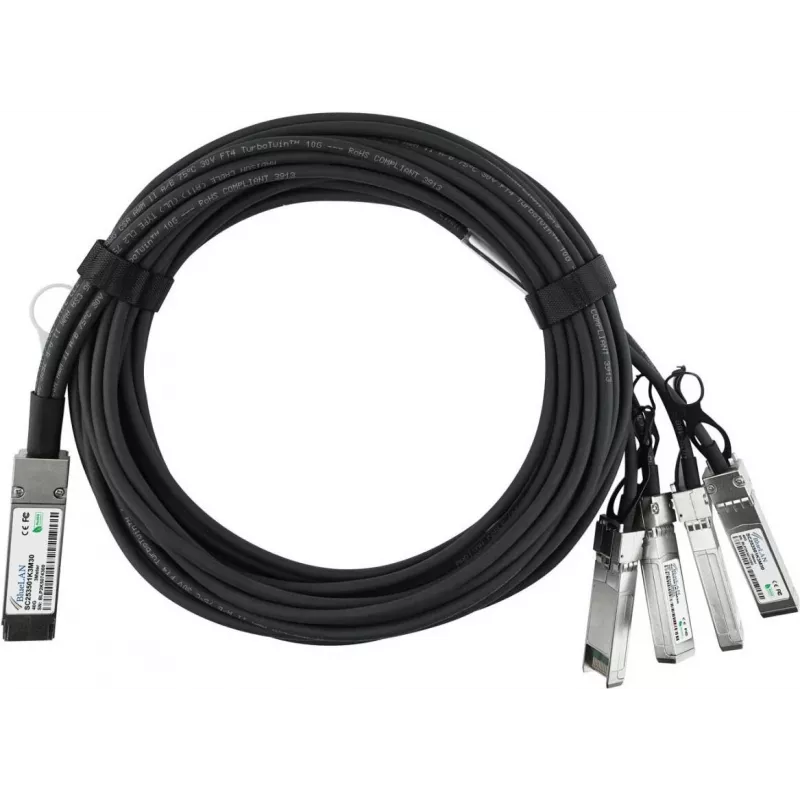

The BlueOptics Dell GJWT4NE BlueLAN passive 40GBASE-CR4 QSFP to 4x10GBASE-CR SFP+ direct attach breakout cable is a high-performance, cost-effective solution for data center and enterprise network connectivity. This 5-meter breakout cable enables a single QSFP port to connect to four SFP+ ports, providing seamless 40G to 4x10G aggregation. Designed as a passive copper direct attach cable (DAC), it offers ultra-low power consumption and reliable signal integrity for short-range interconnects.

Advantages

This breakout cable simplifies network cabling by replacing four separate 10G cables and transceivers with a single, integrated solution. Its passive design ensures zero power consumption, reducing overall energy costs. The cable is hot-swappable and fully compatible with Dell GJWT4NE equipment, making it an ideal choice for upgrading or expanding network infrastructure without complexity.

Suitable for

• Data center top-of-rack (ToR) to server connections
• 40G to 4x10G breakout applications in enterprise networks
• Network storage and high-performance computing environments
• Interconnecting switches, routers, and servers within a rack

Key specifications

• Cable Type: Direct Attach Cable (DAC) - Breakout
• Connector A: QSFP (40GBASE-CR4)
• Connector B: 4x SFP+ (10GBASE-CR)
• Data Rate: Aggregate 40 Gbps (4 x 10 Gbps per lane)
• Length: 5 Meters
• Technology: Passive Copper
• Compatibility: Dell GJWT4NE equivalent
• Hot-Swappable: Yes
• Power Consumption: Very Low (Passive)
• RoHS Compliant: Yes

Recommendations

For optimal performance, ensure that both the QSFP and SFP+ ports are compatible with 40GBASE-CR4 and 10GBASE-CR standards respectively. This cable is ideal for short-distance connections within a rack or between adjacent racks. Always handle the cable with care to avoid damage to the connectors.
