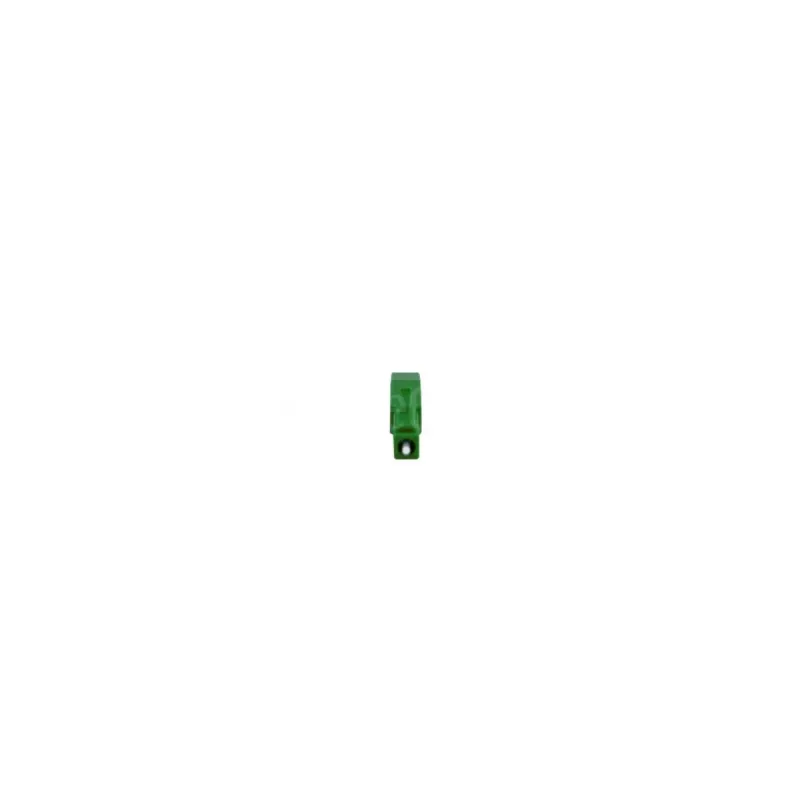

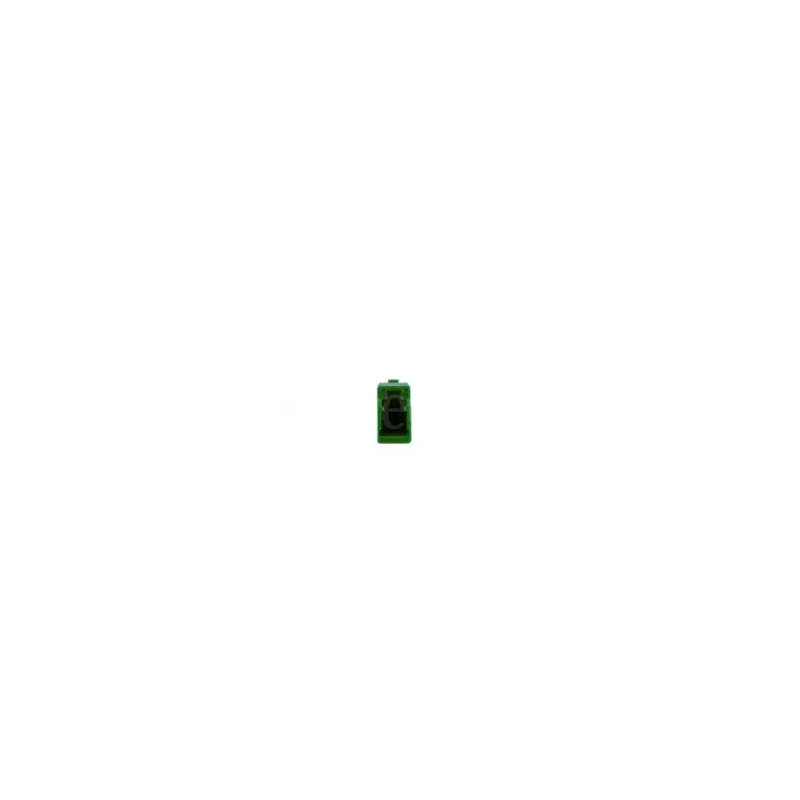

BlueOptics optický atenuátor singlemode LC/APC simplex 11dB

The BlueOptics SFA21BM11 is a high-quality fixed fiber optic attenuator designed for Singlemode (SM) networks. It provides precise 11 dB attenuation with LC/APC connectors in a simplex configuration, ensuring reliable signal reduction in telecommunications, data centers, FTTx, LAN, and WAN applications.

Advantages

This attenuator offers excellent return loss (≥60 dB) and low polarization dependent loss (≤0.2 dB), ensuring minimal signal reflection and stable performance. Its metal housing provides durability for over 500 mating cycles, and it operates reliably across a wide temperature range (-40°C to +85°C).

Suitable for

• Telecommunications networks
• Data centers
• FTTx installations
• Local Area Networks (LAN)
• Wide Area Networks (WAN)

Key specifications

• Attenuation: 11 dB (±0.5 dB)
• Fiber mode: Singlemode (SM)
• Connector type: LC/APC (Male-Female)
• Polish: APC (Angled Physical Contact)
• Fiber configuration: Simplex
• Wavelength range: 1260 nm - 1620 nm
• Return loss: ≥60 dB
• Polarization dependent loss: ≤0.2 dB
• Insertion loss (additional): <0.2 dB
• Durability: >500 mating cycles
• Housing material: Metal
• Operating temperature: -40°C to +85°C
• Storage temperature: -40°C to +85°C
• Compliance: RoHS, REACH
• Standards: IEC 61754-20, TIA/EIA-604-10

Recommendations

For optimal performance, ensure clean and proper mating of LC/APC connectors. This attenuator is ideal for balancing signal levels in high-speed optical networks.
