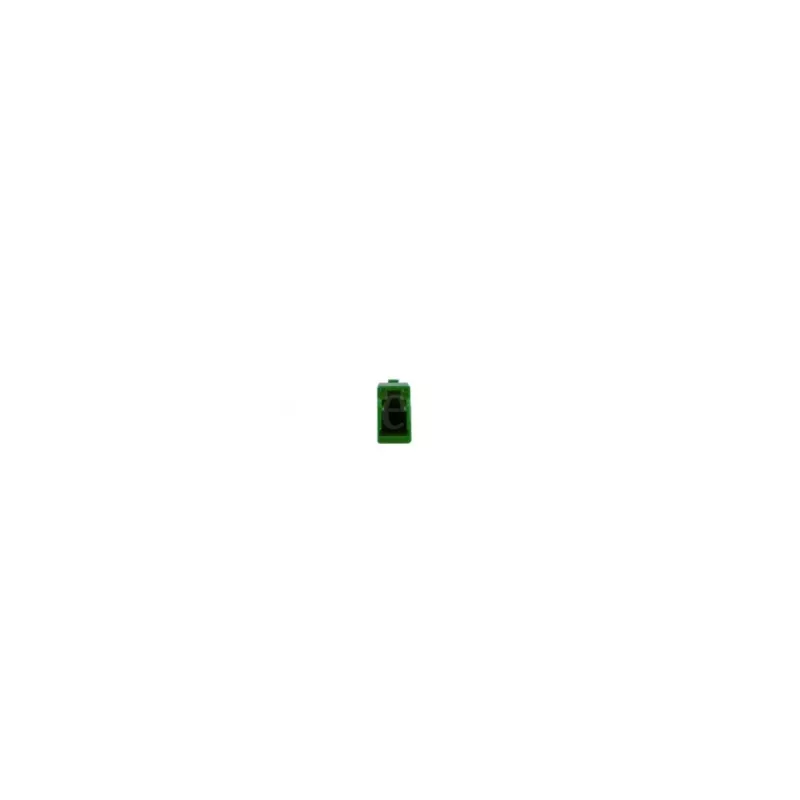

BlueOptics singlemode LC/APC simplex optický atenuátor 3dB

BlueOptics singlemode LC/APC simplex optický atenuátor 3dB
BlueOptics singlemode LC/APC simplex optický atenuátor 3dB
BlueOptics singlemode LC/APC simplex optický atenuátor 3dB
BlueOptics singlemode LC/APC simplex optický atenuátor 3dB
60 mes.
BlueOptics singlemode LC/APC simplex optický atenuátor 3dB
BlueOptics singlemode LC/APC simplex optický atenuátor 3dB
BlueOptics singlemode LC/APC simplex optický atenuátor 3dB
BlueOptics singlemode LC/APC simplex optický atenuátor 3dB
44,05 €
PDF
PDF
Sklad 50 Kód 2897051 Model SFA21BM3 Záruka 5 rokov

Doprava a vrátenie tovaru

Predpokladané doručenie pondelok 7. decembra
O stave zásielky Vás budeme priebežne informovať prostredníctvom nášho podrobného systému sledovania zásielok
Možnosti platby
Platobná kartaVisaMastercardPayPalApple PayGoogle PayBankový prevod

Položte otázku – AI asistent odpovie hneď.

Popis

The BlueOptics SFA21BM3 is a high-quality singlemode fiber optic attenuator designed to reduce optical power in fiber optic networks. With a precise attenuation of 3 dB and LC/APC connectors in a simplex configuration, this attenuator ensures reliable signal management for data centers, telecommunications, and FTTx applications.

Advantages

This attenuator offers excellent return loss (≥60 dB) and low polarization dependent loss (<0.2 dB), ensuring minimal signal reflection and distortion. Its durable metal alloy housing and zirconia ceramic ferrule provide over 500 mating cycles, making it a long-lasting solution for network optimization.

Suitable for

  • Data centers requiring precise power leveling
  • Telecommunications networks
  • FTTx (Fiber to the x) installations
  • Testing and measurement setups

Key specifications

  • Fiber mode: Singlemode (SM)
  • Connector type: LC/APC
  • Configuration: Simplex
  • Attenuation: 3 dB (±0.5 dB)
  • Wavelength range: 1260 nm - 1620 nm
  • Return loss: ≥60 dB
  • PDL: <0.2 dB
  • Max optical power: 200 mW (23 dBm)
  • Operating temperature: -40°C to +85°C
  • Storage temperature: -40°C to +85°C
  • Durability: >500 mating cycles
  • Ferrule material: Zirconia ceramic
  • Housing material: Metal alloy
  • Compliance: RoHS, IEC 61754-20, IEC 61300-3-4

Recommendations

For optimal performance, use this attenuator in conjunction with high-quality LC/APC patch cables and ensure proper cleaning of connectors before installation. Ideal for reducing signal strength in high-power applications.

Parametre

Parametre
Certifikáty zhody
RoHS, IEC 61754-20, IEC 61300-3-4
EAN
4063232044750
Kategória
Optický atenuátor
Konektor(y)
LC/APC
Model
SFA21BM3
MPN
SFA21BM3
Rozsah teplôt (T-T)
-40°C to +85°C
Útlm
3 dB
Značka
BlueOptics
