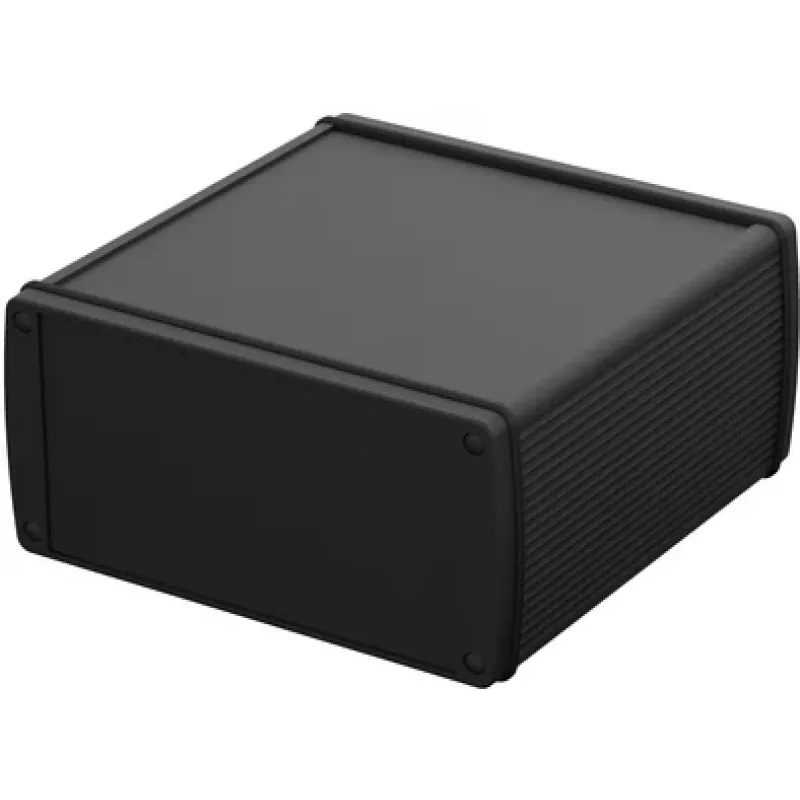

Bopla ABPH 1680-150 univerzálne hliníkové puzdro 150 x 169 x 82 mm, čierna 84686150.H

For electronics integrators and panel builders who need a rugged housing for control electronics, sensors, or interface modules, the Bopla ABPH 1680-150 universal enclosure offers a solid aluminium body with a black powder-coated finish. Its 150 x 169 x 82 mm profile accepts PCBs or mounting plates in integrated grooves, and the screwed end covers with gaskets keep out dust and moisture.

Key specifications

• Material: Aluminium (AlMgSi 0.5)
• Colour: Black (RAL 9005)
• External dimensions: 150 mm (L) x 169 mm (W) x 82 mm (H)
• Protection class: IP 65
• Operating temperature: -40 to +100 °C
• Surface finish: Powder-coated
• Lid type: Two end covers, screwed
• Internal mounting: Integrated grooves for PCBs/mounting plates
• EMC shielding: Good inherent shielding due to aluminium construction
• Mounting options: Desktop, wall-mount, DIN rail (with accessories)
• Series: ABPH
• Included components: Enclosure profile, 2 end covers, sealing gaskets, screws

Why choose it

The extruded aluminium profile gives the enclosure natural electromagnetic shielding, while the powder coating provides a durable, scratch-resistant surface. The IP 65 rating means the enclosure is protected against dust and low-pressure water jets, making it suitable for both indoor and outdoor use. The integrated grooves simplify PCB mounting without additional brackets.

Ideal use cases

• Industrial control units and sensor housings
• Interface and connection boxes in harsh environments
• Outdoor electronics requiring weatherproofing
• Custom instrumentation panels

Good to know

The enclosure includes the profile, two end covers, sealing gaskets, and screws. Mounting accessories such as wall brackets or DIN rail clips are available separately. The aluminium alloy AlMgSi 0.5 offers a good balance of strength and machinability.
