Bopla BoPad balenie displeja s Raspberry Pi 4 B 8GB, 10,1-palcový dotykový displej, 1,5 GHz Quad-Core 4064161328140

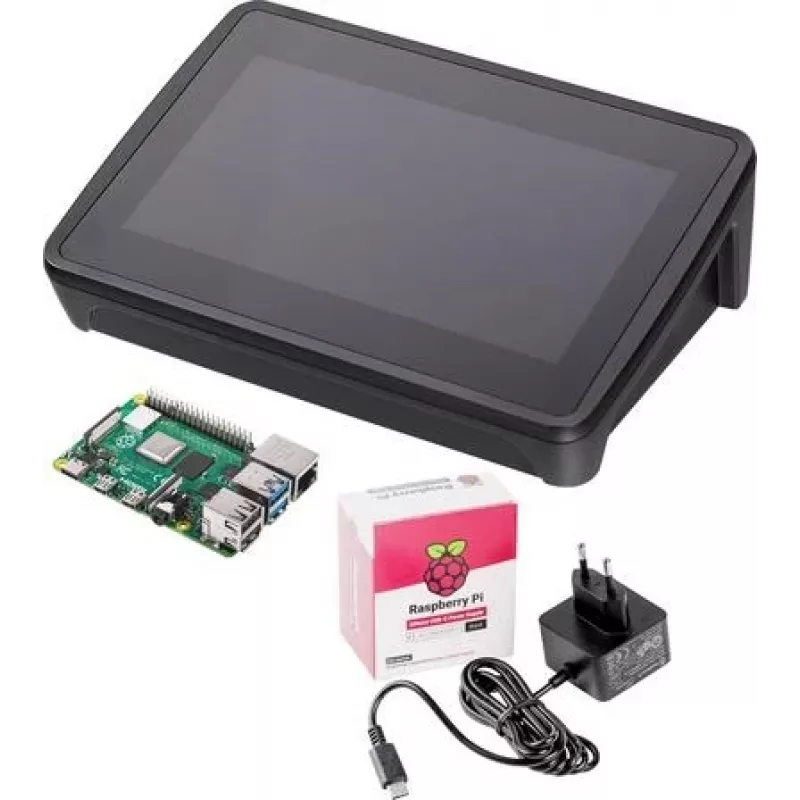

Industrial automation engineers and HMI developers use the Bopla BoPad Display Bundle to deploy interactive control panels and monitoring stations. It combines a Raspberry Pi 4 Model B with 8 GB RAM and an integrated 10.1-inch capacitive touchscreen in a robust PC-ABS enclosure.

Key specifications

• Processor: Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC at 1.5 GHz
• Memory: 8 GB LPDDR4-3200 SDRAM
• Integrated display: 10.1-inch TFT LCD, 1280 x 800 pixels, capacitive multi-touch
• Connectivity: dual-band 802.11ac Wi-Fi, Bluetooth 5.0 BLE, Gigabit Ethernet
• Ports: 2x USB 3.0, 2x USB 2.0, 2x Micro HDMI (up to 4Kp60), 40-pin GPIO, MicroSD slot
• Power: 5V DC via USB-C, minimum 3A
• Enclosure material: PC-ABS plastic

Why choose it

The bundle provides a ready-to-use platform for human-machine interface applications. The large 10.1-inch touchscreen with 1280 x 800 resolution offers clear visualisation, while the quad-core processor and 8 GB RAM handle demanding tasks. The enclosure protects the electronics in industrial environments.

Ideal use cases

• Human-Machine Interface (HMI) panels for machine control
• Industrial IoT gateways and data visualisation
• Embedded systems prototyping and development

Good to know

The system is compatible with Raspberry Pi OS, Ubuntu, and other Linux distributions. It requires a USB-C power supply capable of delivering at least 3A at 5V.
