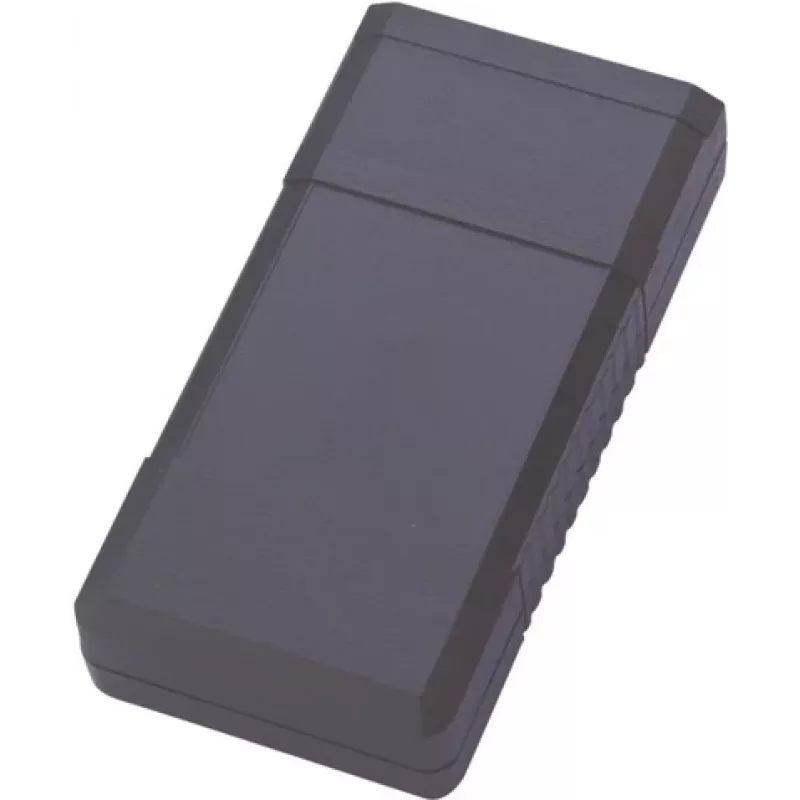

Bopla BOS 502 ručné puzdro 120 x 60 x 25 mm ABS čierna 34502000

Handheld enclosure in the BOS series, offering a robust ABS housing with integrated PCB mounting bosses for secure electronics assembly. The ergonomic design includes a recessed area for membrane keypads or displays, making it suitable for portable measurement and control devices.

Advantages

ABS material provides impact resistance and a smooth surface finish. The enclosure consists of two screw-together halves, simplifying assembly and maintenance. Four self-tapping screws are included for closure.

Suitable for

• Portable electronic devices
• Measurement and control technology
• Handheld instruments with membrane keypads

Key specifications

• External dimensions: 120 mm (L) x 60 mm (W) x 25 mm (H)
• Material: ABS (UL 94 HB)
• Color: Black
• Protection class: IP40
• Operating temperature: -20 to +80 °C
• RoHS compliant

Recommendations

Ideal for prototyping and small series production where a reliable, ergonomic handheld enclosure is required. Verify internal dimensions for PCB fitment before design finalization.
