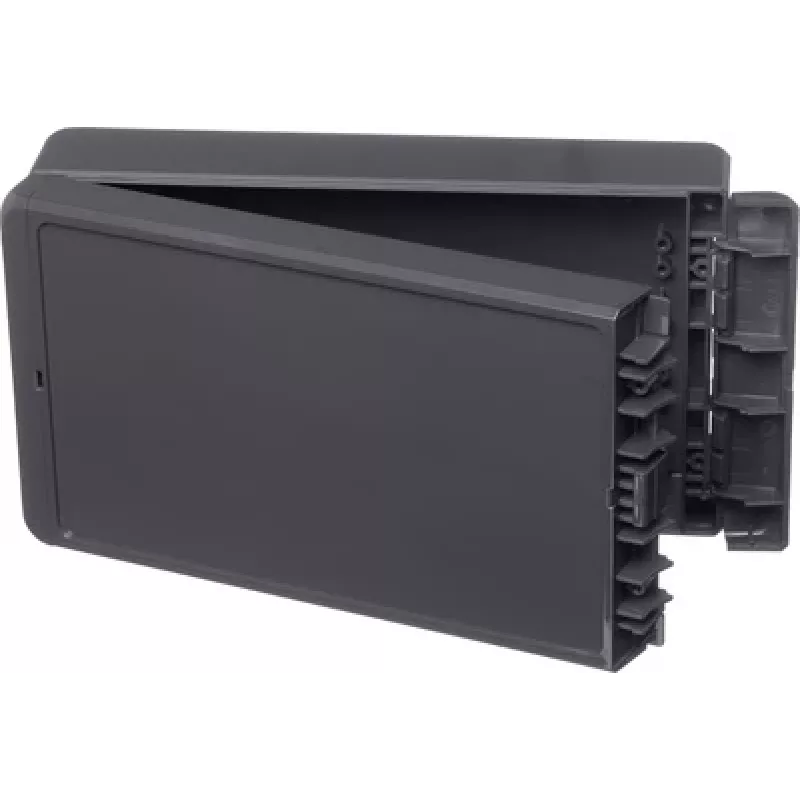

BOPLA CombiNorm-Connect nástenné puzdro, polykarbonát, grafitovosivá RAL 7024, 231 x 125 x 60 mm 96015224

Wall-mount enclosure made of polycarbonate in graphite grey (RAL 7024), offering robust protection for electrical and electronic components. Its integrated mounting bosses simplify installation of PCBs and mounting plates.

Advantages

Polycarbonate housing with high impact resistance (IK08) and UV resistance, suitable for demanding environments. The silicone gasket ensures reliable sealing, and the stainless steel lid screws provide corrosion-resistant fastening.

Suitable for

• Industrial control systems
• Building automation
• Outdoor electrical installations
• Custom electronics projects

Key specifications

• Material: Polycarbonate (PC)
• Colour: Graphite grey (RAL 7024)
• External dimensions (W x H x D): 231 x 125 x 60 mm
• Protection class: IP65
• Flammability rating: UL 94 V-0
• Operating temperature: -40 to +100 °C
• Mounting type: Wall mounting
• Lid type: Opaque
• Lid fastening: Stainless steel screws
• Gasket material: Silicone
• Impact resistance: IK08
• Recessed area for membrane keypads or labels

Recommendations

Pair with compatible cable glands and mounting accessories for a complete installation. Verify internal dimensions for your specific components.
