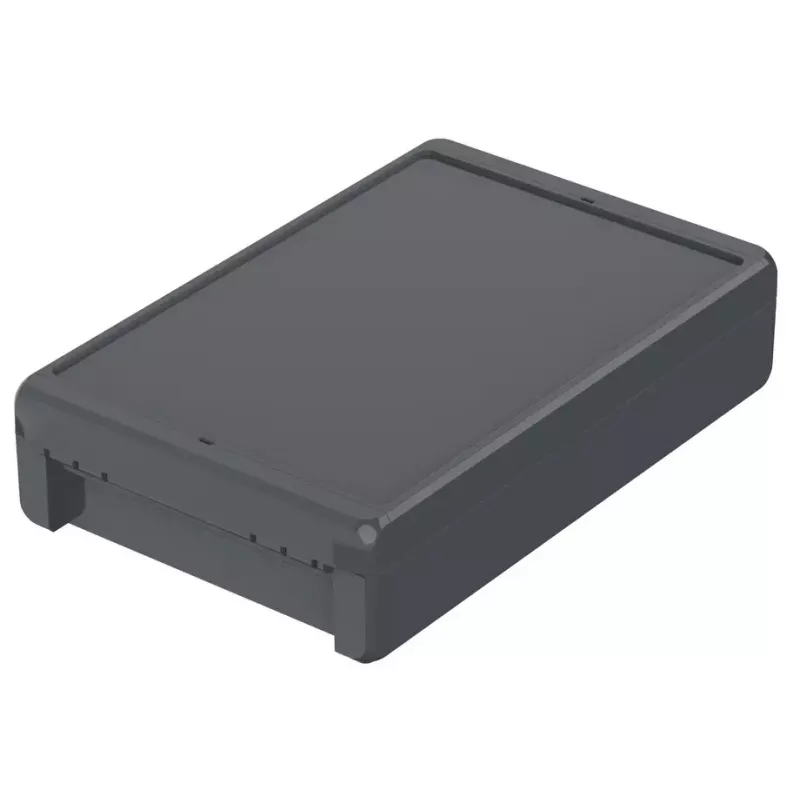

BOPLA Euromas II ABS nástenné puzdro, grafitovosivá (RAL 7024), 170 x 271 x 60 mm, IP65 96036324

Protect electrical and electronic components in harsh environments with the BOPLA Euromas II wall-mount enclosure. Its robust ABS construction and IP65 sealing guard against dust and water, making it ideal for industrial control, junction boxes, and outdoor installations.

Who is it for

Engineers, electricians, and system integrators who need a reliable, weatherproof housing for PCBs, terminals, or small devices in factories, outdoor sites, or demanding commercial settings.

Main features

• Graphite grey ABS body (RAL 7024) with high impact resistance (IK07)
• IP65 protection against dust and low-pressure water jets
• External dimensions: 170 mm width x 271 mm length x 60 mm depth
• Integrated mounting bosses for easy PCB or plate installation
• Stainless steel lid screws for corrosion resistance
• Polyurethane gasket ensures a tight seal
• Operating temperature range: -40°C to +80°C

Specifications

• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Graphite Grey (RAL 7024)
• Protection class: IP65
• Impact resistance: IK07
• Flammability rating: UL 94 HB
• Gasket material: Polyurethane (PU)
• Mounting type: Wall-mount
• Series: Euromas II

Tips

For outdoor use, ensure cable glands are properly sealed to maintain the IP65 rating. The enclosure can be painted or labelled for custom identification.
