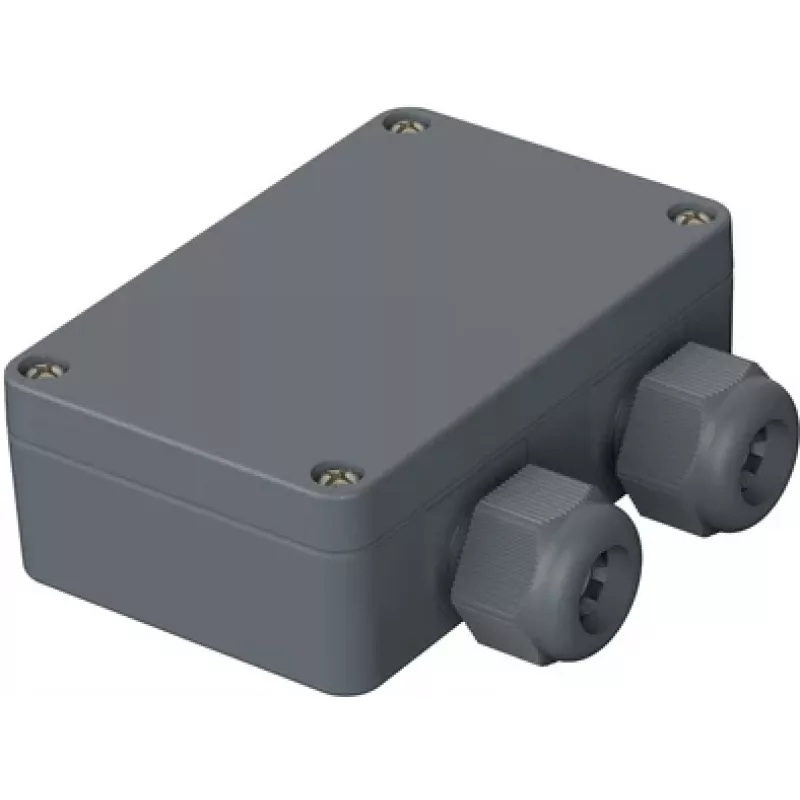

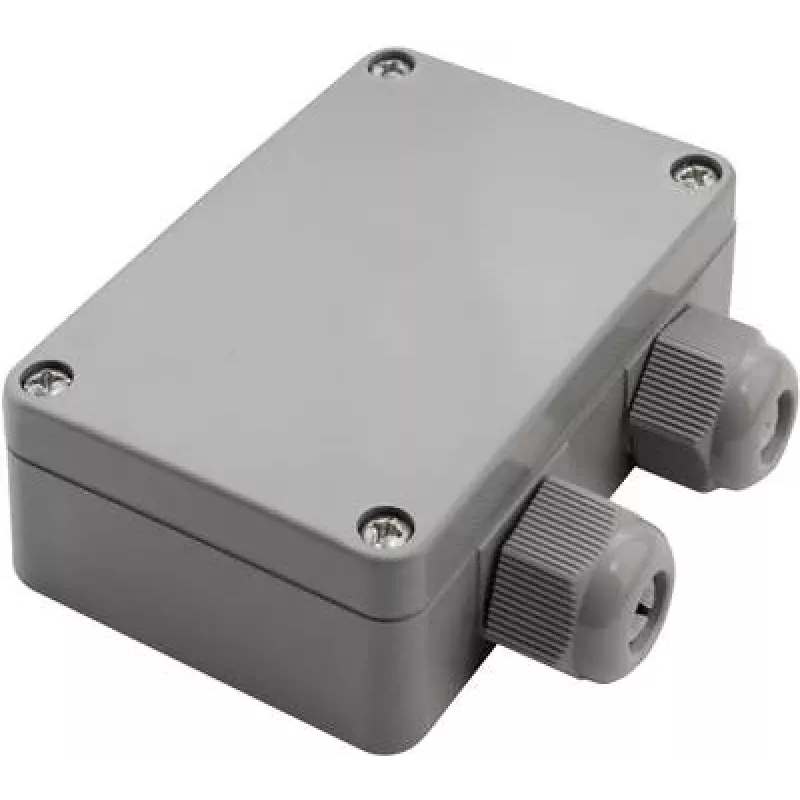

Bopla univerzálne puzdro 98 x 64 x 34 mm polyamid striebornosivá (RAL 7001) PK 102-211 38102200

This Bopla universal enclosure stands out for its compact dimensions and robust polyamide construction, offering a reliable housing solution for a wide range of electronic and electrical applications. The silver grey finish (RAL 7001) provides a professional appearance suitable for both industrial and commercial settings.

Highlights

• External dimensions: 98 x 64 x 34 mm
• Material: Polyamide (PA)
• Colour: Silver Grey (RAL 7001)
• Protection class: IP65
• Flammability rating: UL 94 V-2
• Operating temperature range: -40°C to +80°C
• Gasket material: Polyurethane (PUR)
• Lid fastening: Screw-on lid with stainless steel screws
• Impact resistance: IK07
• Mounting type: Wall/Surface mount
• Halogen-free: Yes

In daily use

The enclosure's screw-on lid with stainless steel screws ensures secure closure, while the polyurethane gasket provides a reliable seal against dust and moisture. Its compact size makes it ideal for housing small electronic components, sensors, or control modules in demanding environments.

Full specifications

• Product type: Universal enclosure
• Material: Polyamide (PA)
• Colour: Silver Grey (RAL 7001)
• External dimensions: 98 mm (L) x 64 mm (W) x 34 mm (H)
• Protection class: IP65
• Flammability rating: UL 94 V-2
• Operating temperature range: -40°C to +80°C
• Gasket material: Polyurethane (PUR)
• Lid fastening: Screw-on lid
• Lid screw material: Stainless steel
• Impact resistance: IK07
• Mounting type: Wall/Surface mount
• Halogen-free: Yes
• UV resistance: Good
• Chemical resistance: Good

Final note

With its durable construction and versatile mounting options, this Bopla enclosure is a practical choice for protecting sensitive electronics in challenging conditions.
