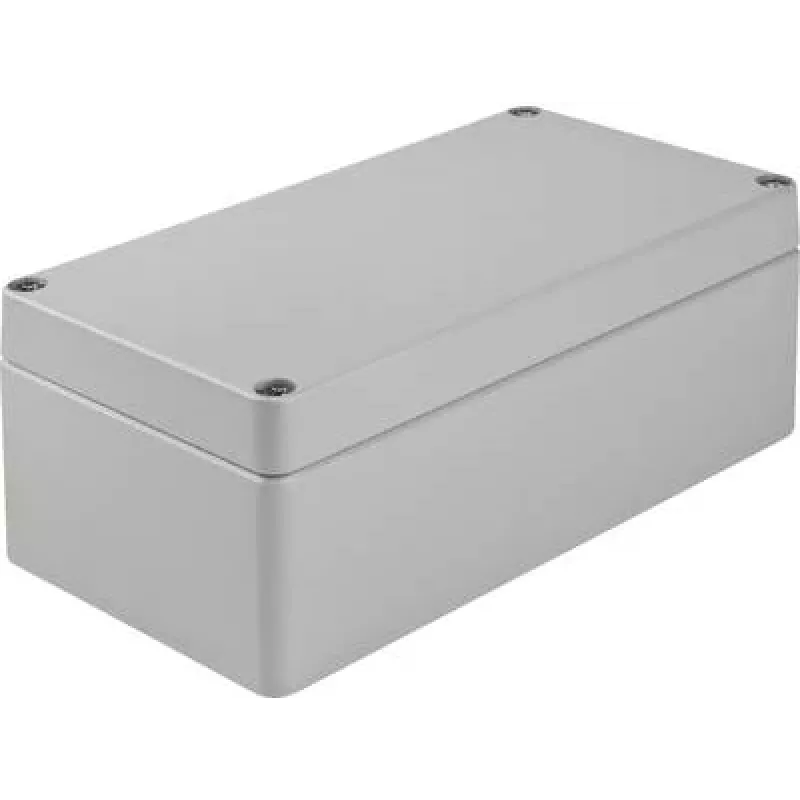

BOPLA univerzálne puzdro hliník striebornosivá (RAL 7001) 220 x 120 x 81 A 122 01122000.MT1

The BOPLA 01122000.MT1 stands out with its die-cast aluminium construction and silver-grey powder coating, offering a robust platform for electronics in demanding environments. Its 220 x 120 x 81 mm footprint provides ample space for DIN rail or PCB mounting via integrated bosses, while the neoprene gasket and stainless steel lid screws ensure a secure seal.

Highlights

• Die-cast aluminium (AlSi12) body with powder-coated finish
• External dimensions: 220 mm (L) x 120 mm (W) x 81 mm (H)
• IP66 protection against dust and water ingress
• Impact resistance rated IK08 for mechanical durability
• Operating temperature range: -40°C to +100°C

In daily use

This universal enclosure is suited for industrial control, junction, and electrical applications where reliability is critical. The solid lid is fastened with four stainless steel screws, and the integrated mounting channels allow surface mounting without additional brackets. The silver-grey RAL 7001 colour blends into most equipment environments.

Full specifications

• Material: Die-cast Aluminium (AlSi12)
• Colour: Silver-Grey (RAL 7001)
• External dimensions: 220 x 120 x 81 mm
• IP rating: IP66
• Impact resistance: IK08
• Operating temperature: -40°C to +100°C
• Lid fastening: 4x stainless steel screws
• Gasket material: Neoprene
• Surface finish: Powder coated
• Mounting: Surface mount via integrated channels
• Internal mounting: Integrated bosses for PCB/DIN rail

Final note

A reliable aluminium enclosure for demanding industrial applications, offering high protection and easy integration.
