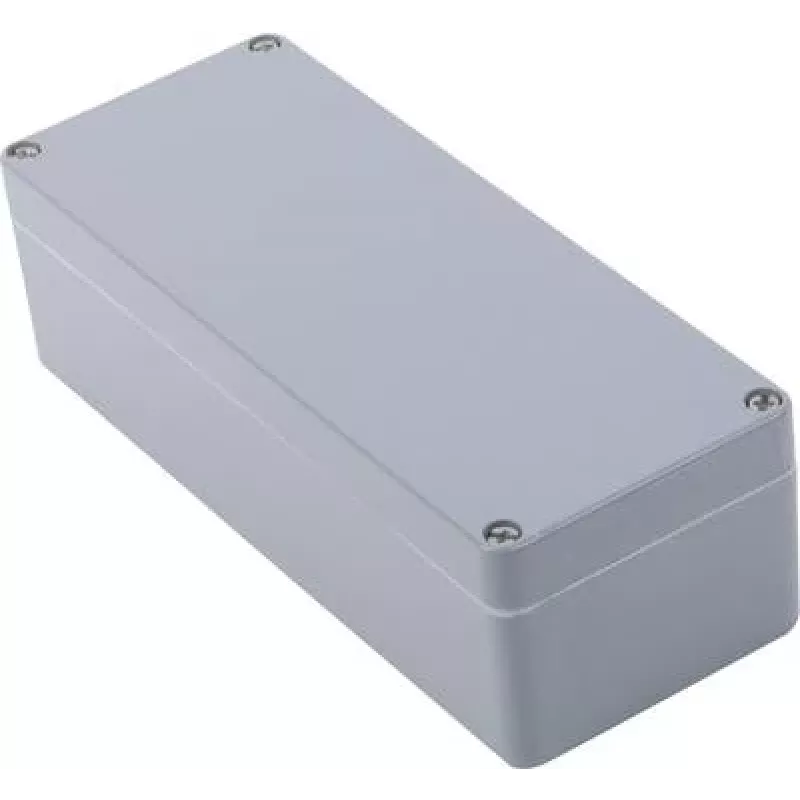

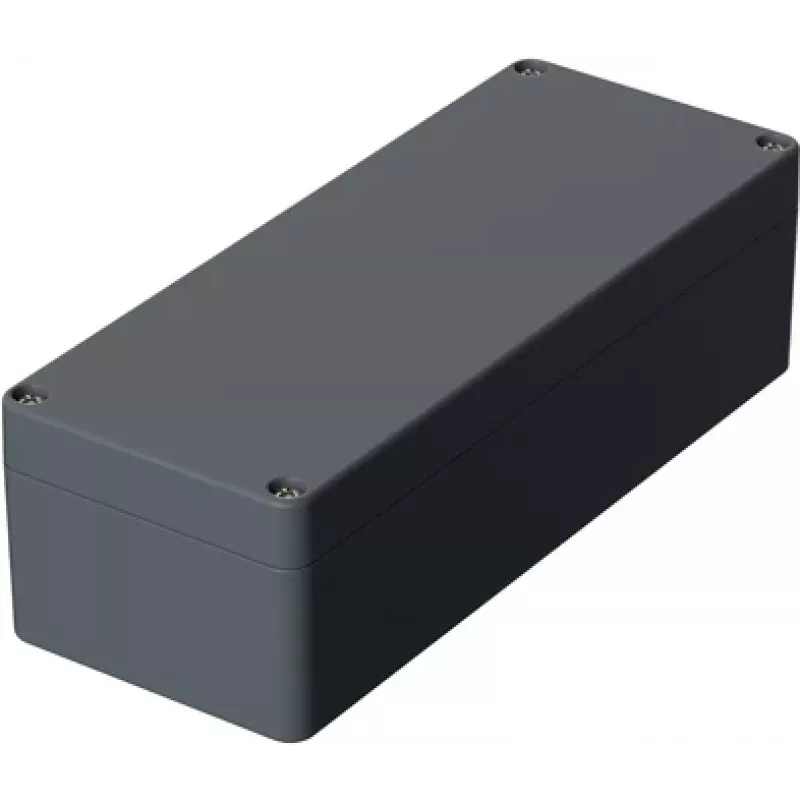

BOPLA univerzálne puzdro polyester striebornosivá (RAL 7001) 190 x 75 x 56,5 mm P 319 04319000.MTC

This BOPLA universal enclosure is used by electrical engineers and panel builders who need a robust, weather-resistant housing for industrial electronics, sensors, or DIN-rail components. The glass fibre reinforced polyester body provides high mechanical strength and corrosion resistance, making it suitable for both indoor and outdoor installations.

Key specifications

• External dimensions: 190 x 75 x 56.5 mm
• Material: glass fibre reinforced polyester
• Colour: silver grey (RAL 7001)
• Ingress protection: IP65
• Impact resistance: IK08
• Operating temperature range: -40°C to +100°C
• Flammability rating: UL 94 V-0
• Lid fastening: stainless steel screws
• Gasket material: polyurethane (PUR)
• Internal mounting bosses for DIN rails or mounting plates

Why choose it

The enclosure combines a solid lid with a polyurethane gasket to maintain a reliable seal against dust and water jets. Its UV resistance and chemical resistance to oils, greases, acids, and alkalis extend service life in harsh environments.

Ideal use cases

• Industrial control units
• Outdoor sensor housings
• Junction boxes for machinery
• DIN-rail mounted electronics

Good to know

The enclosure is supplied as a single piece. Mounting bosses are integrated for easy installation of internal components.
