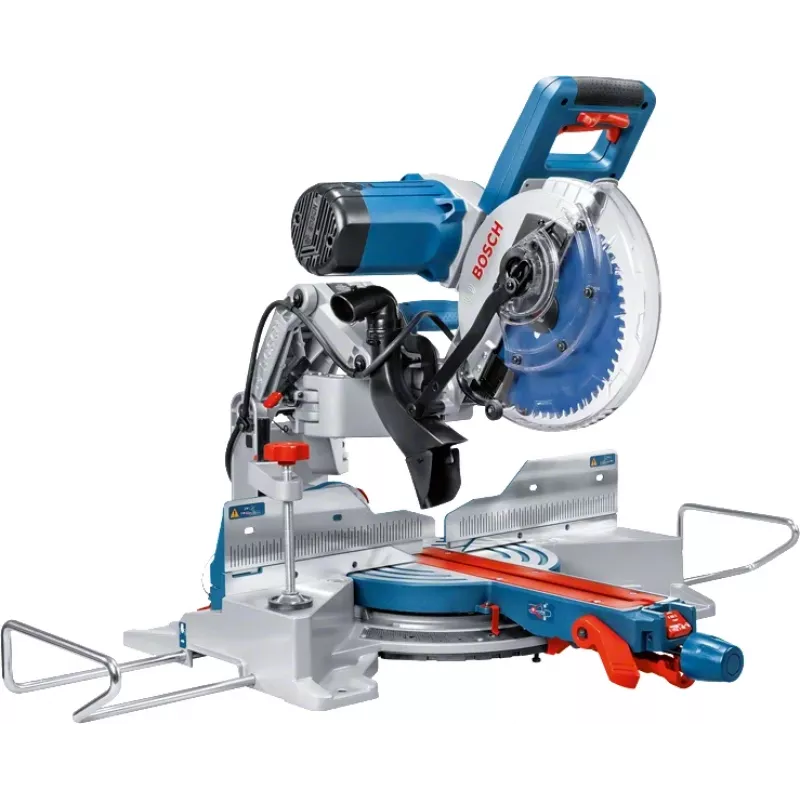

Bosch GCM 10 GDJ 5000 RPM 2000 W

The Bosch GCM 10 GDJ is a cross-cut power saw designed for precise and efficient straight and mitre cuts. Equipped with a brushless motor and a 2000 W input power rating, the saw delivers consistent cutting performance across a range of materials. The tool features a single-bevel head with mitre settings that tilt up to 47° left and right and accepts a 254 mm blade with a 30 mm bore. Its compact footprint and stable base provide a practical balance between portability and worksite stability.

Advantages

The brushless motor reduces maintenance needs while improving energy efficiency and runtime stability at the rated maximum no-load speed of 5000 RPM. The single-bevel mechanism with wide mitre range supports accurate angled cuts without complex adjustments. A robust 2000 W input power provides sufficient torque for demanding cutting operations, and the 254 mm blade diameter offers compatibility with commonly available blades for wood and similar materials. The saw’s physical dimensions allow it to fit into many workshop environments while remaining stable during operation.

Suitable for

• Cross-cutting lumber and boards
• Making mitred joints for trim and moulding
• Cutting sheet goods and panels to length
• Workshop and site carpentry tasks requiring repeatable angled cuts

Key specifications

• Motor type: brushless
• Input power: 2000 W
• Maximum no-load speed: 5000 RPM
• Blade diameter: 254 mm
• Blade bore: 30 mm
• Bevel/mitre capability: single bevel, 47° left and right
• Dimensions (W × D × H): 673 × 813 × 521 mm

How to use

Install a blade compatible with a 254 mm diameter and 30 mm bore following the manufacturer’s blade-change instructions. Secure the workpiece on the saw table and set the required mitre angle using the bevel adjustment up to 47° left or right; lock the angle before cutting. Start the saw, allow the motor to reach its operating speed, and perform steady feed cuts without forcing the material. Use appropriate blade selection and feed rate according to the material being cut to achieve clean edges and extend blade life.

Recommendations

Always wear appropriate personal protective equipment including eye and hearing protection. Use a dust extraction system where possible to reduce airborne particles and maintain the saw according to the manufacturer’s instructions. Choose the correct blade type for the material, check blade condition regularly, and avoid excessive lateral force to preserve machine accuracy and safety.
