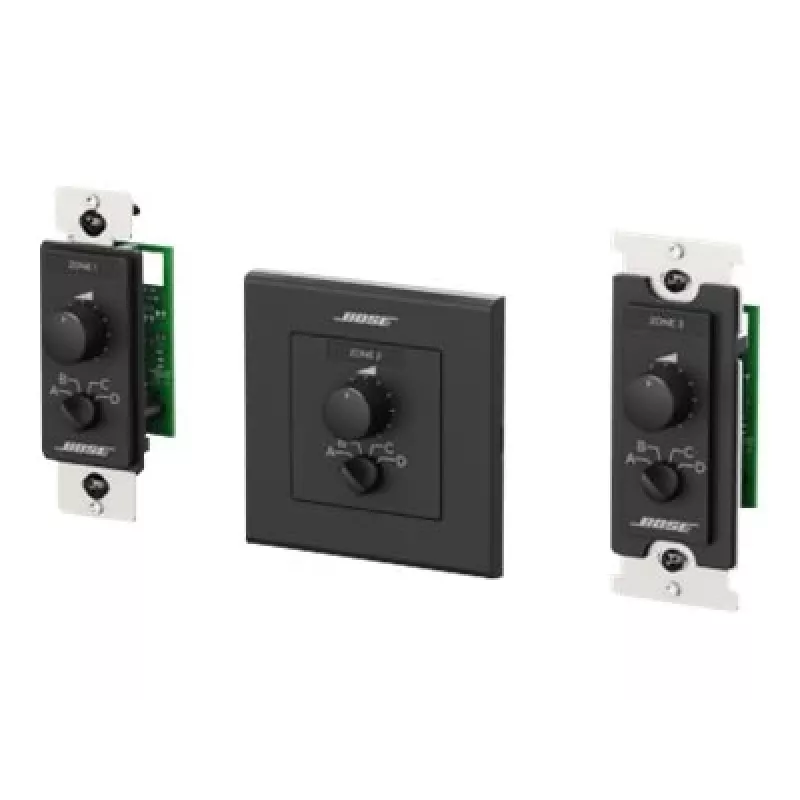

Bose ControlCenter CC-3 prepínač zdrojov / regulátor hlasitosti

The Bose ControlCenter CC-3 is a wall-mounted remote control designed for use with compatible Bose FreeSpace amplifiers. It provides intuitive source selection and volume adjustment for commercial audio systems, enabling convenient zone control in restaurants, retail spaces, and offices.

Advantages

Easy to install and operate, the CC-3 offers a clean, professional look with a rotary volume knob and a 3-position source selector. It is powered directly via Cat 5 cable from the amplifier, eliminating the need for separate power supplies. The unit includes three source status LEDs for clear visual feedback.

Suitable for

• Commercial audio installations requiring remote zone control
• Integration with Bose FreeSpace ZA 2120-LZ, ZA 2120-HZ, IZA 250-LZ, and IZA 190-HZ amplifiers
• Wall-mount applications using a standard single-gang electrical box

Key specifications

• Control Functions: Rotary Volume, 3-Position Source Selection
• Connectivity: RJ-45 for shielded Cat 5 cable (max 152 m)
• Indicators: 3x Source Status LEDs (A, B, C)
• Mounting: Single-gang electrical box
• Enclosure Material: High-impact plastic
• Color: White
• Operating Temperature: 0°C to 50°C
• Certifications: CE, UL, cUL

Recommendations

For optimal performance, use shielded Cat 5 cable or better. Ensure the host amplifier is compatible and powered on. The CC-3 is designed for indoor use only.
