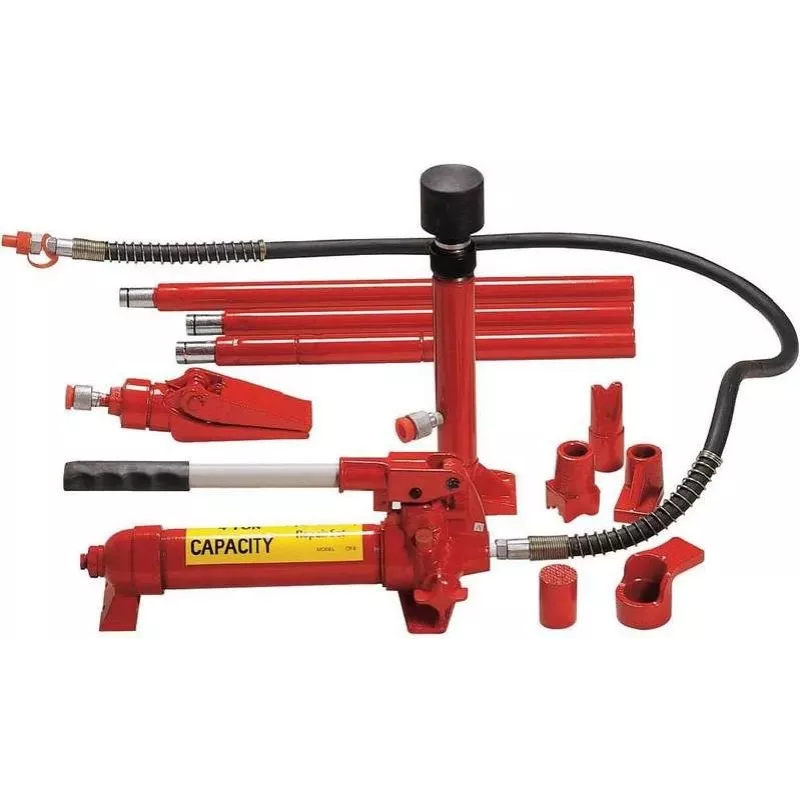

BRÜDER MANNESMANN hydraulická súprava na opravu karosérie 10 t, 16-dielna (094-T-10)

For automotive body shops and serious DIY mechanics tackling dented panels, this hydraulic body repair kit delivers 10 t of pressing force to straighten, spread, and press metal back into shape. The manual pump drives a 130 mm stroke ram, with extension rods up to 650 mm to reach deep into chassis and bodywork. Quick-connect fittings let you switch between the included spreader, rubber head, wedge head, V-base, and flat base without tools. The overload safety valve protects the pump and ram from damage during heavy pulls. All 16 pieces pack into a blow-molded plastic case for transport and storage. CE compliant.

Key specifications

• Max. pressing force: 10 t (10,000 kg)
• Ram stroke length: 130 mm
• Min. ram height: 390 mm
• Hydraulic hose length: 1.5 m
• Extension rods: 125 mm, 250 mm, 450 mm, 650 mm
• Pump type: Manual hydraulic
• Main material: High-strength steel
• Case material: Blow-molded plastic

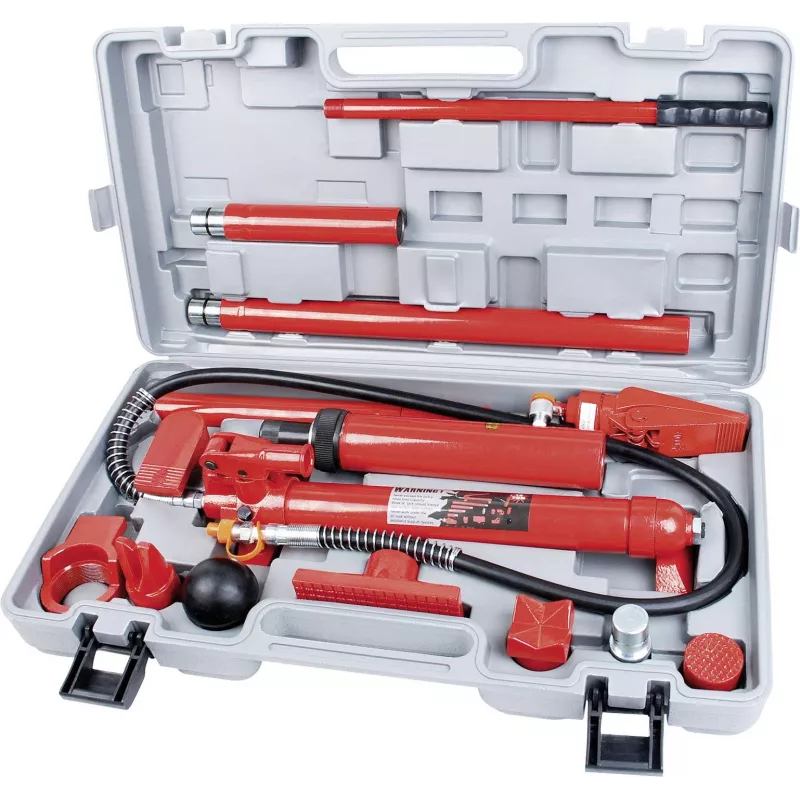

• Number of pieces: 16
• Included attachments: Spreader, rubber head, wedge head, V-base, flat base, various connectors
• Connection type: Quick-connect hydraulic fittings
• Safety feature: Overload safety valve
• Certification: CE compliant

Why choose it

The 10-tonne capacity handles most passenger car and light truck body repairs, from door skins to frame rails. The four extension rods give you reach and flexibility for awkward spots, and the quick-connect system speeds up attachment changes. The overload valve prevents over-pressurisation, extending the life of the kit.

Ideal use cases

• Straightening bent chassis members and body panels
• Removing dents from doors, fenders, and quarter panels
• Spreading and pressing components during restoration work
• Pushing out damaged suspension or frame sections

Good to know

This kit is manually operated, so no external power source is needed. The blow-molded case keeps all 16 pieces organised and protected. The CE mark confirms compliance with European safety standards.
