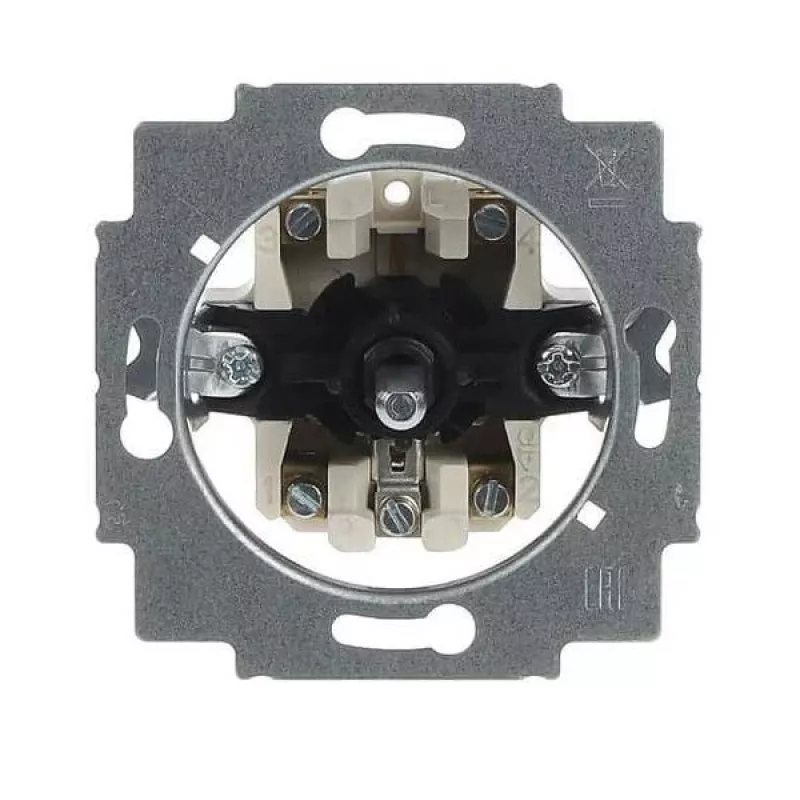

BUSCH-JAEGER 2713 U otočný spínač 1-pólový kov 230 V 10 A 71 mm

The BUSCH-JAEGER 2713 U is a high-quality rotary switch designed for reliable ON/OFF control in electrical installations. With a 1-pole configuration, it handles up to 10 AX at 250 V AC, making it suitable for lighting and small appliance circuits. The metallic finish provides a modern look, while the flush-mounted design ensures seamless integration into standard switch ranges.

Advantages

Robust thermoplastic housing with IP20 protection ensures durability and safety. Screw terminals accommodate rigid wires up to 2 x 2.5 mm² for easy installation. Halogen-free materials contribute to environmental safety. VDE certified for peace of mind.

Suitable for

• Residential and commercial lighting control
• ON/OFF switching of electrical loads
• Integration with Busch-Jaeger switch systems

Key specifications

• Switch Type: Rotary Switch
• Number of Poles: 1-Pole (1P)
• Rated Voltage: 250 V AC
• Rated Current: 10 AX
• Connection: Screw Terminals
• Mounting: Flush-mounted
• IP Rating: IP20
• Installation Depth: 32 mm
• Operating Temperature: -5 to 40 °C
• Housing Material: Thermoplastic
• Halogen-Free: Yes
• Certification: VDE

Recommendations

For optimal performance, use with compatible Busch-Jaeger frames and cover plates. Ensure proper installation by a qualified electrician.
