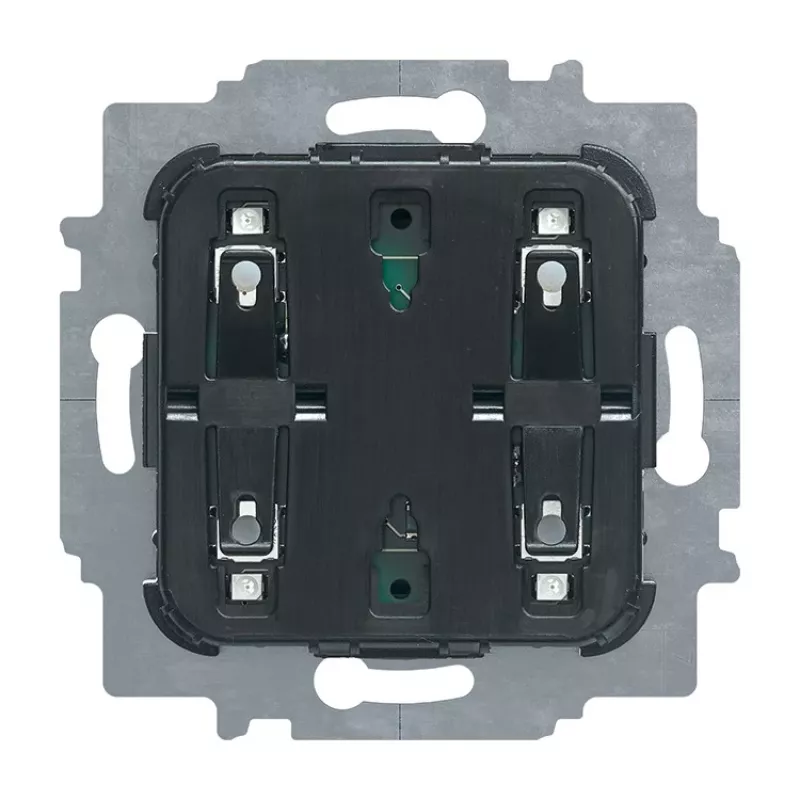

Busch-Jaeger elektronická vložka tlačidla 2-násobná 2052 U (2CKA001413A1116)

Electricians and installers use the Busch-Jaeger Electronic Push-button Switch Insert 2-fold 2052 U in flush-mounted installations to control lighting, blinds, dimmers, and other electronic loads. This insert provides two independent momentary switching channels and is designed to be combined with Busch-Jaeger electronic inserts and a separate 2-gang rocker and frame.

Key specifications

• Product type: Electronic push-button switch insert
• Number of channels: 2
• Mounting type: Flush-mounted (UP)
• Connection type: Screw terminals
• Material: Thermoplastic (PC)
• Installation depth: 32 mm
• Operating temperature range: 0 °C to 45 °C
• Colour: Neutral / Light Grey

Why choose it

This insert is part of the Busch-Jaeger flush-mounted system and offers reliable momentary switching for control signals. Its two channels allow independent control of two loads, and the screw terminals ensure a secure connection.

Ideal use cases

• Control of lighting circuits in residential or commercial buildings
• Operation of blinds and shutters
• Switching of electronic dimmers or other compatible inserts

Good to know

The rocker/cover and frame are not included and must be purchased separately. The insert body is neutral/light grey and designed for flush mounting.
