Busch-Jaeger future® linear centrálny kryt 1-násobný UAE/IAE s polepovým poľom, štúdiová biely

Engineered for high-performance network installations, this central cover plate features a halogen-free, UV-resistant thermoplastic build with IK05 impact resistance and an 850°C glow wire rating, ensuring durability and safety in demanding environments.

Overview

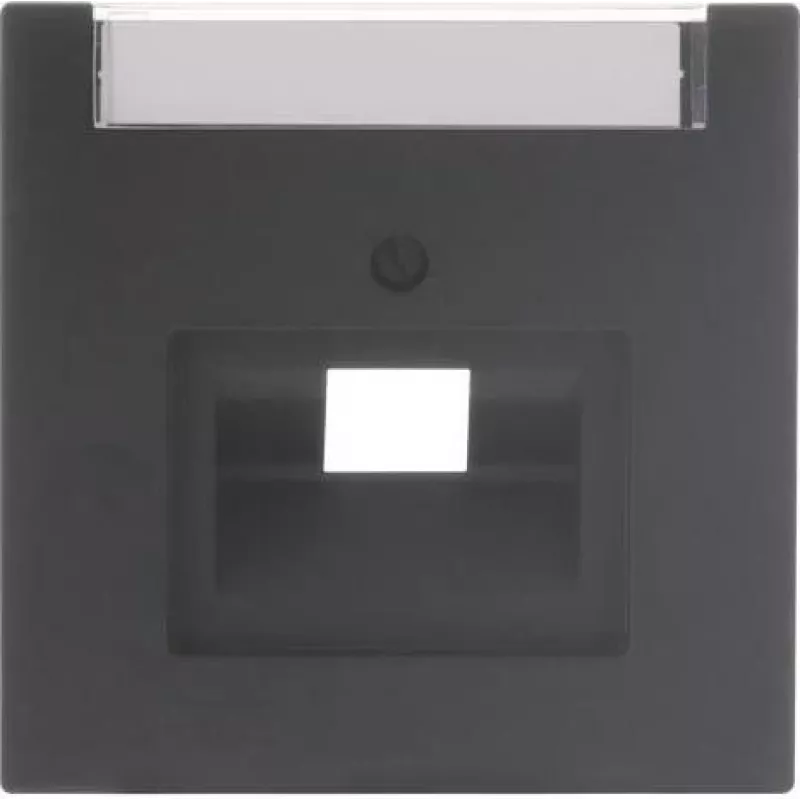

The Busch-Jaeger 1803-45M is a 1-gang central cover plate designed for UAE/IAE (RJ45) sockets, part of the renowned future® linear series. It includes an integrated labeling field for clear port identification, making it ideal for structured cabling in residential and commercial settings. The snap-in mounting system allows for quick, tool-free installation on standard flush-mounted boxes.

What stands out

• Halogen-free and UV-resistant material for long-term reliability
• Integrated labeling field for easy network port identification
• Matt studio white finish complements modern interiors
• Compatible with standard UAE/IAE inserts (Cat.5e, Cat.6, Cat.6A)
• Robust IK05 impact resistance and 850°C glow wire compliance

Technical details

• Product type: Central cover plate
• Application: UAE/IAE (RJ45) sockets
• Number of gangs: 1
• Design line: Busch-Jaeger future® linear
• Material: Thermoplastic (PC/ABS)
• Surface finish: Matt
• Colour: Studio white
• Mounting type: Snap-in / clip-on
• Halogen-free: Yes
• UV-resistant: Yes
• Protection class: IP20
• Operating temperature: -5 to +45 °C
• Impact resistance: IK05
• Glow wire test: 850 °C
• Manufacturer: ABB Stotz-Kontakt GmbH

Our verdict

A premium, future-proof solution for network connectivity, combining sleek aesthetics with robust technical performance. The labeling field adds practical value for organized installations.
