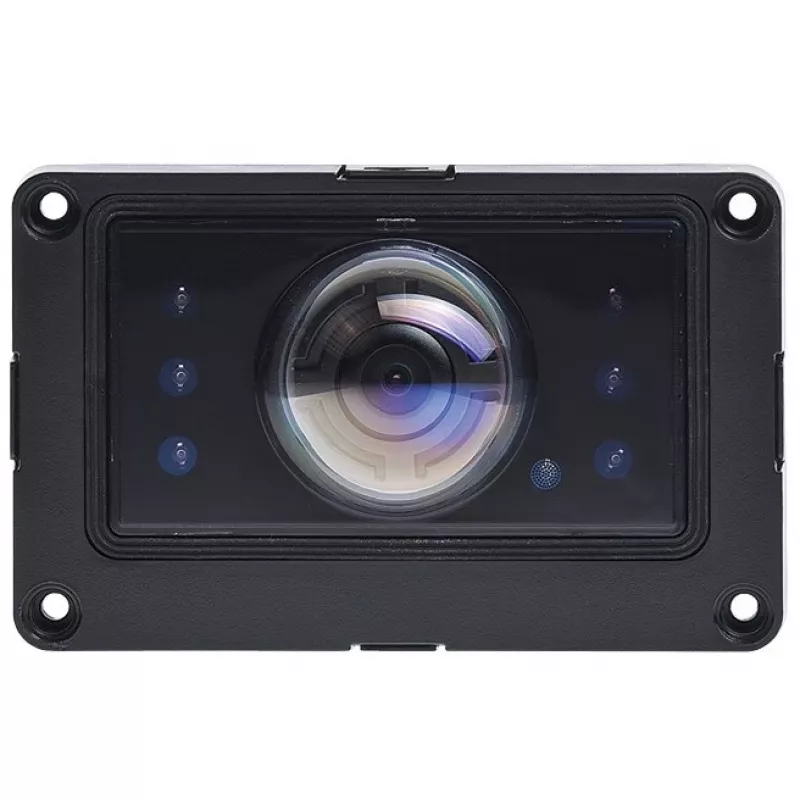

Busch-Jaeger kamerový modul 83501-101 (čierny), rozmery 98×33×62 mm

Busch-Jaeger Kameramodul 83501-101 (black) is a compact camera module designed for integration into Busch-Jaeger door communication and security panels. Housed in a black enclosure with outer dimensions of 98×33×62 mm, the module provides a space-saving solution for visual monitoring when used with compatible Busch-Jaeger systems. It is intended for flush or semi-recessed installation in multi-module panel configurations where a discrete camera is required.

Advantages

The module’s small footprint and black finish enable unobtrusive placement within panel assemblies. Its design supports straightforward mechanical integration into standard Busch-Jaeger mounting frames, allowing consistent alignment with other interface modules. The enclosed housing protects internal optics and electronics from mechanical stress during installation and everyday use.

Suitable for

Key specifications

How to use

Install the camera module into the appropriate slot of a Busch-Jaeger multi-module panel frame according to the system documentation. Ensure power and signal connections are made using compatible Busch-Jaeger cabling and connectors. Position the module so that the camera field of view aligns with the desired monitoring area and secure the housing with the provided fasteners. Verify integration and image transmission through the connected indoor station or management software before completing the panel assembly.

Recommendations

Use this module only within supported Busch-Jaeger systems and follow the manufacturer’s installation guidelines. Avoid exposing the module to direct moisture or strong impacts; install it within a properly sealed panel environment. For optimal image alignment, perform final adjustment and system tests after all adjacent modules are installed.
