BUSCH-JAEGER SCHUKO zásuvka s krytom IP44, čierna matná 2CKA002013A5538

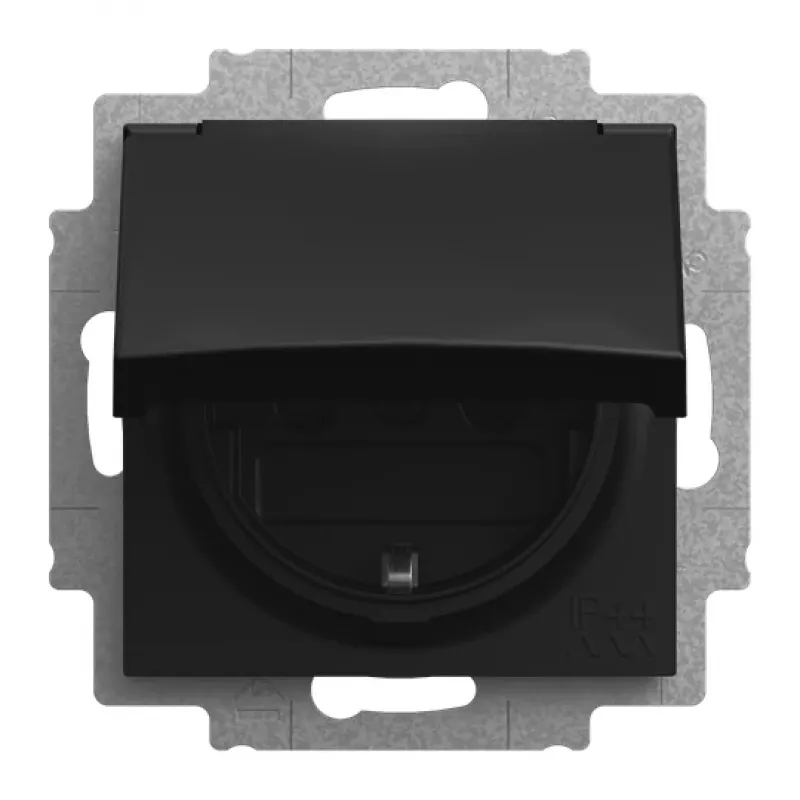

Outdoor and wet-area electrical installations require reliable protection against splashing water and accidental contact. The BUSCH-JAEGER SCHUKO socket outlet with hinged cover solves this by providing a splash-proof IP44-rated connection point that keeps moisture out when not in use.

Who is it for

Electricians and homeowners installing power outlets in bathrooms, kitchens, basements, garages, or outdoor covered areas where protection against splashing water is needed.

Main features

• SCHUKO (Type F) socket outlet, rated 250 V AC, 16 A
• IP44 splash-proof protection with hinged cover
• Flush-mounted design for clean integration into standard wall boxes
• Thermoplastic housing in black matt, halogen-free
• Screw terminals for conductors up to 2.5 mm²
• Compatible with Busch-Duro 2000® SI, Reflex SI, and future® linear design lines

Specifications

• Socket type: SCHUKO (Type F)
• Protection class: IP44
• Rated voltage: 250 V AC
• Rated current: 16 A
• Connection type: screw terminals
• Mounting type: flush-mounted
• Material: thermoplastic
• Colour: black matt
• With hinged cover: yes
• Number of sockets: 1
• Child protection: no
• Halogen-free: yes
• Terminal capacity: up to 2.5 mm²
• Operating temperature: -5 °C to +40 °C

Tips

Ensure the mounting box is properly sealed and the cover is closed when the socket is not in use to maintain IP44 protection. For outdoor installations, use appropriate cable glands and consider additional weatherproofing of the wall box.
