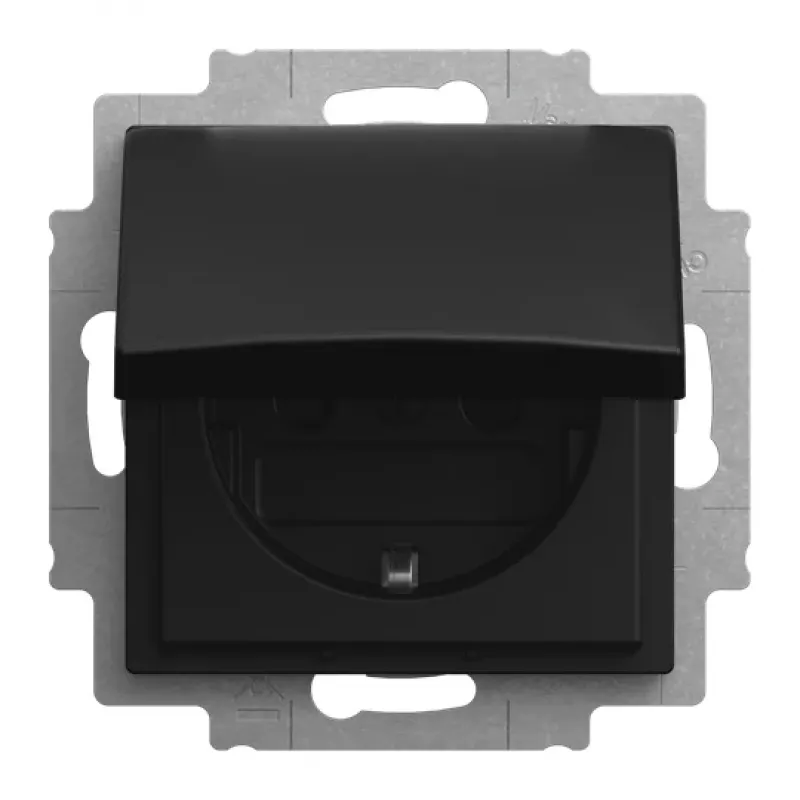

Busch-Jaeger SCHUKO® zásuvka s vyklápacím krytom, čierna matná (2CKA002013A5540)

This Busch-Jaeger SCHUKO® socket outlet stands out with its integrated hinged cover, providing enhanced protection against dust and moisture. The cover also acts as a child protection feature, preventing accidental contact with live parts. Designed for flush-mounted installation, it is ideal for damp rooms and protected outdoor areas where a reliable and safe power connection is required.

Highlights

• SCHUKO® socket outlet (Type F) with hinged cover
• Increased touch protection for added safety
• IP44 rated for damp room and protected outdoor use
• Rated at 250 V AC, 16 A
• Screwless plug-in terminals for quick and secure wiring
• Black Matt finish

In daily use

The hinged cover snaps shut automatically, keeping the socket clean and safe when not in use. The plug-in terminals accept rigid conductors up to 2.5 mm², making installation straightforward. The socket can be mounted vertically or horizontally in standard Busch-Jaeger flush-mounted boxes, ensuring compatibility with existing switch ranges.

Full specifications

• Socket type: SCHUKO® (Type F)
• Number of gangs: 1
• Rated voltage: 250 V AC
• Rated current: 16 A
• Connection method: Plug-in terminals (screwless)
• Mounting method: Flush-mounted
• Degree of protection: IP44
• Material: High-quality thermoplastic
• Colour: Black Matt
• Surface type: Matt
• Halogen-free: Yes
• Terminal capacity: Up to 2.5 mm² rigid conductors
• Orientation: Vertical/Horizontal mounting possible

Final note

A dependable socket outlet that combines safety, durability, and ease of installation for both residential and commercial applications.
