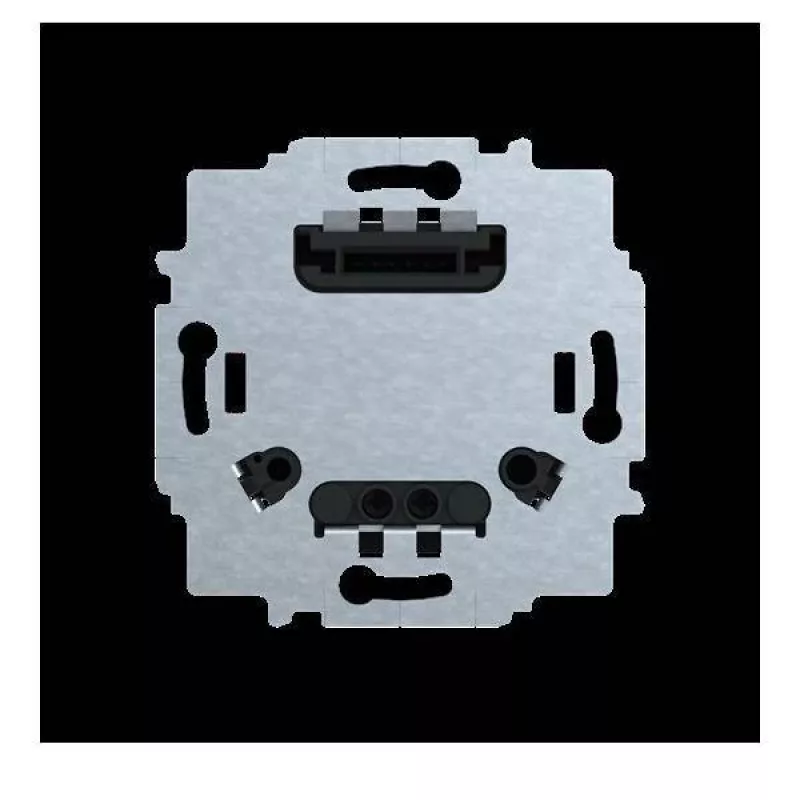

BUSCH-JAEGER zbernicový spojovací modul BAU-F-0.11 flex UP BAU (2CKA006220A0998)

Bus Coupler for Busch-flexTronics® modules, flush-mounted, providing the interface between a Busch-flexTronics® module and the bus system. It supports one module and connects via a 2-wire bus terminal, powered by the Busch-flexTronics® bus at 29 V DC.

Advantages

Flush-mounted design for discreet integration. Compatible with Busch-flexTronics® universal dimmer, blind control, and switch actuator modules. Operates on low voltage from the bus, eliminating separate power supply.

Suitable for

• Integration of Busch-flexTronics® modules into building automation systems
• Flush-mounted installations in residential and commercial buildings

Key specifications

• Product type: Bus Coupler
• System: Busch-flexTronics®
• Mounting: Flush-mounted (UP)
• Number of connectable modules: 1
• Bus connection: 2-wire bus terminal
• Power supply: Via Busch-flexTronics® bus (29 V DC)
• Operating temperature: 5 °C to 45 °C
• Material: Plastic
• Colour: Grey

Recommendations

For use with Busch-flexTronics® universal dimmer, blind control, and switch actuator modules.
