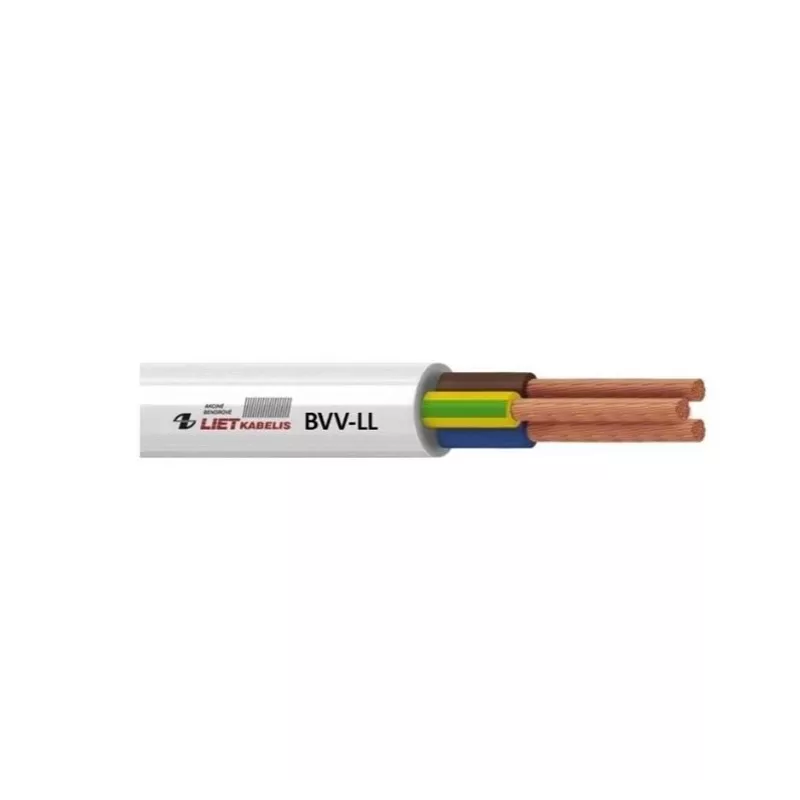

BVV-LL 3X2.5 WHITE 50M napájací kábel

This BVV-LL power cable is designed for fixed installation in domestic and light industrial environments. With 3 cores of 2.5 mm² solid copper conductors and a white PVC sheath, it provides reliable power distribution for lighting, sockets, and small appliances. The cable is flame retardant according to IEC 60332-1-2 and meets EN 50525-2-11 standards.

Advantages

High-quality solid copper conductors ensure excellent conductivity and durability. The PVC insulation and sheath offer good mechanical protection and resistance to common environmental factors. The cable is easy to strip and terminate, saving installation time.

Suitable for

• Fixed wiring in residential buildings
• Light commercial installations
• Power supply for lighting circuits, sockets, and small appliances
• Indoor use in dry or damp conditions

Key specifications

• Cable type: BVV-LL
• Number of cores: 3
• Conductor cross-section: 2.5 mm²
• Cable length: 50 m
• Sheath colour: White
• Conductor material: Copper (solid, Class 1)
• Insulation material: PVC
• Sheath material: PVC
• Rated voltage: 300/500 V
• Max conductor temperature: 70 °C
• Flame retardant: Yes (IEC 60332-1-2)
• Standards: EN 50525-2-11
• Nominal outer diameter: 9.5 mm
• Min bending radius (fixed): 4 x outer diameter
• Operating temperature range (fixed): -5°C to +70°C
• Packaging: Coil / Roll

Recommendations

This cable is suitable for fixed installations where a durable, flame-retardant power cable is required. Ensure compliance with local electrical regulations and consult a qualified electrician for installation.
