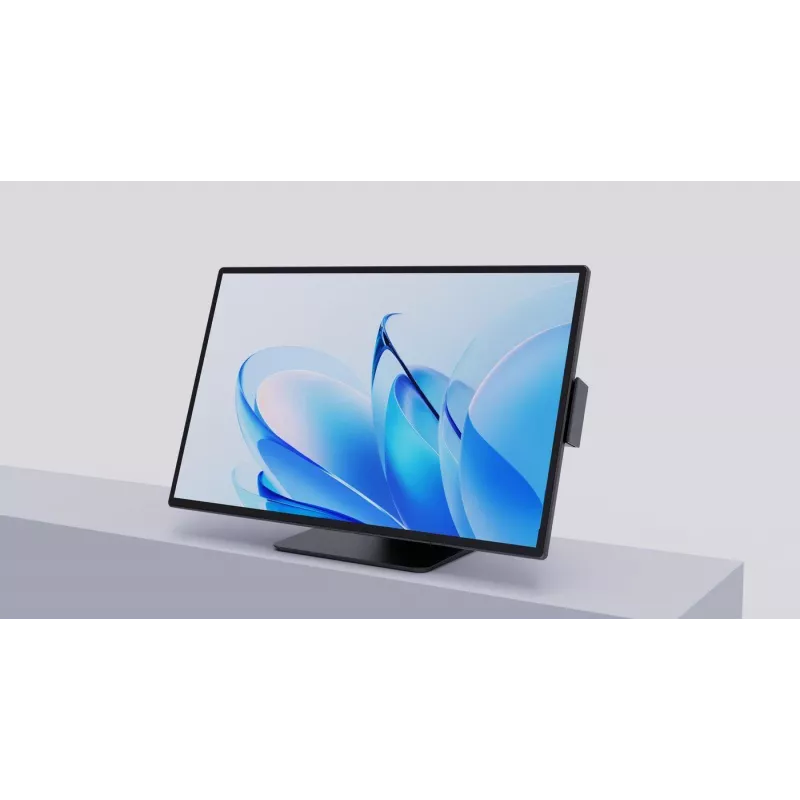

Capture 21,5" POS systém - Intel N95 / Windows 10 IoT Entry / Wi-Fi (CA-M6D-1212)

A 21.5-inch all-in-one point-of-sale terminal built around the Intel Processor N95, this Capture system pairs a Full HD projected capacitive touchscreen with Windows 10 IoT Enterprise Entry for reliable retail and hospitality performance. Unlike generic panel PCs, it includes dual RS-232 ports, TPM 2.0, and Wi-Fi 6 out of the box.

Highlights

• 21.5" Full HD (1920 x 1080) LED-backlit LCD with PCAP multi-touch
• Intel Processor N95 (4 cores, up to 3.4 GHz) with 8GB DDR4 RAM
• 128GB M.2 NVMe SSD for fast boot and application loading
• Windows 10 IoT Enterprise Entry pre-installed
• Wi-Fi 6 (802.11ax) and Bluetooth 5.2 for wireless peripherals
• 4x USB 3.2 Gen 1, 2x USB 2.0, 2x RS-232, 1x HDMI, 1x Gigabit Ethernet
• VESA 100 x 100 mm mount support for flexible installation
• TPM 2.0 security module for data protection

In daily use

The fanless-style ABS chassis with metal stand keeps the counter clean and quiet, while the external 65W adapter simplifies service. The projected capacitive touchscreen responds accurately even with gloved hands, and the wide 21.5-inch panel gives staff enough room for split-screen POS and back-office tasks. With dual serial ports, you can connect legacy barcode scanners, receipt printers, or cash drawers without USB adapters.

Full specifications

• Display: 21.5" LED-backlit LCD, 1920 x 1080, PCAP multi-touch
• Processor: Intel Processor N95 (4C/4T, up to 3.4 GHz)
• Memory: 8GB DDR4 SO-DIMM
• Storage: 128GB M.2 NVMe SSD
• Graphics: Integrated Intel UHD Graphics
• Operating system: Windows 10 IoT Enterprise Entry
• Wireless: Wi-Fi 6 (802.11ax), Bluetooth 5.2
• Wired network: 1x Gigabit Ethernet (RJ45)
• USB: 4x USB 3.2 Gen 1 Type-A, 2x USB 2.0
• Serial: 2x RS-232 (DB9)
• Video output: 1x HDMI
• Audio: 1x 3.5mm combo jack
• Power: External 65W AC adapter
• VESA: 100 x 100 mm
• Chassis: ABS plastic with metal stand, black
• Security: TPM 2.0

Final note

Built for continuous operation in retail and hospitality, the CA-M6D-1212 delivers the connectivity and security features that modern POS deployments demand, without unnecessary complexity.
