Chief MSA1U TV držiak/stojan 139,7 cm (55 palcov) čierny

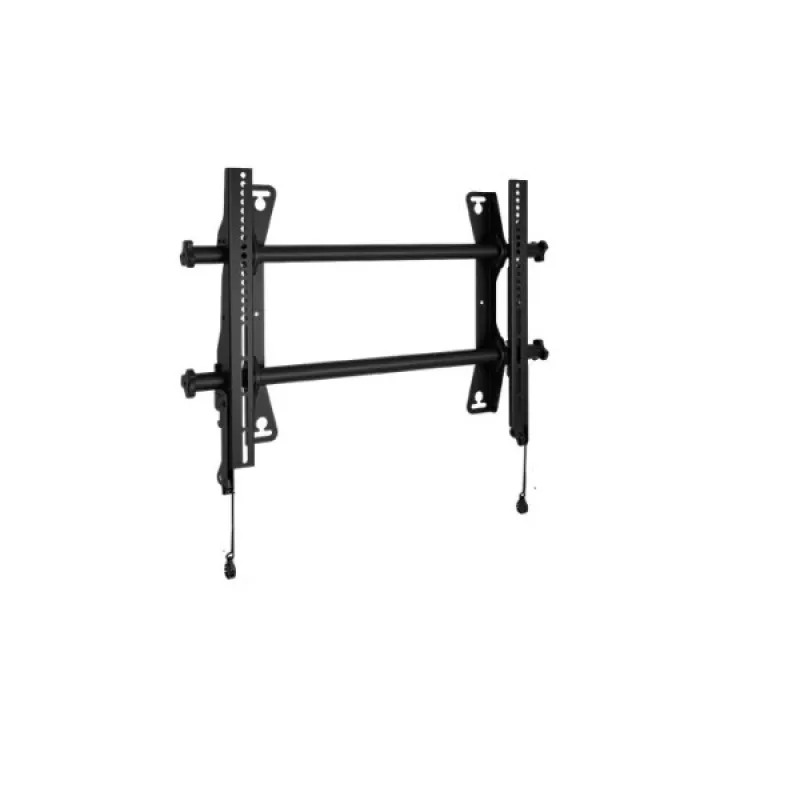

The Chief MSA1U Medium Fusion fixed wall display mount provides a low-profile, installer-focused solution for mounting flat panel displays up to 47" (119.4 cm). Designed from installer feedback, this black fixed mount improves stability, simplifies cable access and offers post-installation lateral adjustment to precisely center the screen. It ships with a custom hardware kit and supports multiple stud distances and accessories for flexible installation workflows.

Advantages

The Fusion fixed mount adds stability and security with set screws and integrated security features, while ClickConnect latching gives an audible confirmation when the display engages. Centerless Shift allows up to 12.9" (327 mm) of lateral adjustment after installation for precise centering. Installer-focused details—such as an integrated teardrop wall plate for faster bolt alignment, built-in cable stand and improved end caps—speed installation and simplify cable management. Nesting spacers provide adjustable depth, Quick-Store magnetic cords secure pull cords, and the mount can accommodate a full line of accessories that install with the unit.

Suitable for

• Mounting a single flat-panel TV or monitor up to 47" and 56.8 kg
• Residential living rooms, bedrooms and home offices
• Commercial spaces, small meeting rooms and reception areas
• Installations requiring post-installation lateral centering or low-profile mounting

Key specifications

• Maximum screen size: 47" (119.4 cm)
• Maximum weight capacity: 56.8 kg
• Number of displays supported: 1
• Maximum VESA: 640 x 400
• Product colour: Black
• Post-installation lateral shift (Centerless Shift): up to 12.9" (327 mm)

How to use

Attach the integrated teardrop wall plate to the wall using the supplied bolts and the custom hardware kit; the teardrop design allows pre-installation of bolts for faster alignment. Hang the mount rails on the wall plate and engage the display using ClickConnect until an audible click confirms secure engagement. Use set screws to lock the mount rigid and adjust lateral position using Centerless Shift to precisely center the screen. Route cables under the display using the built-in cable stand and improved end caps; stack nesting spacers if additional depth is required and fit accessories as needed.

Recommendations

Verify wall construction and stud spacing prior to installation, and follow the supplied hardware and torque guidance. Ensure the display weight and VESA pattern do not exceed the mount’s rated capacity. For staged installations, hang the included hardware kit from the mount rails as provided. If in doubt, consult a qualified installer to confirm safe attachment and alignment.
