Čiastočne osadená spájkovacia skriňa EFB Elektronik B61901.24OM3

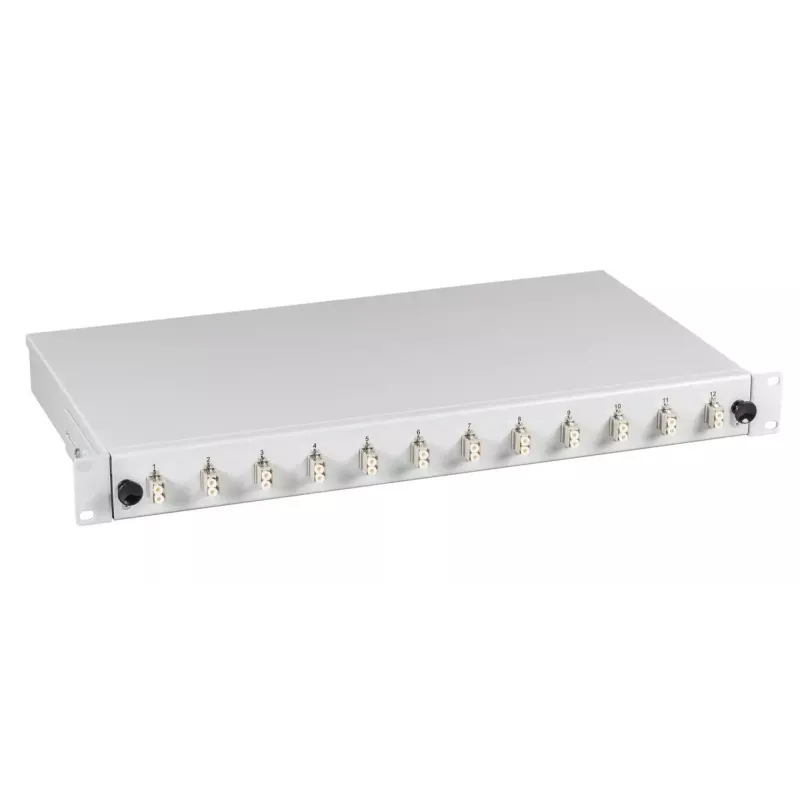

Partly assembled splice box with metal housing in grey and a sliding front panel, suitable for LC-Duplex plastic adapters and OM3 fiber. The unit measures 483 mm (width) x 244 mm (depth) x 44.5 mm (height) and can accommodate up to four splice cassettes; one splice cassette with a single splice holder and adapters for 12 fibers is included. Cable entries are located at the rear and the front panel is screwed for secure mounting.

Advantages

The EFB Elektronik B61901.24OM3 splice box offers a compact 19-inch form factor with a durable metal housing and a sliding front panel for easy access. It comes partly assembled to reduce installation time and includes one splice cassette pre-installed. The design supports LC-Duplex plastic adapters and OM3 multimode fiber, while rear cable entries and screwed front panel provide tidy cable management and secure closure.

Suitable for

• Fiber optic patching and termination in telecom or data center racks
• Indoor network installations using OM3 multimode fiber
• Environments requiring LC-Duplex connectors and organized splice management

Key specifications

• Brand: EFB Elektronik
• Model / MPN: B61901.24OM3
• EAN: 4049759173142
• Housing material: Metal, grey
• Dimensions (W×D×H): 483 × 244 × 44.5 mm
• Adapter type: LC-Duplex plastic adapters
• Fiber type: OM3 (multimode)
• Included: 1 splice cassette with 1 splice holder and adapters for 12 fibers
• Capacity: Suitable for up to 4 splice cassettes
• Front panel: Sliding unit, screwed
• Cable entries: Rear

How to use

Mount the splice box in a 19-inch rack or cabinet using the available mounting points. Route incoming fiber cables through the rear cable entries, secure them with appropriate strain relief, and install additional splice cassettes as required (up to four). Perform fiber splicing in the cassette splice holder, terminate fibers into the LC-Duplex plastic adapters, and slide the front panel closed and secure it with the screws to complete installation.

Recommendations

For reliable performance, use OM3 multimode fiber and LC-Duplex plastic adapters as specified, ensure proper cable strain relief at the rear entries, and follow standard fiber handling and splicing procedures to avoid contamination or damage to fiber endfaces.
