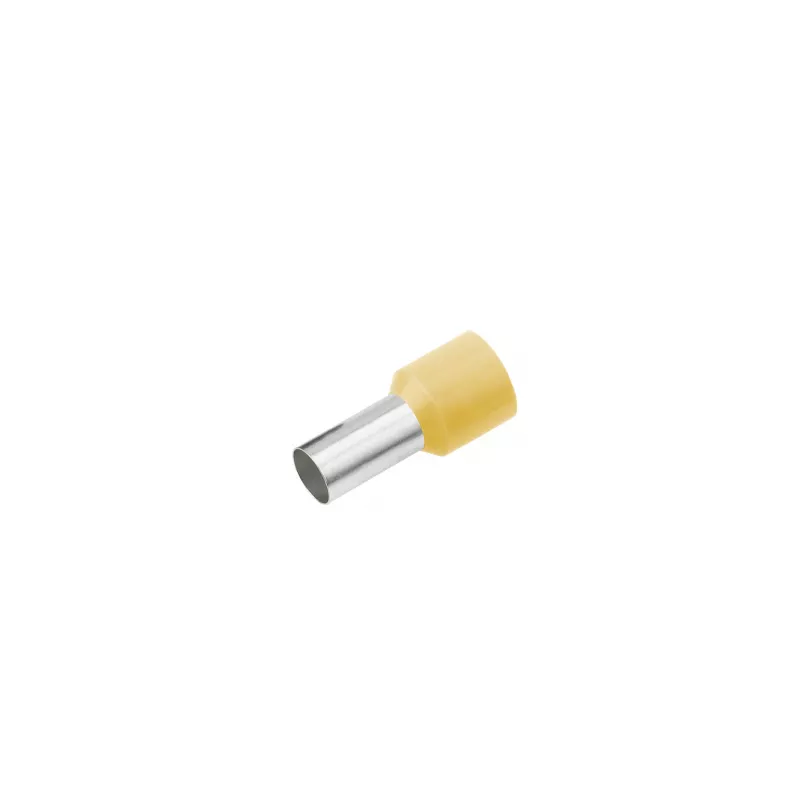

Cimco 187236 káblová koncovka 35 mm² čiastočne izolovaná béžová (balenie 50 ks)

Electricians and panel builders terminating flexible copper conductors will find the Cimco 187236 wire end ferrule essential for creating reliable, gas-tight connections in terminal blocks. The 35 mm² ferrule accepts conductors up to 2 AWG and features a tin-plated electrolytic copper sleeve with a beige polypropylene insulating collar, ensuring secure crimping and clear phase identification.

Key specifications

• Nominal cross-section: 35 mm²
• Wire gauge: 2 AWG
• Insulation type: partially insulated
• Insulation colour: beige
• Sleeve material: electrolytic copper, tin-plated
• Insulation material: polypropylene (PP)
• Sleeve length (L1): 28 mm
• Insulation length: 16 mm
• Total length: 44 mm
• Collar diameter: 10.5 mm
• Inner sleeve diameter: 8.3 mm
• Outer sleeve diameter: 9.0 mm
• Maximum temperature resistance: 105 °C
• Standard compliance: DIN 46228 Part 4
• Pack quantity: 50 pieces

Why choose it

The tin-plated copper sleeve provides excellent conductivity and corrosion resistance, while the polypropylene collar offers a firm grip for crimping tools. The beige colour coding matches standard European phase identification for 35 mm² conductors, reducing wiring errors.

Ideal use cases

• Terminating stranded copper conductors in industrial control panels
• Preparing cable ends for screw, spring, or push-in terminal connections
• Enhancing connection reliability in high-vibration environments

Good to know

These ferrules comply with DIN 46228 Part 4, ensuring dimensional consistency with standard crimping dies. The partial insulation leaves the metal sleeve exposed for optimal crimping while protecting the conductor from fraying.
