Cimco 187723 dvojitá káblová koncovka 1,5 mm² čiastočne izolovaná čierna 100 ks

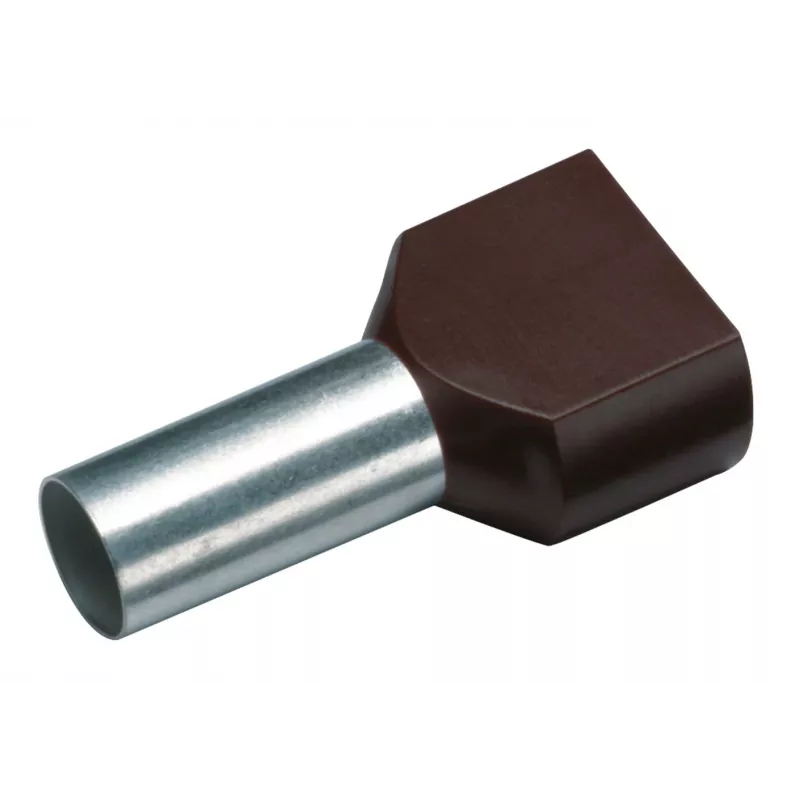

Electricians and panel builders often need to terminate two fine-stranded conductors into a single connection point. The Cimco 187723 twin wire end sleeve is made for exactly that: it accepts two 1.5 mm² wires, keeps them aligned, and provides a reliable crimp surface for a secure, vibration-resistant connection.

Key specifications

• Type: Twin wire end sleeve (ferrule)
• Conductor cross-section: 1.5 mm² (for two conductors)
• Insulation: Partially insulated, polypropylene (PP), black
• Ferrule material: Electrolytic copper, tin-plated
• Length: 14 mm total, 8 mm metal sleeve
• Pack quantity: 100 pieces
• Standard: DIN 46228 Part 4
• Temperature range: -40°C to +105°C
• Voltage rating: 300V / 600V
• Flammability rating: UL94 V-0 (insulation)
• RoHS compliant

Why choose it

The twin entry design simplifies wiring of two conductors into one terminal, reducing installation time and improving connection quality. The tin-plated copper sleeve ensures low contact resistance and excellent corrosion protection, while the partial insulation provides a reliable grip and prevents accidental short circuits.

Ideal use cases

• Terminating two fine-stranded wires in control cabinets
• Creating secure connections in industrial machinery
• Wiring terminal blocks where space is limited
• Applications requiring DIN-compliant ferrules

Good to know

The black insulation is colour-coded for 1.5 mm² conductors, making identification easy during assembly and maintenance. These ferrules are designed for use with standard crimping tools and are suitable for a wide range of operating temperatures.
