Aktívny adaptér DisplayPort na VGA CLUB3D CAC-2003

The CLUB3D Active Adapter DisplayPort to VGA (CAC-2003) is an active signal converter that allows a DisplayPort-enabled desktop or laptop to connect to analog VGA displays such as monitors, projectors or TVs. The compact black adapter is powered by the DisplayPort output and provides plug-and-play functionality without the need to install drivers.

Advantages

This active adapter converts the digital DisplayPort signal to an analog VGA output compliant with VSIS standard and supports up to WUXGA timings. It draws power directly from the DisplayPort source, requires no external power supply, and is compatible with AMD, NVIDIA and Intel graphics solutions. The adapter is lightweight and designed for easy connection in presentations and multi-monitor setups.

Suitable for

• Connecting a DisplayPort laptop or desktop to a VGA monitor
• Using VGA projectors for presentations
• Extending or mirroring displays in multi-monitor configurations

Key specifications

• Model: CAC-2003
• Input: DisplayPort
• Output: VGA (analog)
• Maximum supported resolution: up to WUXGA 1920 x 1200 @ 60 Hz
• Power: powered by DisplayPort output (no external power required)
• Compatibility: AMD, NVIDIA, Intel graphics
• Colour: Black
• Weight: 0.042 kg

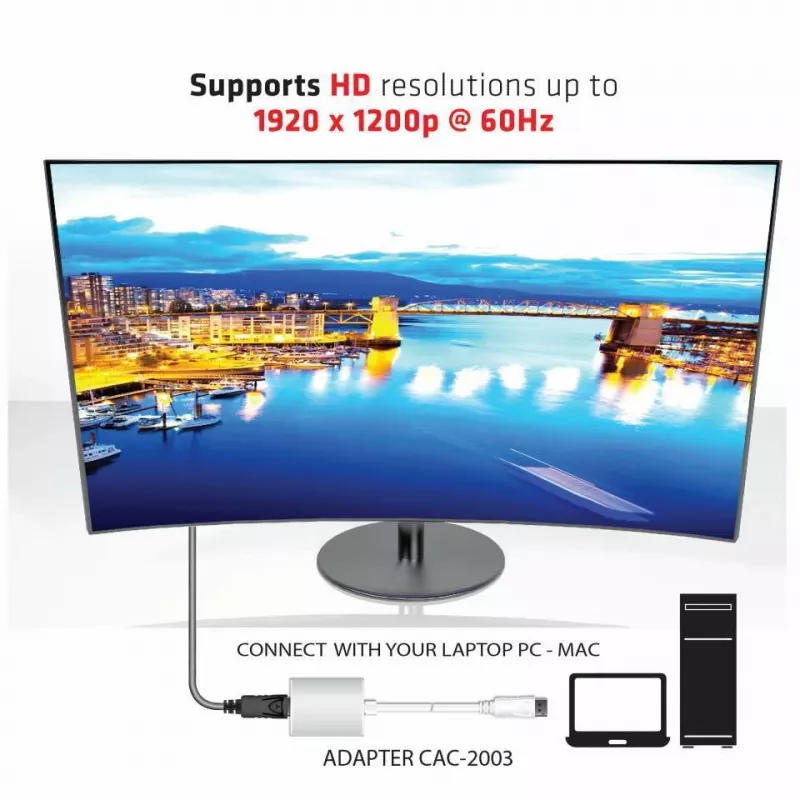

How to use

Connect the adapter's DisplayPort plug to the DisplayPort output on your computer and connect a VGA cable from the adapter's VGA connector to your monitor or projector. The adapter is plug-and-play and should be automatically recognised by the operating system; adjust display resolution and arrangement through your OS display settings as needed.

Recommendations

For optimal image quality, set the output resolution to a supported mode (up to 1920 x 1200 @ 60 Hz) in the computer's display settings. Use a good-quality VGA cable and avoid excessive cable length to reduce signal degradation.
