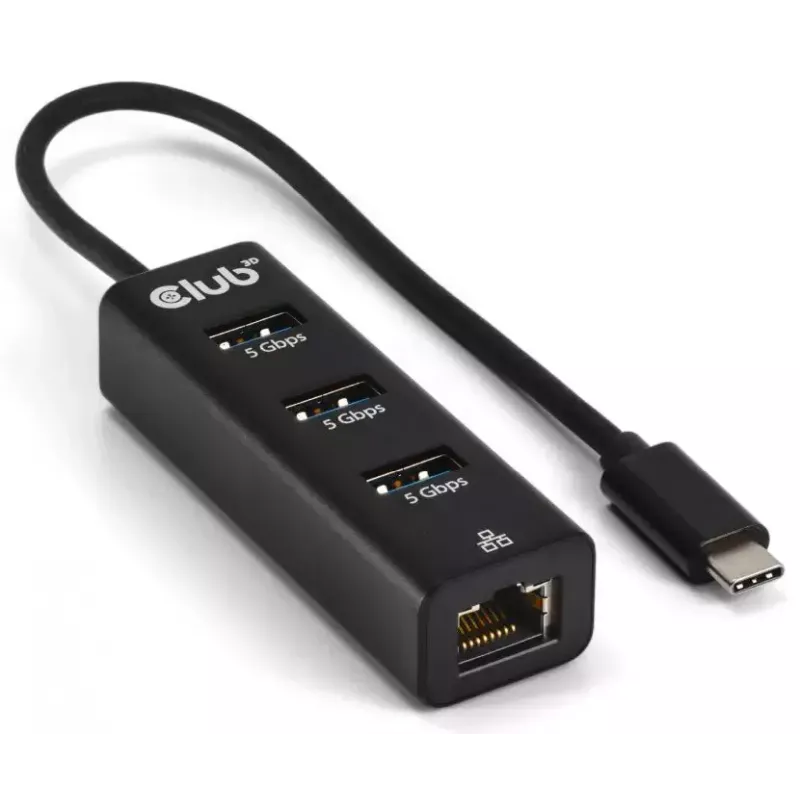

CLUB3D CSV-1549 rozbočovač USB Type-C 5000 Mbit/s čierny

The Club 3D CSV-1549 is a slim USB 3.2 Gen1 Type-C hub that provides three USB Type-A ports and a Gigabit Ethernet (RJ45) connection from a single USB-C uplink. Its compact design makes it easy to carry and it supports simultaneous use of all ports. The hub is backward compatible with USB 2.0 devices, though older standards may reduce transfer performance.

Advantages

The CSV-1549 delivers up to three USB 3.2 Gen1 Type-A ports with maximum 5 Gbps transfer rates and a 10/100/1000 Mbps Gigabit Ethernet port with full duplex and flow control. Its slim, portable housing enables convenient use with laptops and tablets that have a USB-C port. Backward compatibility with USB 2.0 devices ensures broader device support.

Key specifications

• Interface: USB 3.2 Gen1 Type-C uplink
• USB ports: 3 × USB 3.2 Gen1 Type-A (max 5 Gbps)
• Ethernet: Gigabit Ethernet 10/100/1000 (RJ45), full duplex, flow control
• Backward compatibility: USB 2.0
• Form factor: Slim, portable hub

How to use

Connect the hub’s USB-C uplink to a host device with a USB 3.2 Gen1 Type-C port. Plug USB Type-A peripherals into the three Type-A ports and connect an Ethernet cable to the RJ45 port for wired network access. If connected to a USB 2.0 host, expect reduced data transfer speeds. No separate power supply is required for typical USB peripherals, but high-power devices may need their own power source.

Recommendations

Use a USB 3.2 Gen1 (USB-C) host port to achieve maximum transfer speeds and Gigabit Ethernet performance. For stable wired networking, connect directly to a router or modem with a quality Ethernet cable. If a peripheral requires more power than the hub can supply, use a self-powered USB device or an external power source.
