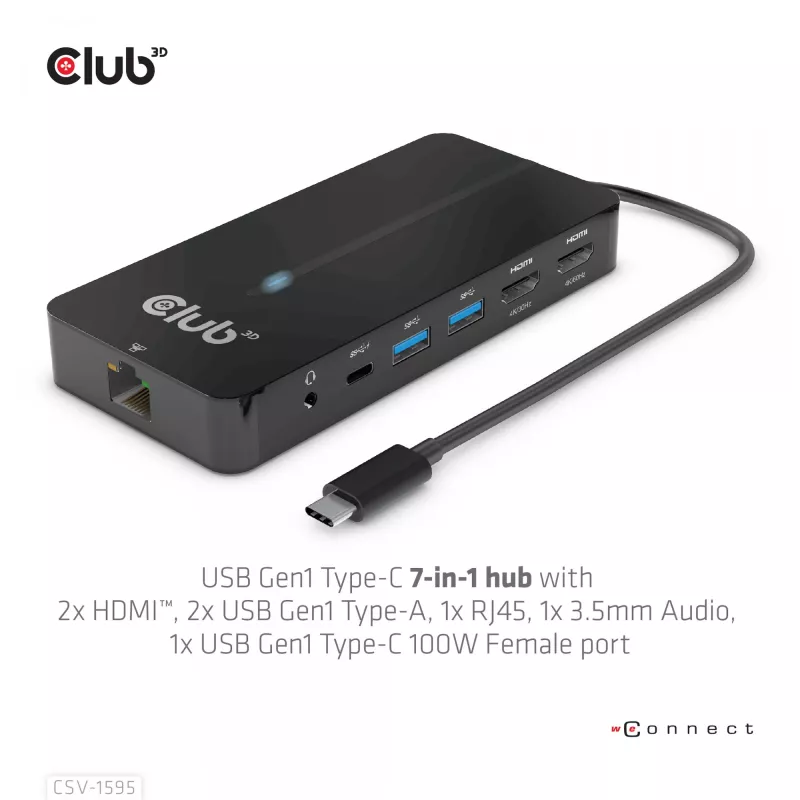

CLUB3D Type-C 7-in-1 hub s 2x HDMI, 2x USB Gen1 Type-A, 1x RJ45, 1x 3,5 mm audio, 1x USB Gen1 Type-C 100W konektor samica

The Club 3D CSV-1595 7-in-1 Type-C hub expands a single USB 3.2 Gen 1 (Type-C) port into multiple ports including 2x HDMI, 2x USB Gen1 Type-A, 1x RJ45 Ethernet, 1x 3.5mm audio jack and 1x USB Gen1 Type-C female PD port (up to 100W). It integrates video, data and power delivery so you can connect two external displays, multiple USB devices at up to 5 Gbps, a Gigabit Ethernet network and an audio headset while simultaneously supplying power to the host device. The hub is compatible with hosts that support DP 1.4 Alt Mode over USB-C and has a compact black housing measuring approximately 140 × 65 × 19 mm.

Advantages

The hub provides dual 4K Ultra HD HDMI outputs at 60 Hz (when supported by the host and displays), USB 3.2 Gen 1 data transfer rates up to 5 Gbps for Type-A and Type-C ports, Gigabit Ethernet (10/100/1000 Mbit/s) and 3.5 mm audio passthrough in a single compact accessory. It also supports Power Delivery charging to the host up to 100W via the Type-C female PD port, enabling simultaneous device operation and charging.

Suitable for

• Connecting two external displays for video output and presentations
• Attaching USB peripherals such as external drives, keyboards and mice
• Wired network connection via Gigabit Ethernet
• Connecting headphones or headsets through the 3.5 mm jack

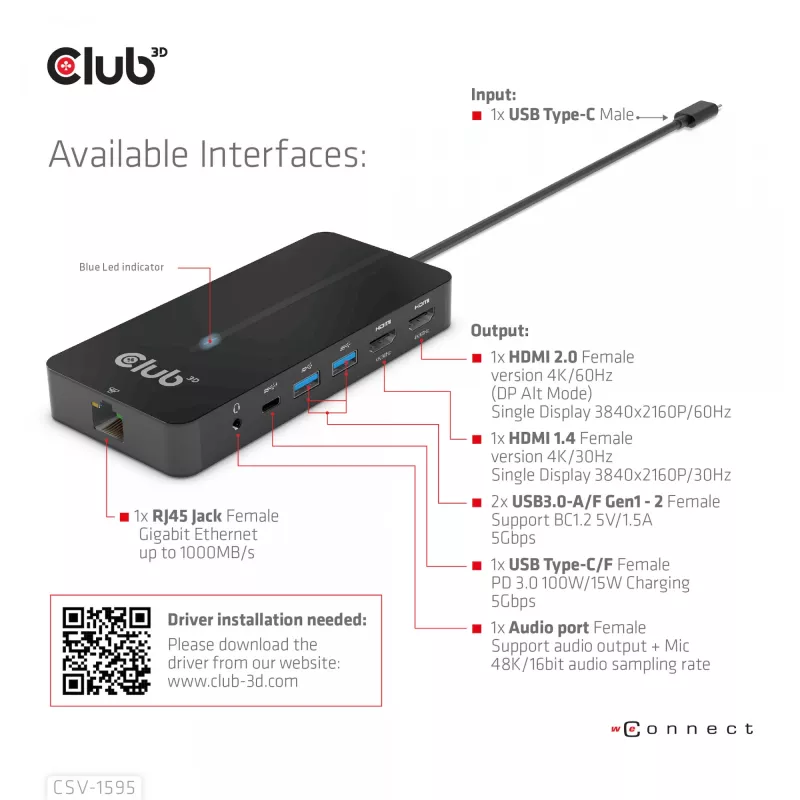

Key specifications

• Host interface: USB 3.2 Gen 1 (Type-C) with DP 1.4 Alt Mode support
• Video outputs: 2 × HDMI, up to 4K @ 60 Hz (host/display dependent)
• Data ports: 2 × USB 3.2 Gen 1 Type-A, 1 × USB 3.2 Gen 1 Type-C (female), up to 5 Gbps
• Ethernet: RJ45 Gigabit Ethernet, 10/100/1000 Mbit/s
• Audio: 1 × 3.5 mm audio jack
• Power Delivery: up to 100W PD input via Type-C female port

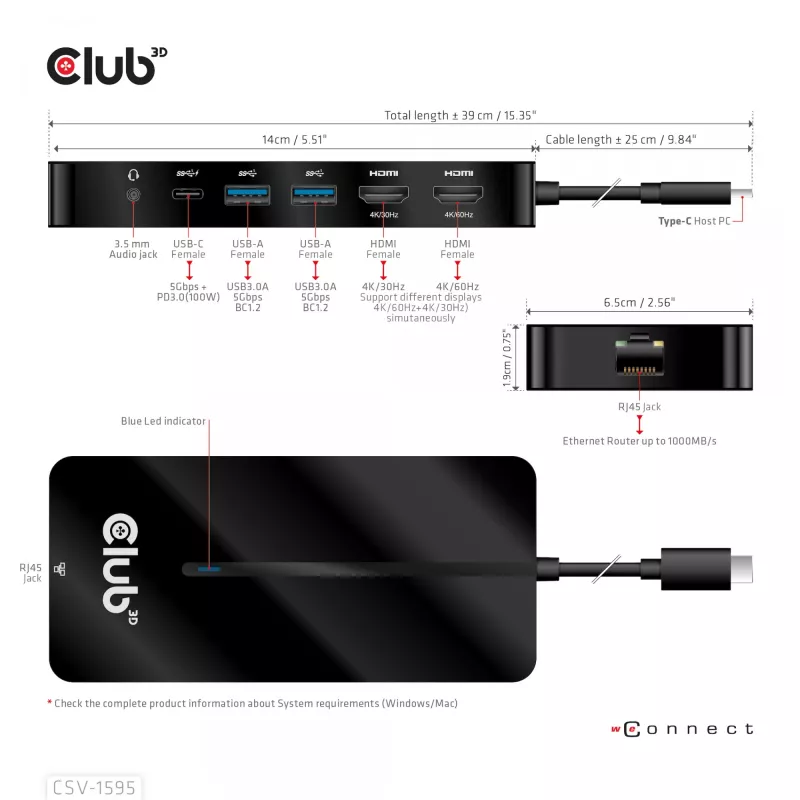

• Color and dimensions: Black, approx. 140 × 65 × 19 mm
• Weight: 0.21 kg

How to use

Connect the hub to a compatible USB-C host that supports DP Alt Mode. Attach displays to the HDMI outputs and plug in USB devices, Ethernet cable and audio headset as needed. If you want to charge the host while using the hub, connect a PD-capable USB-C power adapter (up to 100W) to the Type-C female PD port. Ensure the host and displays support the desired resolution and refresh rate; some combinations may reduce maximum resolution or refresh rate.

Recommendations

Use a PD charger rated appropriately for your laptop to allow simultaneous charging and operation. For optimal video performance, use high-quality HDMI cables rated for 4K@60Hz and verify that the host supports DP 1.4 Alt Mode. For maximum Ethernet throughput, connect to a gigabit network and use Cat5e or higher cable.
