CLUB3D USB Type-C 3.2 Gen1 Triple Display Dynamic PD Charging Dock 100W PD Power nabíjačka

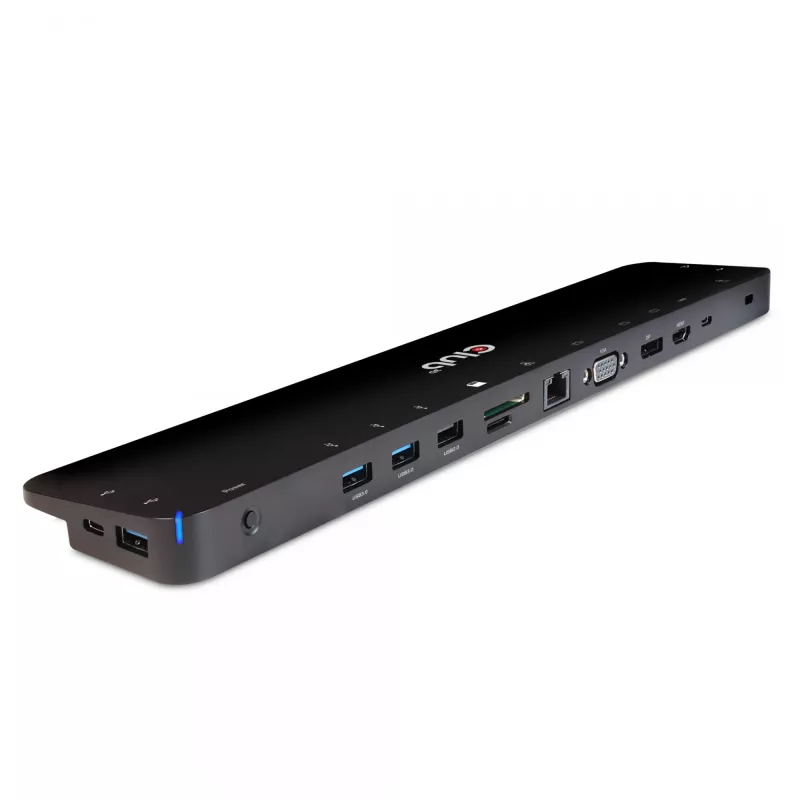

The Club 3D USB Type C 3.2 Gen1 Triple Display Dynamic PD Charging Dock (CSV-1564W100) combines video, data, power, Ethernet and audio in a single compact dock designed for frequent travelers. It provides three different video outputs (HDMI, DisplayPort, VGA) for simultaneous display on up to three monitors in MST mode, multiple USB ports for peripherals, SD and microSD card readers, a 3.5 mm audio jack and a Gigabit Ethernet port. The dock supports hosts with DP Alt Mode and enables power delivery to the host when a PD power adapter is connected.

Advantages

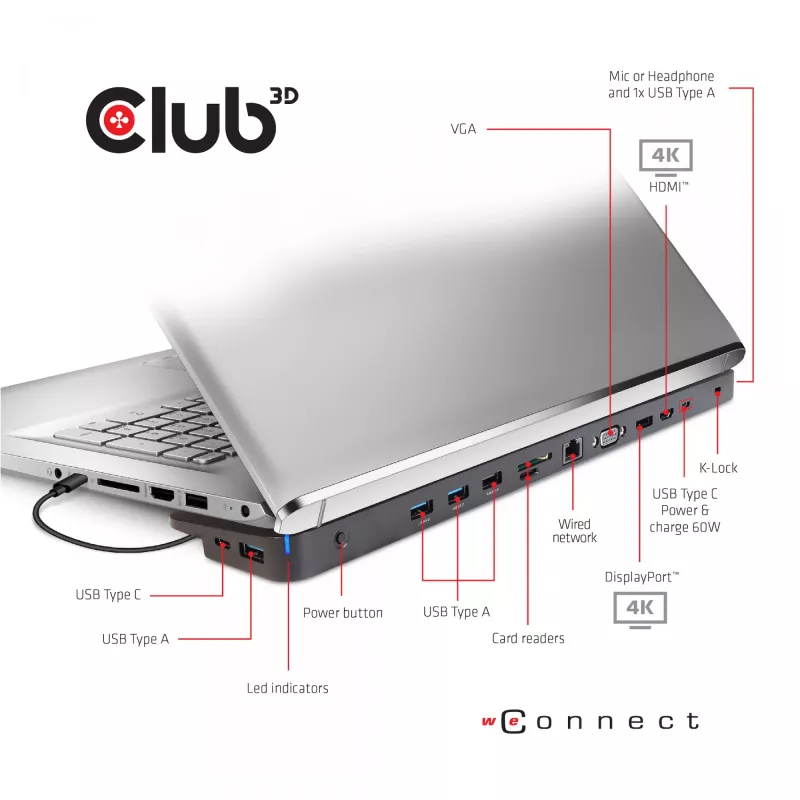

The dock allows connection of three independent displays through HDMI, DisplayPort and VGA ports while also offering USB Type-A and Type-C data ports for peripherals. Its USB Type-C PD input supplies power to the dock and charges the connected host, reducing the need to carry a separate laptop power supply. The integrated SD and microSD card readers, Gigabit Ethernet and 3.5 mm audio output provide expanded functionality in a single device. Dynamic Current Detection and Power Distribution optimize how much power is delivered to the host based on the dock’s actual consumption.

Key specifications

• Model: CSV-1564W100
• Interface: USB Type-C 3.2 Gen1 (supports DP Alt Mode)

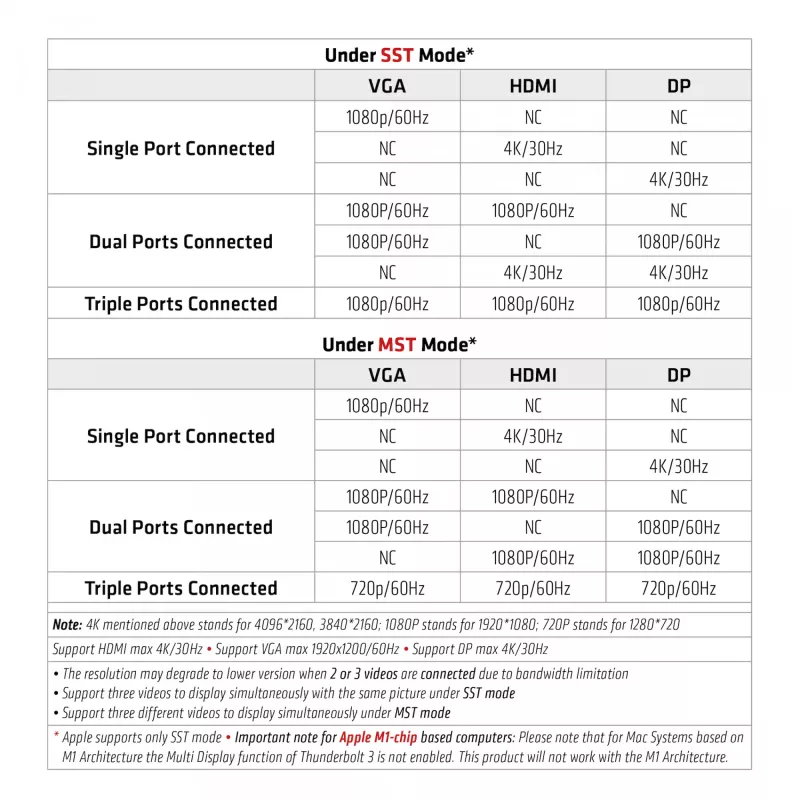

• Video outputs: HDMI, DisplayPort, VGA (Triple display in MST mode)
• Power delivery: USB Type-C PD input (charges host when PD adapter connected)
• USB ports: Multiple USB Type-A and USB Type-C data ports
• Card readers: SD/MMC and microSD
• Audio: 3.5 mm audio jack
• Network: Gigabit Ethernet port

How to use

Connect the dock to a host device that supports DisplayPort Alt Mode using the USB Type-C connection. Attach external monitors to the HDMI, DisplayPort and VGA outputs for multi-monitor setups in MST mode. Plug a PD power adapter into the dock’s USB Type-C charging port to power the dock and simultaneously charge the host. Insert SD or microSD cards into the card slots, connect USB peripherals to the Type-A/Type-C data ports and use the 3.5 mm jack for audio output. Ensure the source device supports DP Alt Mode for video functionality.

Recommendations

Use a PD power adapter with appropriate wattage recommended for your laptop to ensure stable charging. Confirm your host device supports DisplayPort Alt Mode before relying on the dock for video output across multiple monitors.
