CLUB3D USB Type-C na VGA + USB 3.0 + USB Type-C nabíjanie Mini dock

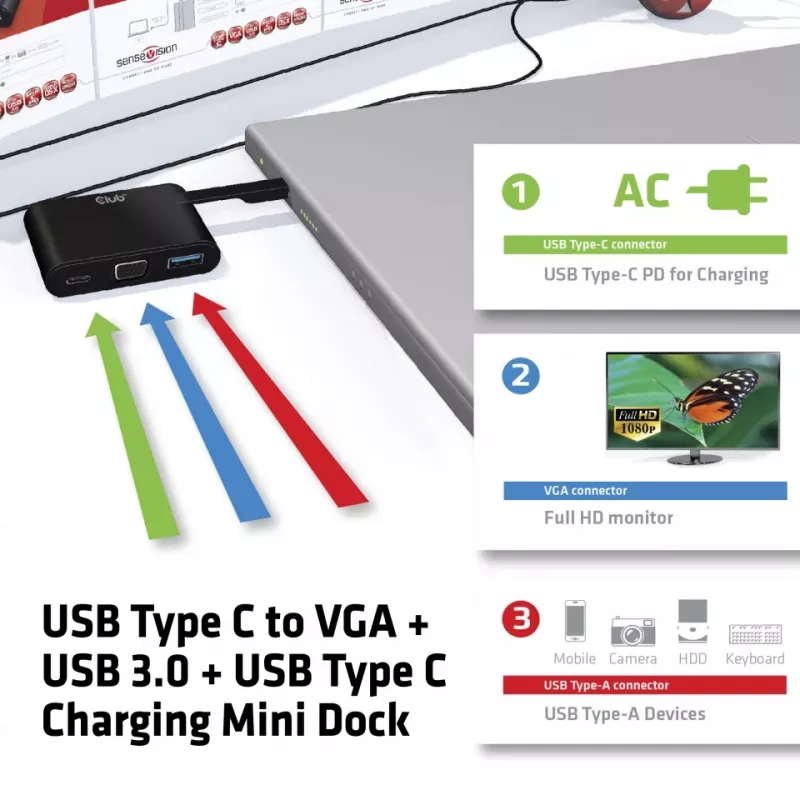

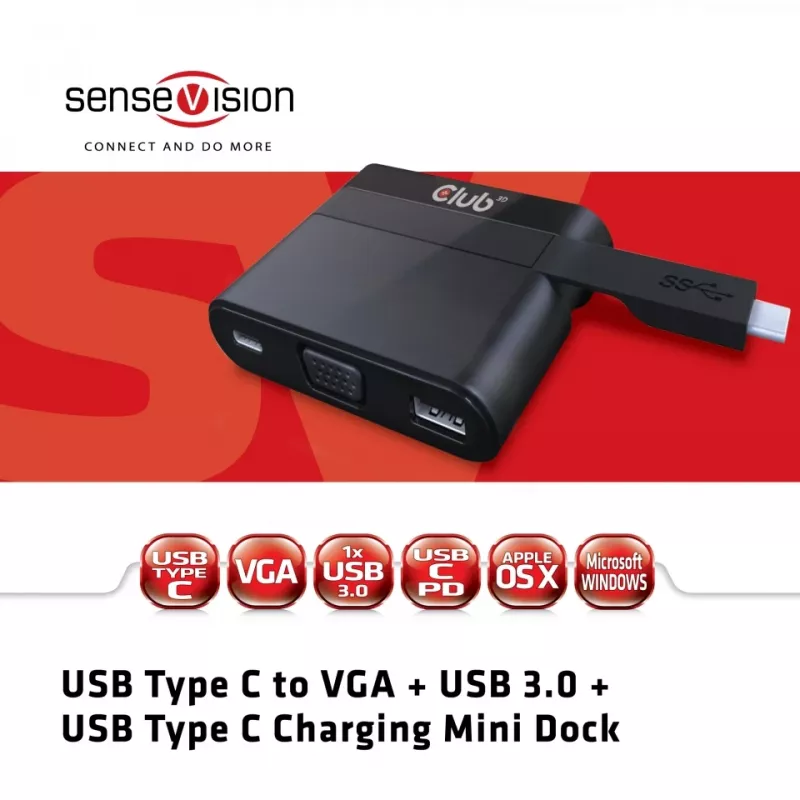

The CLUB3D Mini Dock USB Type C to VGA USB 3.0 (model CSV-1532) is a compact wired adapter for laptops and ultrabooks with a USB Type-C port that supports DisplayPort™ Alternate Mode. It provides a D-Sub VGA output supporting up to WQXGA 2560x1600 resolution for connecting an analog monitor, a USB 3.2 Gen 1 Type-A port for USB sticks, peripherals and external HDDs, and a USB Type-C PD input that can charge the host device with up to 60 W while the dock is in use. The mini dock is lightweight, portable and compatible with Microsoft Windows and Apple macOS when the host supports DisplayPort Alt Mode.

Advantages

This mini dock combines video, data and power in a single compact adapter, enabling connection of an analog VGA display and USB peripherals through one USB-C host connection. The USB 3.2 Gen 1 Type-A port delivers high-speed data transfer for storage devices and accessories, while the Type-C PD input allows simultaneous charging of the connected laptop with up to 60 W. Its small footprint and 51 g weight make it easy to carry and fit into mobile work setups.

Suitable for

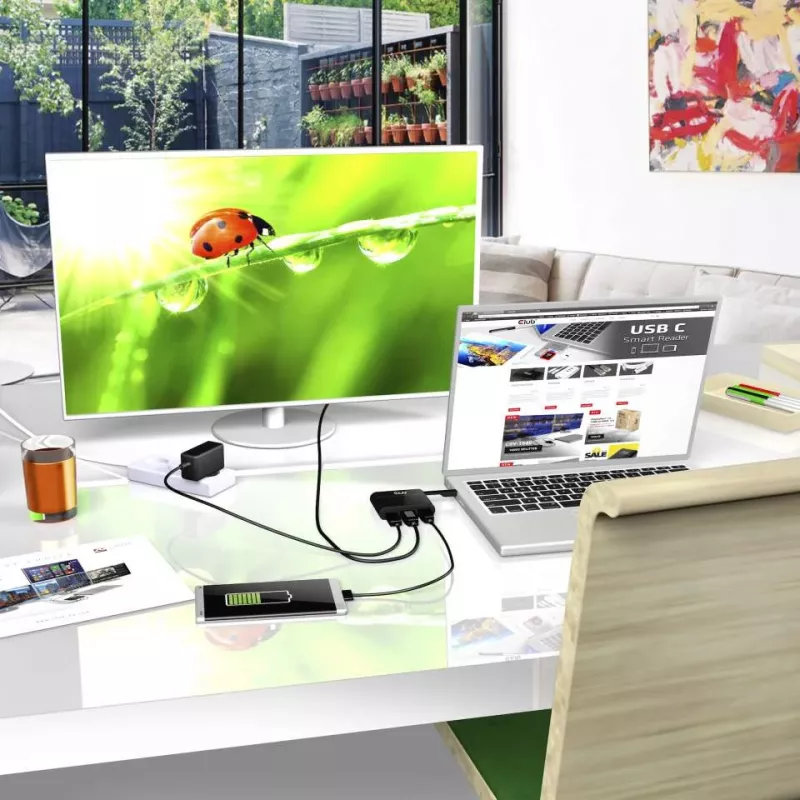

• Connecting a VGA projector or legacy monitor to a USB-C laptop
• Adding a USB-A port for flash drives, mice, keyboards or external HDDs
• Charging a USB-C laptop while using external display and peripherals

Key specifications

• Model: CLUB3D CSV-1532
• Host interface: USB Type-C (requires DisplayPort™ Alt Mode)
• Video output: VGA (D-Sub), up to WQXGA 2560x1600
• USB ports: 1 × USB 3.2 Gen 1 (Type-A), 1 × USB 2.0 (if present per source data)
• Power delivery: USB Type-C PD input, up to 60 W
• Connectivity: Wired
• Compatibility: Microsoft Windows and Apple macOS (requires DP Alt Mode)
• Dimensions: 78 × 19 × 60 mm
• Weight: 0.051 kg
• Colour: Black

How to use

Connect the mini dock to your laptop’s USB-C port that supports DisplayPort Alternate Mode. Attach a VGA monitor to the D-Sub port and connect USB devices to the USB 3.0 Type-A port. If you need to charge the laptop while using the dock, connect a USB-C PD power adapter to the dock’s Type-C input (supporting up to 60 W). Ensure your operating system supports the connected devices; no additional drivers are usually required for modern Windows and macOS versions when DP Alt Mode is available.

Recommendations

Use a USB-C power adapter rated up to 60 W to ensure adequate charging while driving an external display. For best video quality over VGA, use a good-quality VGA cable and verify the monitor supports the requested resolution. Confirm the laptop’s USB-C port supports DisplayPort Alt Mode before use.
