Cobbler-Breakout-Kit ALLNET ALL-BRICK-0223 pre Brick'R'knowledge

The ALLNET ALL-BRICK-0223 Cobbler breakout kit for Brick'R'knowledge is an advanced educational set containing 111 bricks and components designed to teach and explore electrical engineering concepts. The set supports construction of advanced circuits and is compatible with Brick"R"knowledge modules, enabling experiments from basic school lessons to university-level and engineering prototyping. Special connectors and an open-source design allow building large circuits, adding custom components and performing RF experiments; future integration with oscilloscopes and signal generators is planned to meet industrial needs.

Advantages

This Advanced Set combines a wide range of passive and active electronic components with specialized bricks and connectors to enable complex, modular circuit building. The open-source approach permits extension and customization of components, while the included RF-capable parts make the kit unique for radio-frequency experiments. The kit is compatible with Brick'R'knowledge educational methodology and supports hands-on learning across different education levels.

Suitable for

• Classroom lessons in elementary and secondary schools
• University labs and engineering coursework
• Hands-on prototyping and hobby electronics projects
• RF experiments and signal-related projects

Key specifications

• Model: ALLNET ALL-BRICK-0223 Cobbler breakout kit for Brick'R'knowledge
• Contents: 111 bricks and components (see list below)
• Weight (kit): 3.05 kg
• Brand: ALLNET
• MPN: ALL-BRICK-0223
• EAN: 4038816041029

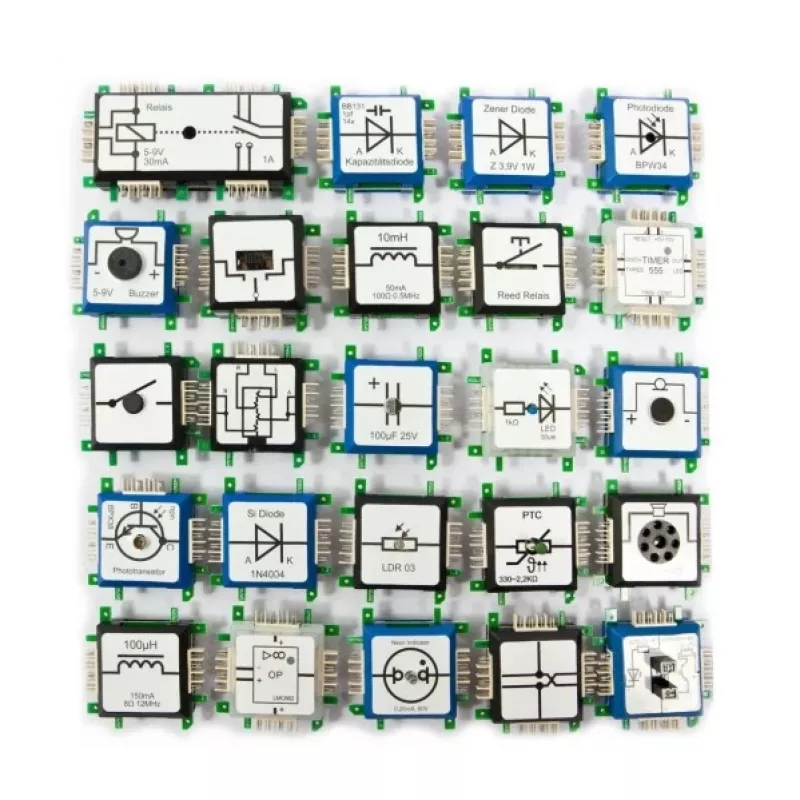

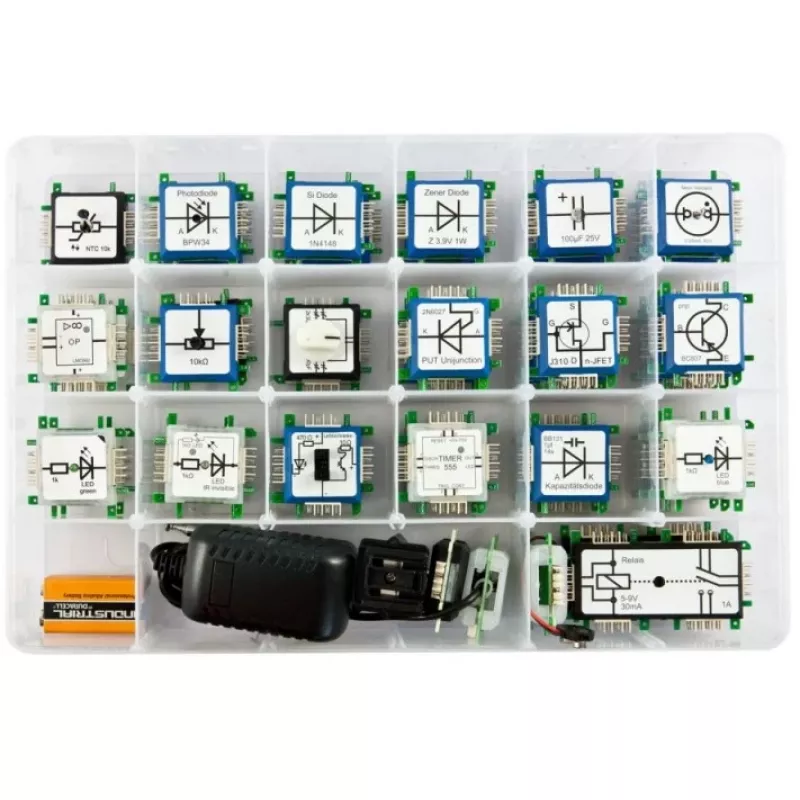

• Main components include: 3.5 mm stereo + mic jack (4-pole), 9V power supply adapter with 1A fuse and ground, antenna, battery adapter, buzzer, photodiode BPW34, germanium diode AA118, varactor diode BB131, standard diodes (1N4004, 1N4148), zener diode 3.9V, glow lamp, manual for Advanced Set
• Capacitors: multiple fixed and variable types (1µF, 10µF 25V, 100µF 25V electrolytic, 100nF 50V, 10nF, 1nF, 33pF; variable 2x30pF/2x300pF, 2–30pF, 9.8–60pF)
• LEDs: blue, yellow, green, IR, red; loudspeaker; light barrier; microphone
• ICs and semiconductors: LM386, LMC662, 555 timer, PUT 2N6027, JFET J310, MOS 2N7002, BC817, BC807, phototransistor BPX38
• Inductors/coils: 10 µH, 22 µH, 100 µH, 10 mH
• Relays: reed relay and two relays 8–12V 30 mA
• Resistors and sensors: NTC 10k, PTC 2.2k, LDR photoresistor, assorted fixed resistors (100k, 100Ω, 10k, 1k, 330Ω, 4.7k)
• Miscellaneous: potentiometer 10 kΩ, buzzer, buttons, switches, universal brick, multiple wiring bricks and crossing/ground/ corner lines

How to use

Follow the included Advanced Set manual to assemble modules and circuits step by step. Start by identifying bricks and components by their markings and the manual’s inventory. Use the special connectors and wiring bricks to build the required circuit topologies; place active and passive components in the brick holders according to circuit diagrams. For RF experiments, connect the antenna and varactor/coil combinations as described in the instructions. Provide power via the 9V adapter or battery adapter only after verifying correct connections. When integrating additional or custom components, respect polarity and manufacturer ratings.

Recommendations

Use the kit under appropriate supervision in educational settings and observe standard safety precautions: de-energize circuits before changing components, limit supply voltages to rated values, and avoid short circuits. For RF and oscilloscope work, maintain correct grounding and shielding practices and consult the manual when adapting the kit for measurement equipment.
