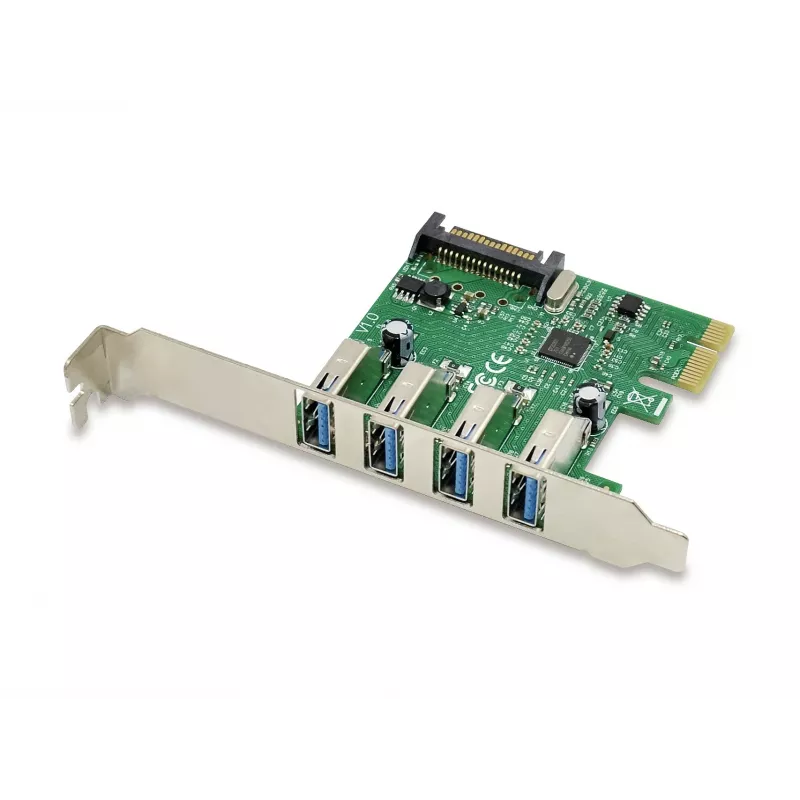

Conceptronic EMRICK02G rozhranie/karta adaptér interný USB 3.2 Gen 1 (3.1 Gen 1)

The Conceptronic EMRICK02G is an internal PCIe interface card that adds four SuperSpeed USB 3.0 / USB 3.2 Gen 1 ports to a desktop PC. Designed for compact installation, the card supports high-speed data transfers up to 5 Gbit/s and is compatible with a wide range of operating systems including Windows 10, 8.1, 8, 7, XP and Linux (Kernel 2.6.31). Its passive cooling and small form factor make it suitable for typical desktop configurations.

Advantages

The EMRICK02G delivers four additional USB 3.0 ports using a PCIe host interface, providing transfer rates up to 5 Gbit/s for fast file copies and device connectivity. Its internal design preserves external ports while offering broad OS compatibility. The card is lightweight, has passive cooling for silent operation, and comes in a distinctive green colour that fits standard PC interiors.

Suitable for

• Expanding USB connectivity on desktop PCs
• Transferring large files to and from external drives
• Connecting multiple USB peripherals (printers, scanners, storage)
• Systems requiring additional internal USB ports without external hubs

Key specifications

• Model: Conceptronic EMRICK02G
• Host interface: PCIe
• Output interface: USB 3.2 Gen 1 (SuperSpeed USB / USB 3.0)
• Maximum data rate: 5 Gbit/s
• Compatibility: Windows 10, 8.1, 8, 7, XP; Linux Kernel 2.6.31
• Dimensions: 65 x 68 x 1.6 mm
• Weight: 0.045 kg
• Cooling: Passive
• Product colour: Green

How to use

Power off the desktop PC and open the case. Insert the Conceptronic EMRICK02G into an available PCIe slot on the motherboard, secure the card with the slot screw and close the case. Power on the PC, install any included drivers or use the operating system's native drivers, then connect USB devices to the new SuperSpeed ports. Verify the device manager or system settings to ensure the card is recognised and operating at USB 3.0 speeds.

Recommendations

For reliable high-speed transfers, connect USB 3.0-compatible cables and devices. Ensure the PCIe slot provides sufficient bandwidth and that your system BIOS is configured to enable the slot. Use the card in a well-ventilated case despite passive cooling and keep drivers updated for best compatibility.
