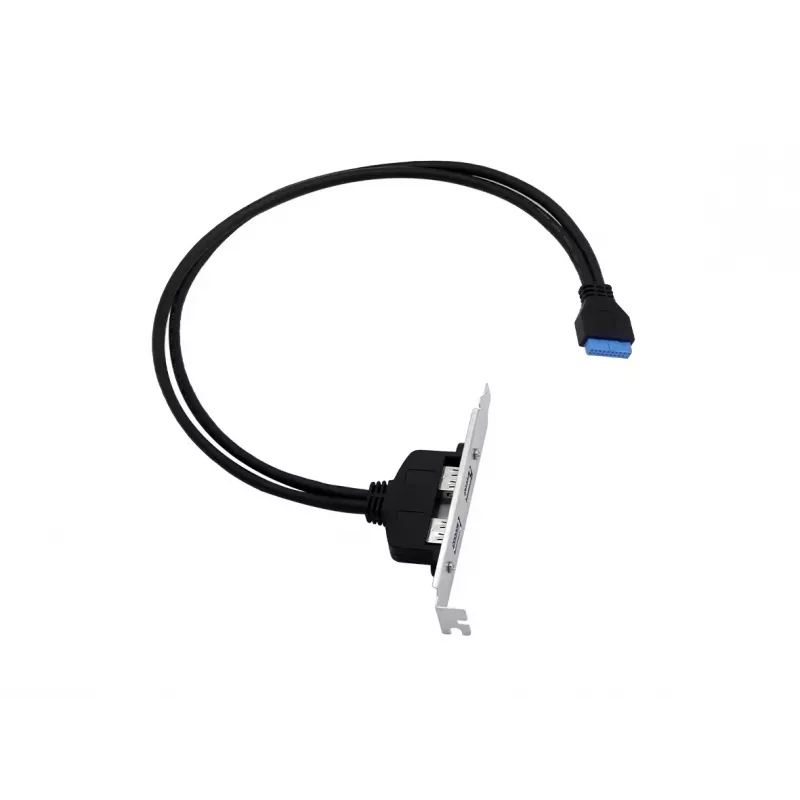

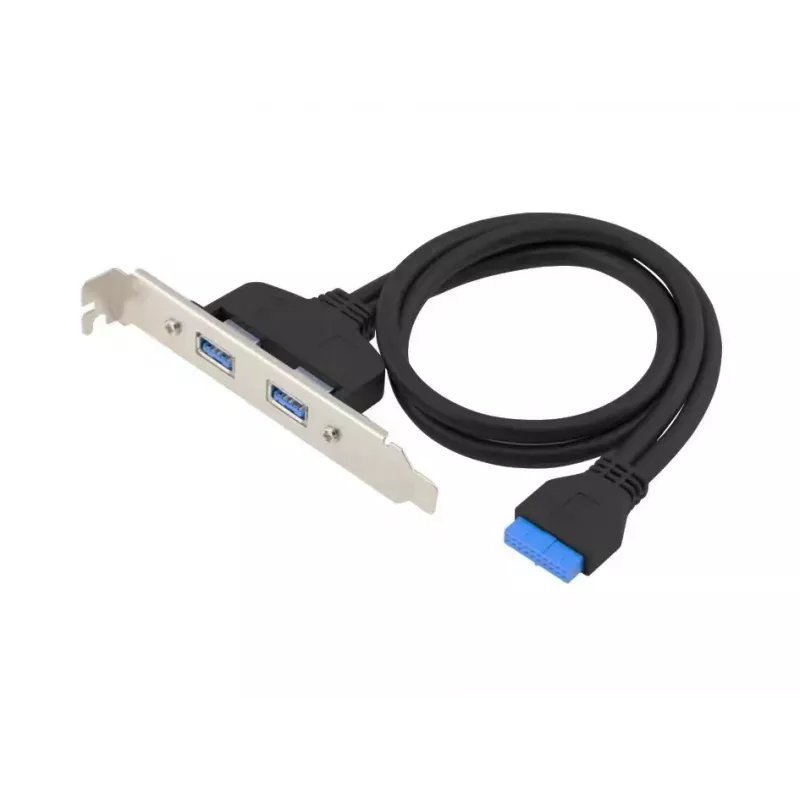

Conceptronic EMRICK11B 19-kolíková zásuvka na dual-USB-A zásuvka USB 3.0 adaptér

The Conceptronic EMRICK11B is an internal USB adapter that converts a 19-pin USB 3.0 motherboard header to two external USB-A female ports. It supports USB 3.2 Gen 1 (also marketed as USB 3.1 Gen 1) for high-speed data transfer and is designed for straightforward installation into a standard PC slot. The compact black adapter, with a width of 21.5 mm and a maximum cable length of 0.5 m, expands your system with two additional external USB 3.0 ports for connecting peripherals.

Advantages

The adapter provides two external USB-A ports from a single 19-pin internal header without requiring additional drivers, enabling high-speed transfers compatible with USB 3.2 Gen 1 devices. Its compact design and 0.5 m cable length make it suitable for typical PC chassis layouts, and the unit is supplied in black to match common interior colours.

Suitable for

• Adding two external USB 3.0 ports to a desktop PC
• Connecting external storage devices such as SSDs or flash drives
• Attaching peripherals like keyboards, mice, or USB hubs
• Systems with an available 19-pin USB 3.0 internal header

Key specifications

• Brand: CONCEPTRONIC
• Model: EMRICK11B
• Host interface: USB 3.0 internal (19-pin)
• Output interface: USB 3.2 Gen 1 (USB 3.1 Gen 1)
• Colour: Black
• Width: 21.5 mm
• Maximum cable length: 0.5 m
• Weight: 0.1 kg
• Made in: China

How to use

Turn off and unplug the PC before installation. Insert the adapter bracket into a free rear expansion slot, then connect the adapter cable to the motherboard's 19-pin USB 3.0 header following the header pin orientation. Secure the adapter if necessary and route the cable to avoid sharp bends. After reassembling and powering on the PC, the external USB-A ports will be available for connecting USB devices that support USB 3.2 Gen 1 speeds.

Recommendations

Use the adapter with a compatible 19-pin internal USB header and avoid forcing the connector; ensure cable routing does not obstruct fans or moving parts. For maximum transfer speeds, connect USB 3.2 Gen 1 devices and use quality USB cables.
