CORAB parabolická anténa 90 cm Standard biela (COR-900SAE-J) - satelit

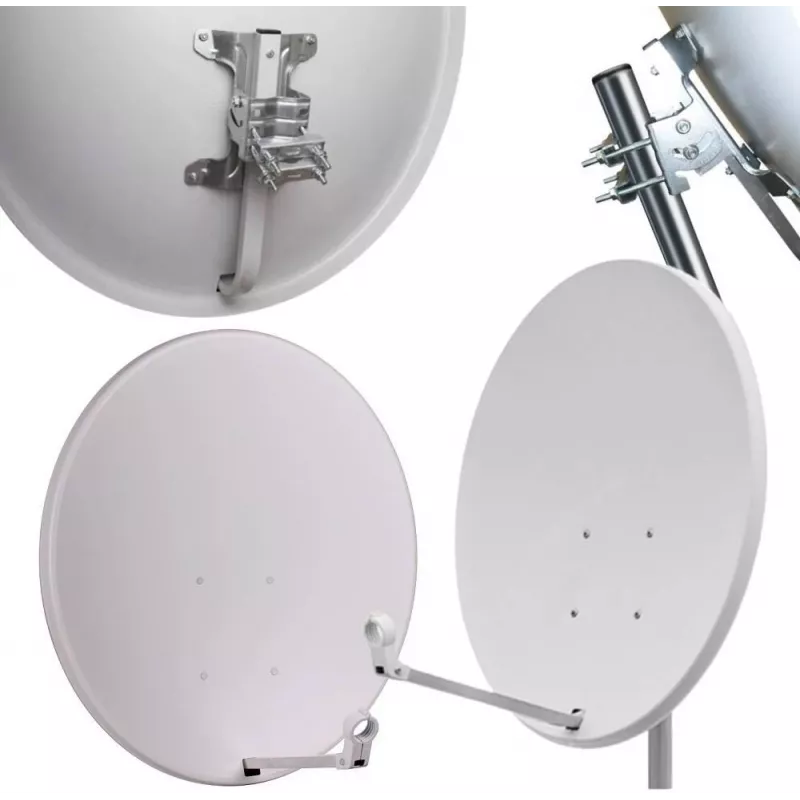

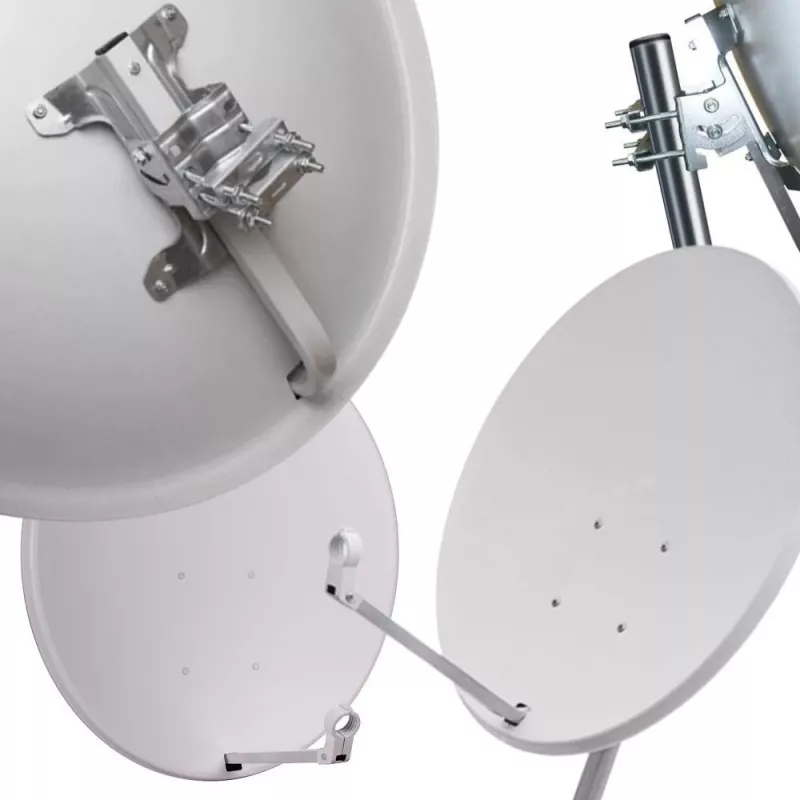

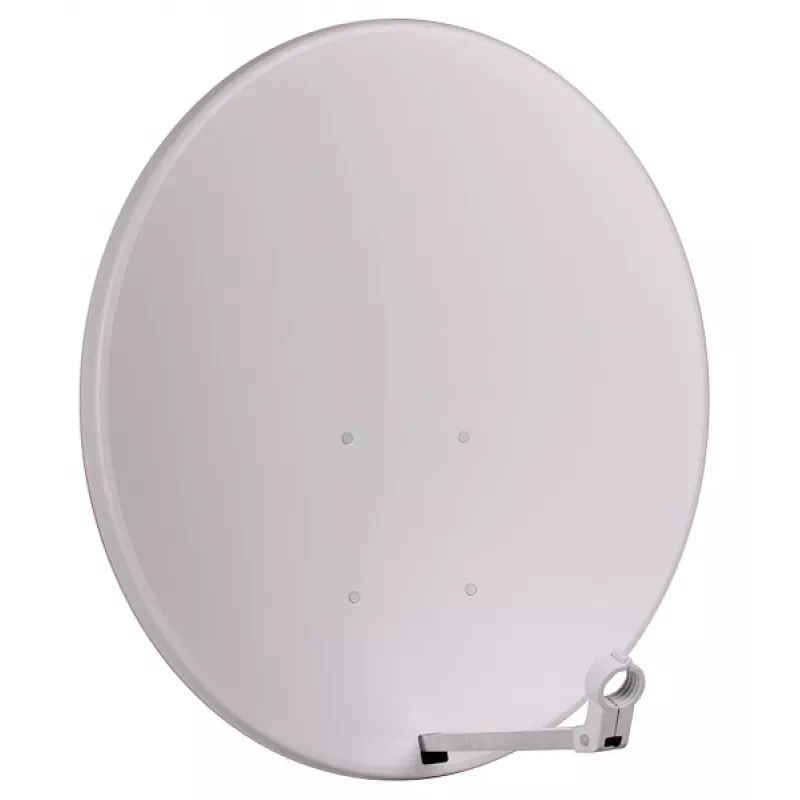

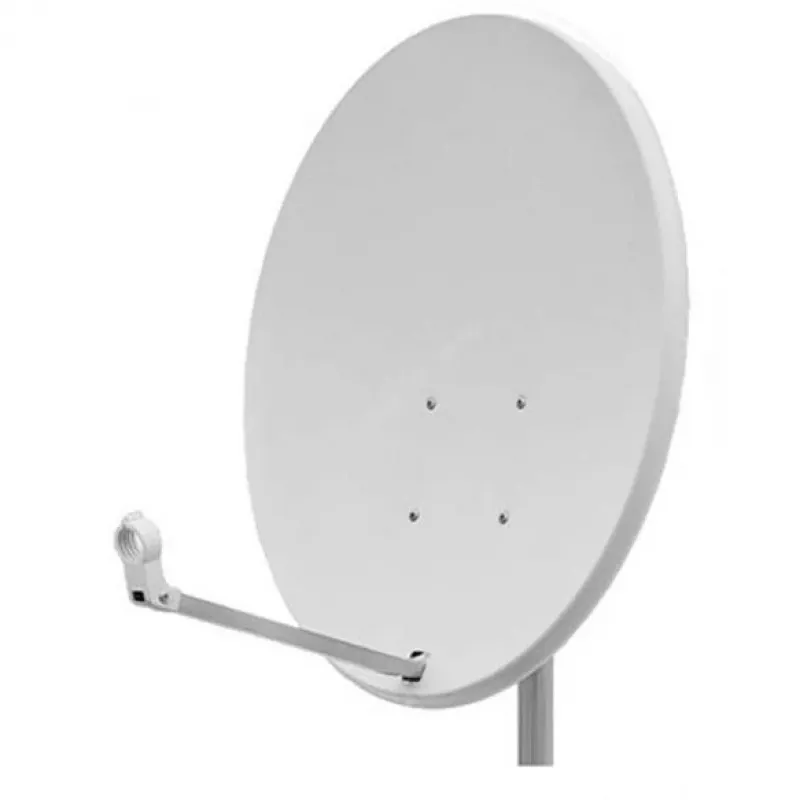

Satellite dish antenna with a 90 cm offset reflector, delivering exceptional signal gain up to 39.8 dB across the Ku-band for reliable reception even in fringe areas. The galvanized steel construction with powder-coated white finish ensures long-term durability against harsh weather conditions.

Advantages

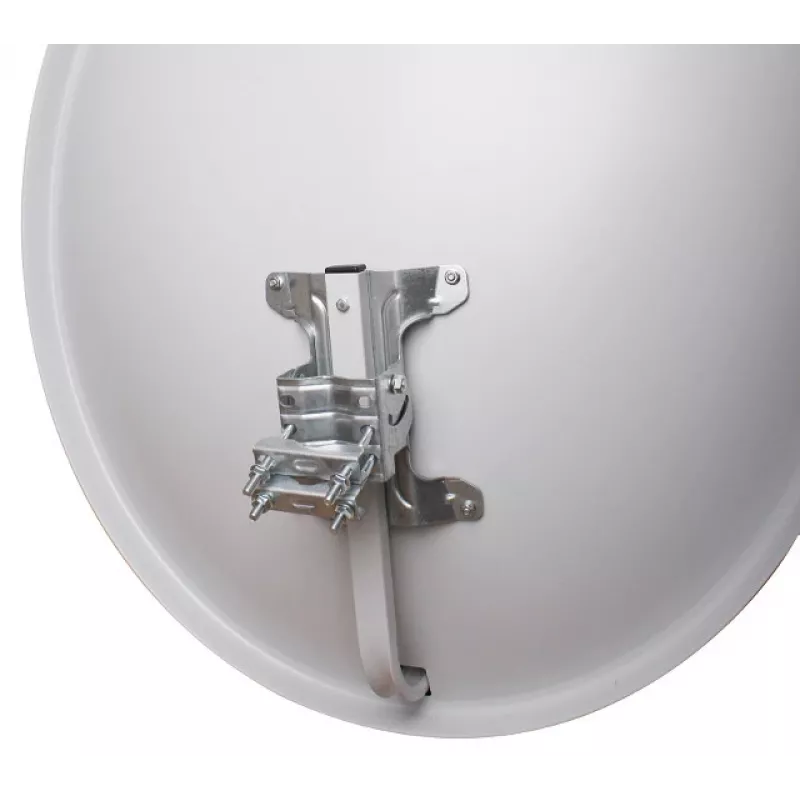

High-gain performance with precise offset design minimizes interference and maximizes signal capture. Robust materials withstand wind speeds up to 150 km/h and temperatures from -40°C to +60°C. Versatile mast clamp fits 32-60 mm poles, and the 40 mm LNB holder accommodates standard LNBs. Easy elevation adjustment from 0 to 90 degrees simplifies installation.

Suitable for

• Home satellite TV reception in urban and rural areas
• Multi-satellite setups with motorized or multi-feed systems
• Professional installations requiring reliable signal in challenging environments
• Users needing a durable, weather-resistant dish for long-term outdoor use

Key specifications

• Dish type: Offset
• Reflector dimensions (W x H): 840 x 900 mm
• Reflector material: Galvanized steel with powder coating
• Gain: 38.5 dB @ 10.7 GHz, 39.2 dB @ 11.7 GHz, 39.8 dB @ 12.75 GHz
• Offset angle: 26°
• F/D ratio: 0.6
• LNB clamp diameter: 40 mm
• Mast clamp diameter: 32 - 60 mm
• Elevation adjustment: 0 - 90°
• Wind load: operational 120 km/h, survival 150 km/h
• Operating temperature: -40°C to +60°C
• Frequency range: 10.7 - 12.75 GHz

Recommendations

For optimal performance, pair with a high-quality Ku-band LNB and use a sturdy mast. Ensure clear line of sight to the satellite and consider professional alignment for best results. The dish's robust build makes it ideal for coastal or high-wind locations.
