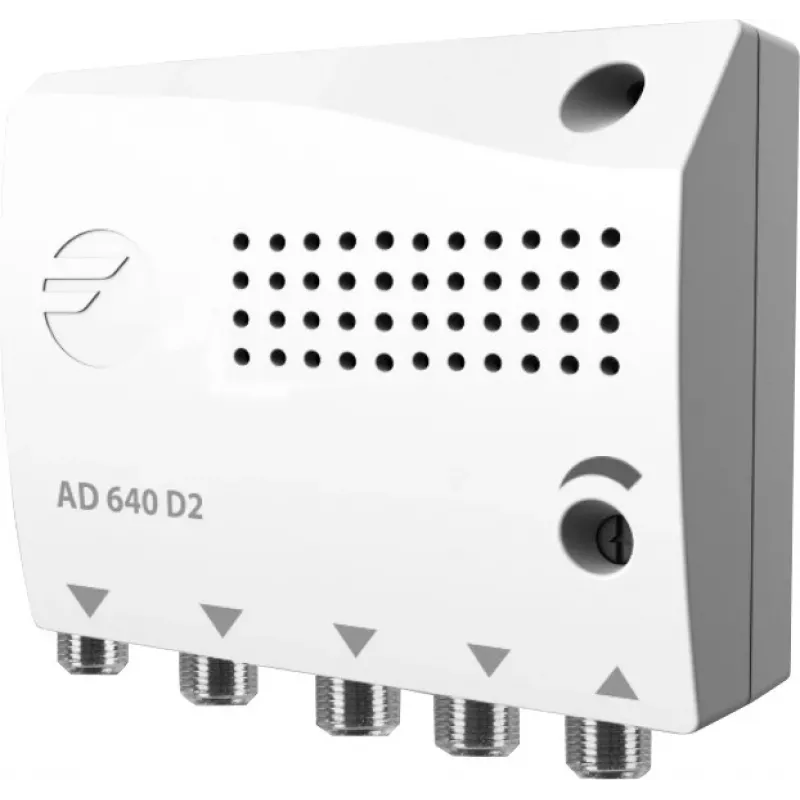

CORAB anténny zosilňovač FAGOR AD640 1 vstup 4 výstupy

The CORAB Antenna Amplifier FAGOR AD640 is a high-class indoor amplifier with UHF band gain adjustment. It is designed for installation away from the signal source (antenna) and for distributing TV/FM signals to one or more receivers outside the main socket.

Key features

• Indoor amplifier with gain adjustment for UHF bands
• Designed for installation away from the signal source
• For distribution of TV/FM signals to one or more receivers
• 1 input and 4 outputs

Specifications

• Brand: Corab
• MPN: AD640
• Model: AD640
• Mains voltage: 195 ÷ 265 V a/c
• Frequency band: 47 ÷ 694 MHz
• Gain: 18 dB
• Adjustment: 16 dB
• Noise level: 4 dB
• Number of outputs: 4
• Maximum output level: 100 dBμV
• Input-output impedance: 75 Ω
• Consumption: 1.5 W
• Operating temperature range: 0 ÷ 50 °C
