CoreParts MBA2146 napájací zdroj/invertor interiérový 90 W čierna

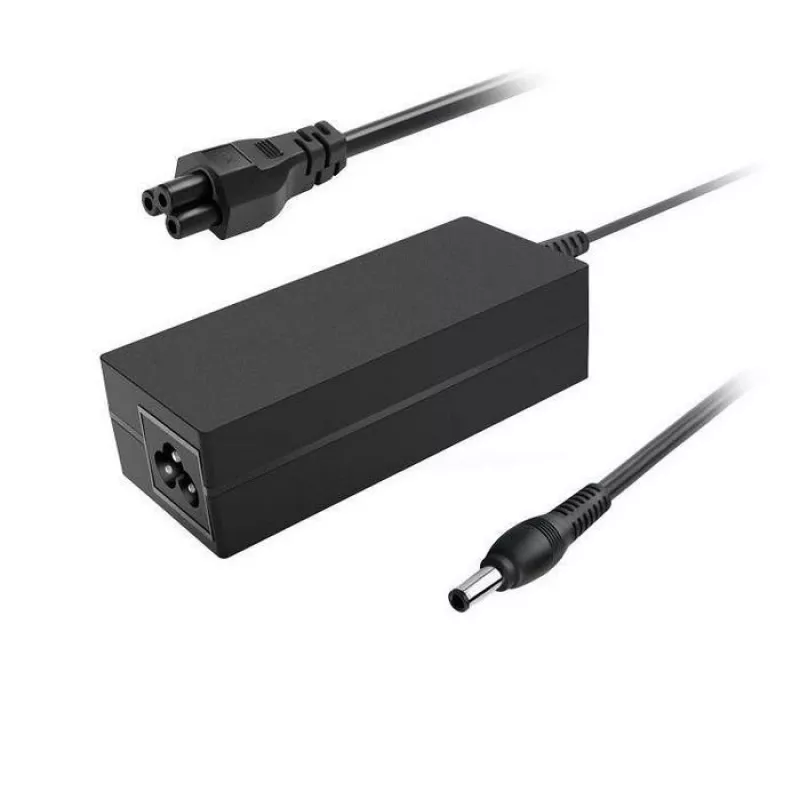

The CoreParts MBA2146 is a 90W indoor power adapter/inverter from MicroBattery designed for versatile indoor use. It accepts an input voltage range of 110–230V (minimum 100V) at 50–60Hz and provides a DC output of 4.74A through a 5.5 × 2.5 mm connector. The adapter has a compact plastic housing in black with dimensions of 60 mm (width) × 40 mm (depth) × 80 mm (height), suitable for replacing or upgrading original adapters with comparable specifications.

Advantages

The adapter delivers a stable 90W power output in a compact form factor, supporting a wide mains voltage range for use in different regions. Its standard 5.5 × 2.5 mm connector and 4.74A output make it compatible with devices requiring similar power characteristics. The black plastic housing is durable and keeps the unit lightweight and easy to position indoors.

Suitable for

• Indoor electronics that require a 90W DC adapter with a 5.5 × 2.5 mm connector
• Replacement of original adapters with matching voltage and current ratings
• Small office and home equipment where a compact power adapter is needed

Key specifications

• Brand: MicroBattery
• Model / MPN: MBA2146
• Power output: 90W
• Output current: 4.74A
• Connector: 5.5 × 2.5 mm
• Input voltage: 110–230V (minimum 100V)
• Frequency: 50–60Hz
• Housing: plastic, black
• Dimensions: 60 × 40 × 80 mm (W × D × H)
• EAN: 5712505450116

How to use

Confirm that the device you intend to power matches the adapter's output voltage, connector size (5.5 × 2.5 mm) and current rating (4.74A). Connect the adapter to the mains supply within the supported input range (110–230V, minimum 100V) and plug the DC connector into the device. Place the adapter in a well-ventilated indoor location on a stable surface, avoiding exposure to moisture and extreme temperatures.

Recommendations

Use the CoreParts MBA2146 only with compatible equipment that requires similar voltage and current. If unsure about compatibility, check device specifications or consult a technician. Avoid blocking ventilation, and disconnect the adapter from the mains before cleaning or when not in use for extended periods.
