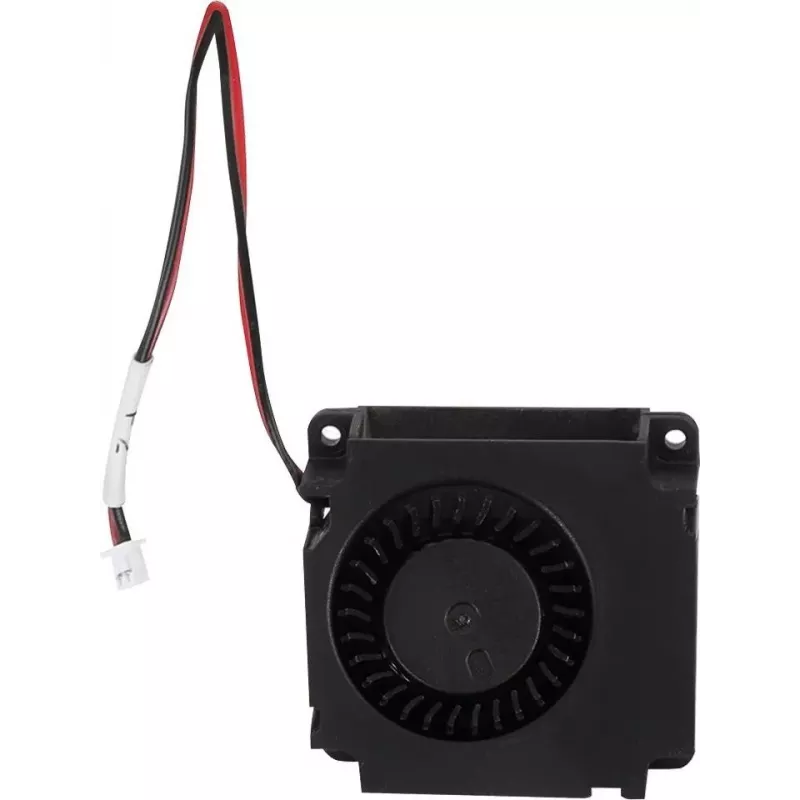

Creality Ender-3 S1 Pro 4010 ventilátor 3205010301

The Creality Ender-3 S1 Pro 4010 Blower Fan is a part cooling fan engineered to deliver focused airflow for improved print quality on the Ender-3 S1 Pro 3D printer. Its centrifugal design generates 3 CFM at 6000 RPM, ensuring rapid cooling of freshly extruded filament to reduce warping and stringing on overhangs and bridges.

Advantages

Operating at 24V DC with a low noise level of 30 dBA, this fan maintains a quiet printing environment while providing reliable performance. The sleeve bearing design and PBT plastic housing contribute to a lifespan of 30,000 hours, making it a durable component for continuous use. The 120 mm cable with a JST-XH 2-pin connector allows for straightforward installation without soldering.

Suitable for

• Creality Ender-3 S1 Pro 3D printer
• Users seeking a replacement part cooling fan
• Applications requiring 24V DC blower fans with 40x40x10 mm dimensions

Key specifications

• Fan type: Blower (centrifugal)
• Dimensions: 40 x 40 x 10 mm
• Rated voltage: DC 24V
• Rated current: 0.08A
• Power consumption: 1.92W
• Airflow: 3 CFM
• Noise level: 30 dBA
• Fan speed: 6000 RPM
• Bearing type: Sleeve
• Connector: JST-XH 2-pin
• Cable length: 120 mm
• Housing material: PBT plastic
• Mounting hole spacing: 32 mm
• Operating temperature: -10°C to 60°C
• Lifespan: 30,000 hours

Recommendations

For optimal cooling performance, ensure the fan is securely mounted and the connector is properly seated. Regularly inspect for dust accumulation to maintain airflow and extend the fan's service life.
