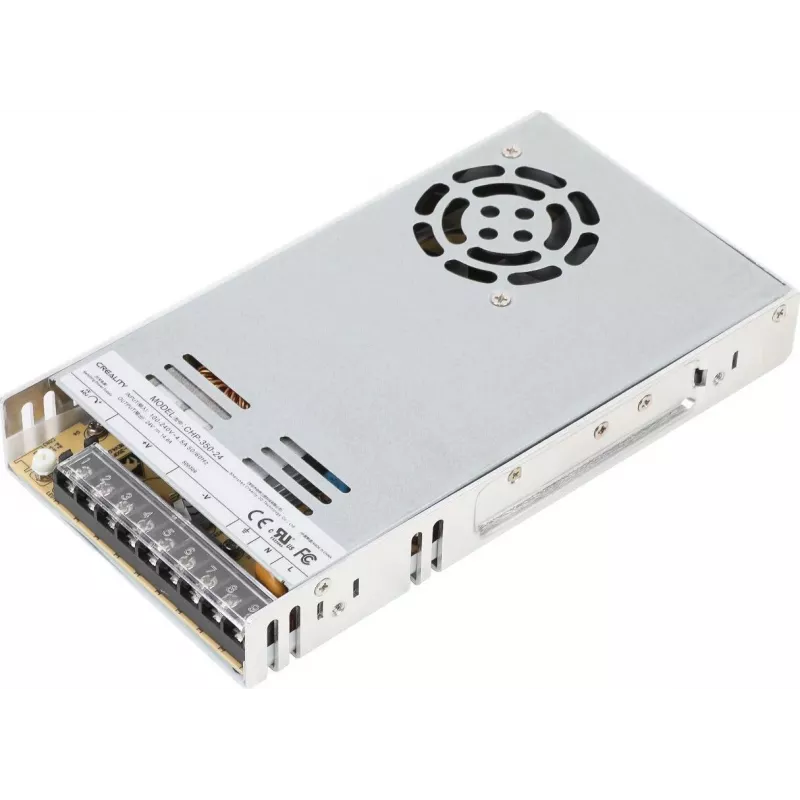

Creality K2 Plus napájací zdroj CHP-350-24 350W 24V 14,6A spínaný napájací zdroj 4004170014

The Creality K2 Plus Power Supply CHP-350-24 delivers stable 24V DC output at up to 14.6A, making it a direct replacement for the original unit in the K2 Plus 3D printer. Unlike generic power supplies, this unit is built with active cooling and protection against overload, overvoltage, and short circuits to ensure consistent performance during long prints.

Highlights

• 350W output power for demanding 3D printing tasks
• Wide input voltage range: 100-240V AC, 50/60 Hz
• Active cooling with built-in fan
• Metal enclosure for durability
• Output voltage adjustable via potentiometer

In daily use

This switching power supply is designed for the Creality K2 Plus 3D printer. It converts AC mains power to the 24V DC required by the printer's electronics and heated components. The built-in fan keeps the unit cool under load, while the metal housing protects internal components. The output voltage can be fine-tuned using the potentiometer, allowing precise calibration if needed.

Full specifications

• Product Type: Switching Power Supply
• Compatibility: Creality K2 Plus 3D Printer
• Input Voltage (AC): 100-240V
• Input Frequency: 50/60 Hz
• Output Voltage (DC): 24V
• Output Current (DC): 14.6A
• Output Power: 350W
• Cooling Method: Active (Built-in Fan)
• Protection Features: Overload, Overvoltage, Short Circuit
• Efficiency: >80%
• Operating Temperature: -10°C to 50°C
• Mounting Type: Screw Terminal Block
• Housing Material: Metal Enclosure
• Number of Outputs: 1
• Output Voltage Adjustment: Yes (via potentiometer)

Final note

This power supply is a direct replacement for the Creality K2 Plus, ensuring your printer operates reliably.
