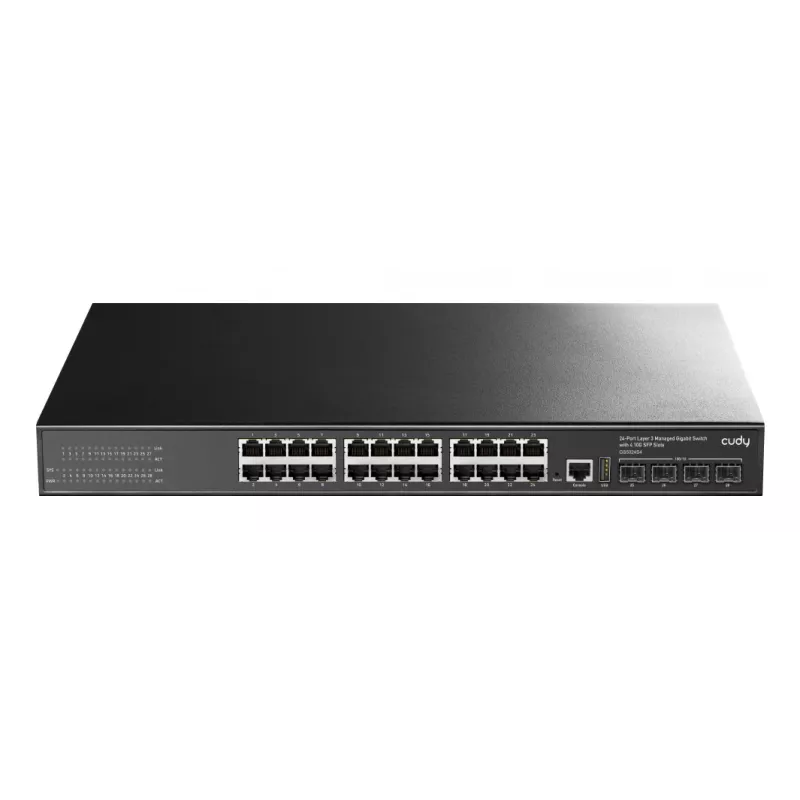

CUDY GS5024S4 Managed Gigabit switch, 24-portový 10/100/1000 Mbps, 4x 10G SFP+, L2+

The CUDY GS5024S4 is a high-performance managed Gigabit switch designed for small to medium-sized businesses and enterprise edge networks. Featuring 24 Gigabit Ethernet ports and 4 10G SFP+ uplink ports, it delivers robust switching capacity of 128 Gbps and a forwarding rate of 95.23 Mpps. With advanced L2+ management features, including comprehensive VLAN support, QoS, and security protocols, this switch ensures reliable and secure network connectivity.

Advantages

Fanless design ensures silent operation, making it ideal for noise-sensitive environments. Rack-mountable 1U form factor saves space. Supports jumbo frames up to 9KB for improved data throughput. Advanced security features like IP-MAC-Port-VID binding, ARP inspection, and 802.1X authentication protect your network.

Suitable for

• Small and medium businesses requiring managed network infrastructure
• Enterprise edge or distribution layer deployments
• Surveillance systems, VoIP, and data-intensive applications
• Environments where silent operation is critical (offices, classrooms)

Key specifications

• 24 x 10/100/1000 Mbps Gigabit Ethernet ports
• 4 x 10 Gigabit SFP+ uplink ports
• Switching capacity: 128 Gbps
• Packet forwarding rate: 95.23 Mpps
• MAC address table: 16K entries
• Jumbo frame support: 9KB
• VLAN support: 802.1Q Tag VLAN, Port-based, Protocol-based, Private, GVRP, Voice VLAN
• QoS: 8 priority queues, 802.1p CoS/DSCP, SP/WRR scheduling, Bandwidth Control
• Security: IP-MAC-Port-VID Binding, ARP Inspection, DoS Defend, 802.1X, RADIUS, TACACS+
• Management: Web GUI, CLI (Console, Telnet, SSH), SNMP v1/v2c/v3, RMON
• Spanning Tree: STP, RSTP, MSTP
• Link Aggregation: Static, LACP (up to 8 groups, 8 ports/group)
• IGMP Snooping: v1/v2/v3, Fast Leave, Querier
• Power supply: Internal, 100-240V AC
• Cooling: Fanless
• Mounting: Rack-mountable (1U)
• Operating temperature: 0°C to 50°C (32°F to 122°F)
• Certifications: CE, FCC, RoHS

Recommendations

For optimal performance, use high-quality SFP+ modules and CAT6a or higher cabling for 10G connections. Configure VLANs and QoS to prioritize critical traffic. Regularly update firmware via the web interface to ensure security and stability.
