CyberPower BP48VP2U03 UPS batéria olovená (VRLA) 12 V 6 Ah

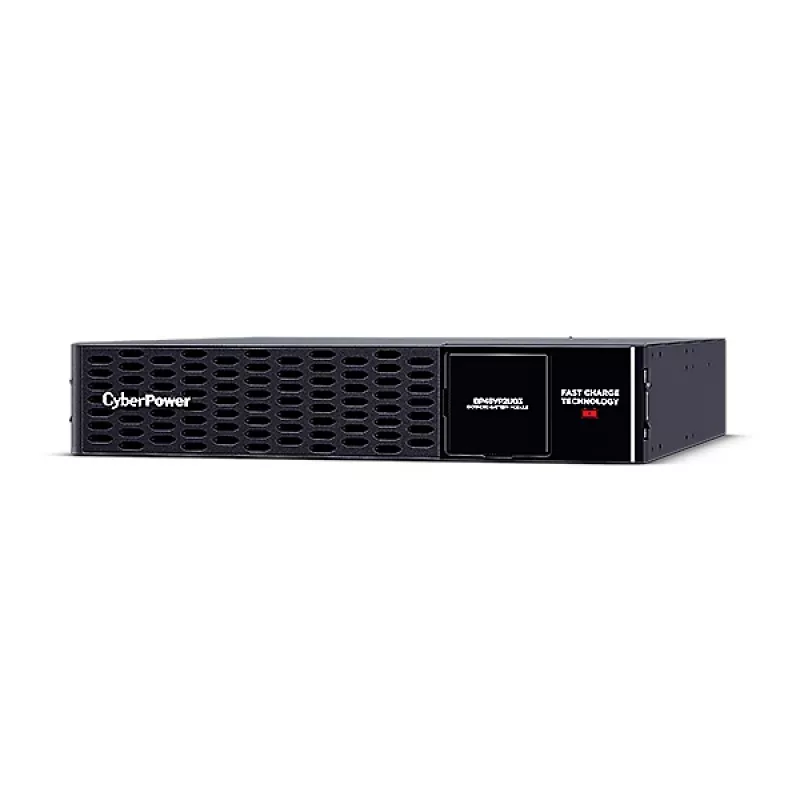

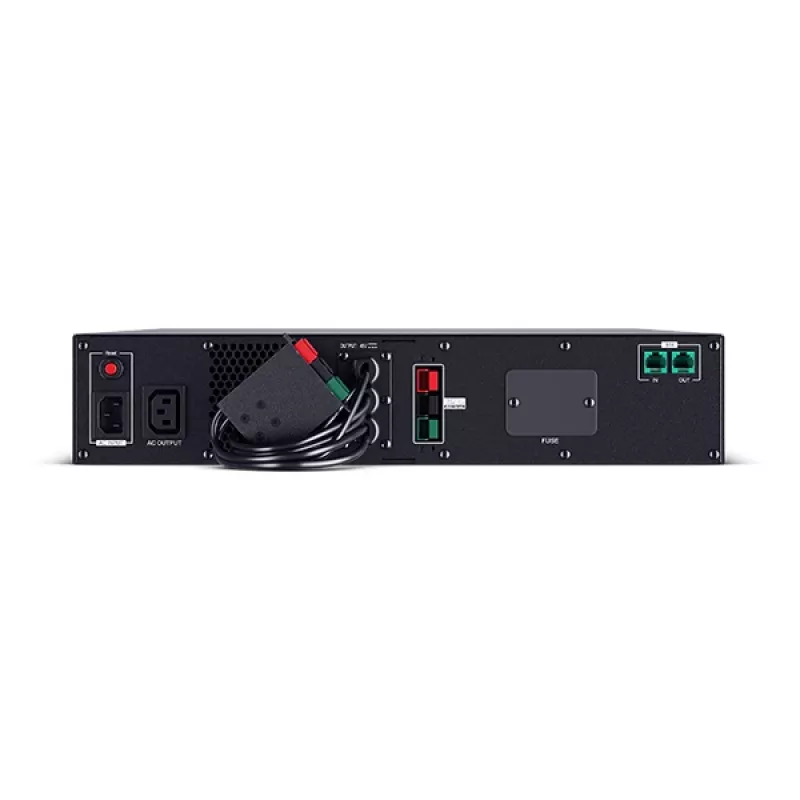

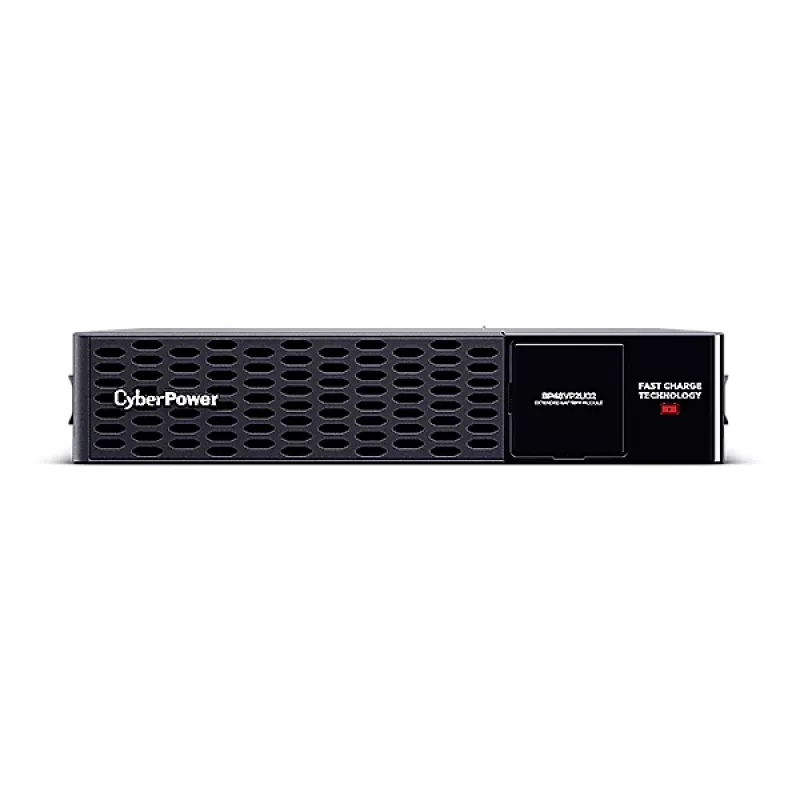

CyberPower BP48VP2U03 is an Extended Battery Module (EBM) with sealed lead‑acid (VRLA) batteries designed to extend runtime for compatible UPS systems. The module includes 16 batteries (12 V, 6 Ah each), a built‑in charger that can charge directly from the utility, DC plug‑and‑play power connectors for daisy‑chaining multiple EBMs, and a metal enclosure suitable for industrial and data center use. The unit is hot‑swappable, allowing battery replacement without interrupting connected loads.

Advantages

The BP48VP2U03 provides prolonged runtime for UPS systems using stable sealed lead‑acid cells and supports multiple EBMs via DC plug‑and‑play connections. Its built‑in charger reduces total charging time when charging several modules simultaneously by allowing direct utility charging. Hot‑swappable battery packs and an industrial‑grade metal enclosure increase serviceability and durability in critical applications.

Suitable for

• Data centers and server rooms
• Network closets and telecommunications equipment
• Industrial control systems and critical infrastructure
• Any UPS installation requiring extended runtime

Key specifications

• Model: BP48VP2U03
• Battery type: Sealed lead‑acid (VRLA)
• Cell voltage / capacity: 12 V, 6 Ah (16 batteries included)
• Weight: 41.1 kg
• Product colour: Black
• Dimensions (W × H): 433 mm × 86.5 mm; Package: 575 × 275 × 765 mm
• Compliance: RoHS
• Manufacturer country: China

How to use

Install the BP48VP2U03 in a compatible UPS rack or cabinet following the UPS manufacturer’s installation guide. Connect the DC plug‑and‑play power connector between the UPS and the EBM or between multiple EBMs as required. For charging, the module can be charged through the UPS or directly from the utility using the built‑in charger; follow the supply and ventilation recommendations in the UPS and EBM manuals. Replace individual hot‑swappable battery packs while the module is online, observing standard safety procedures and wearing appropriate protective equipment.

Recommendations

Place the module in a well‑ventilated, temperature‑controlled environment, avoid exposure to extreme heat or moisture, and follow manufacturer instructions for disposal and recycling of sealed lead‑acid batteries.
