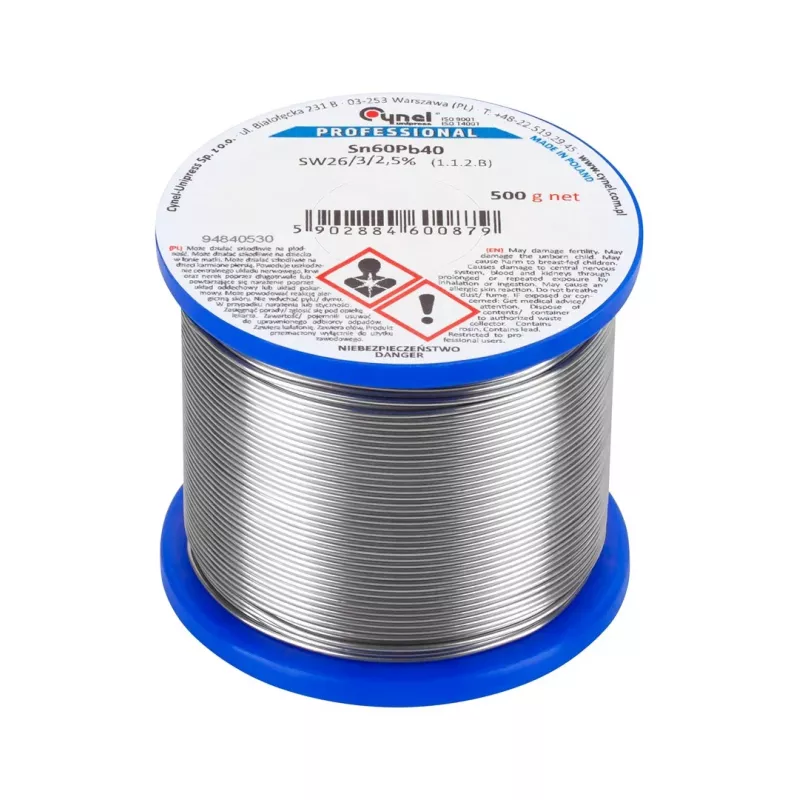

CYNEL LEC-LUT0105-500 olovnatý spájkovací drôt Sn60Pb40 0,70mm 500g kolofóniové jadro

For reliable, consistent solder joints in electronics assembly and repair, the CYNEL LEC-LUT0105-500 delivers a classic Sn60Pb40 alloy in a convenient 500g spool. Its 0.70mm diameter strikes a balance between fine control and efficient solder deposition, while the rosin core flux ensures clean, strong connections on copper, brass, and tinned surfaces. Unlike lead-free alternatives that demand higher temperatures and careful thermal profiling, this leaded wire flows smoothly at a low 183–190°C, reducing the risk of heat damage to sensitive components.

Highlights

• Eutectic Sn60Pb40 composition: 60% tin, 40% lead for a sharp melting point and quick solidification.
• 0.70mm wire diameter ideal for through-hole soldering, wire splicing, and general electronic work.
• Rosin-cored flux (2.5% content) actively cleans oxides and promotes wetting without corrosive residue.
• 500g spool provides ample material for production runs, workshops, and hobby benches.
• Low melting range (183–190°C) protects heat-sensitive parts and speeds up hand soldering.

In daily use

This solder wire is a workhorse for PCB assembly, cable termination, and repair tasks. The rosin flux activates as the wire melts, removing light oxidation and ensuring the solder flows into the joint rather than balling up. Because the alloy is eutectic, it transitions directly from solid to liquid at 183°C, minimizing the pasty phase that can cause disturbed joints. After soldering, the non-corrosive residue can be left in place for many applications, though it may be cleaned with isopropyl alcohol if desired.

Full specifications

• Alloy Composition: Sn60Pb40 (60% Tin, 40% Lead)
• Wire Diameter: 0.70 mm
• Product Weight: 500 g
• Solder Type: Leaded Solder Wire
• Melting Point: 183-190°C
• Eutectic Point: 183°C
• Flux Type: Rosin-cored
• Flux Content: 2.5%
• Form Factor: Spool
• Application: General Electronics Soldering, Electrical Connections, Hobbyist Projects
• Corrosion Properties: Non-corrosive flux
• Residue Type: Requires cleaning
• RoHS Compliance: No (Contains Lead)
• Packaging Material: Plastic Spool

Final note

A dependable leaded solder wire that combines the ease of eutectic Sn60Pb40 with a practical 500g spool, making it a solid choice for both professional and hobbyist soldering work.
