D-Type modul 3,5 mm 3-polový stereo konektor samica na spájkovanie DELOCK 86789

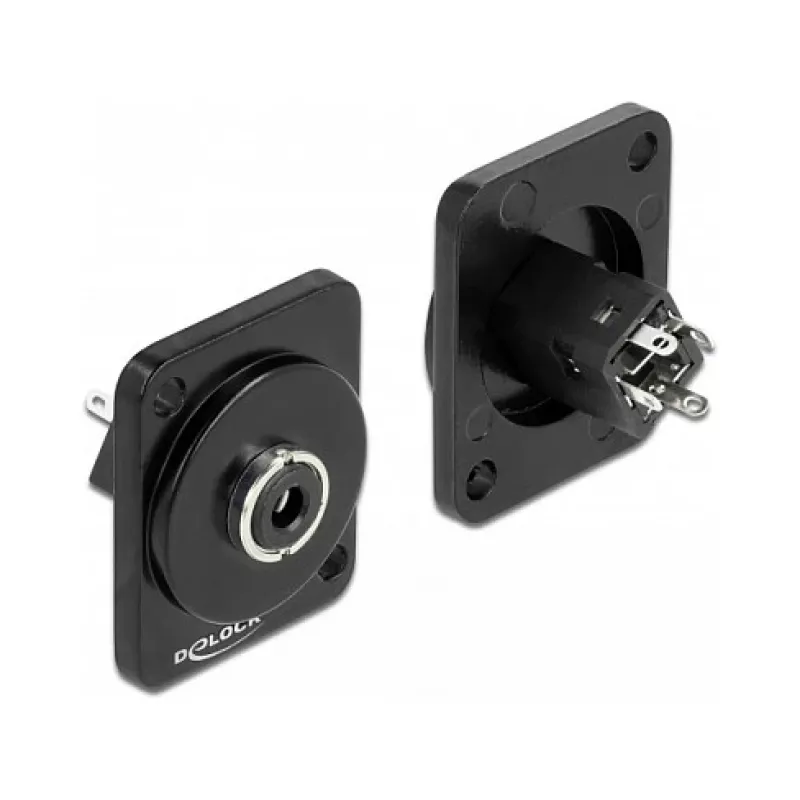

The DeLOCK D-Type Module 3.5 mm 3 pin stereo jack is a panel-mountable module designed for installation in D-type openings commonly used for XLR jacks. The module provides a female 3.5 mm stereo socket with three solder contacts and a black housing. Its compact dimensions (25.5 mm width, 22.2 mm depth, 31.5 mm height) and packaging in a polybag make it suitable for custom audio applications and easy integration into professional audio systems.

Advantages

The module offers a standard 3.5 mm stereo connection in a D-type form factor, allowing analogue equipment to be mounted in panels or cases that feature D-type cutouts. Solder contacts provide a secure, permanent wiring solution. The black housing and compact size save space in racks and panels while maintaining compatibility with existing XLR-style openings.

Suitable for

• Integrating consumer analogue devices into professional audio panels
• Custom audio projects and DIY rack installations
• Replacement or upgrade of panel jacks where D-type openings are used

Key specifications

• Connector type: 3.5 mm 3 pin stereo jack (female)
• Mounting: D-type module for panel/case openings
• Contacts: solder terminals
• Colour: Black
• Dimensions (W×D×H): 25.5 mm × 22.2 mm × 31.5 mm
• Brand: DELOCK, MPN: 86789, EAN: 4043619867899

How to use

Install the module into a compatible D-type opening in a panel or case, align and secure it according to the enclosure's mounting method, then solder the audio wiring to the three solder contacts following standard wiring and safety practices. Verify connections and continuity with a multimeter before powering the audio system.

Recommendations

Use appropriate soldering tools and strain relief for connected cables; avoid excessive mechanical stress on the solder joints. Ensure the panel cutout matches D-type dimensions to prevent loosening or misalignment.
