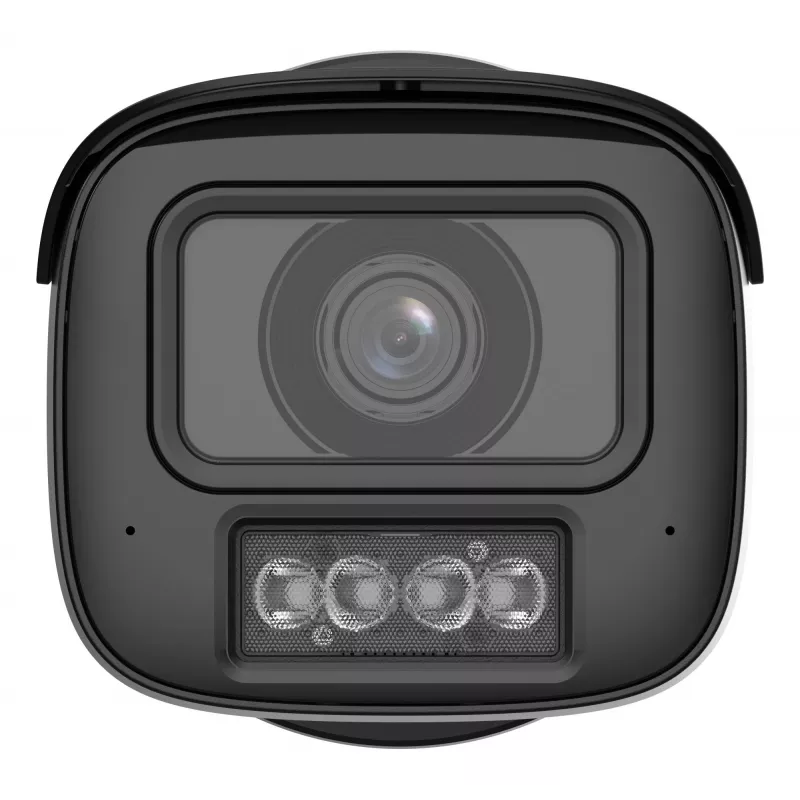

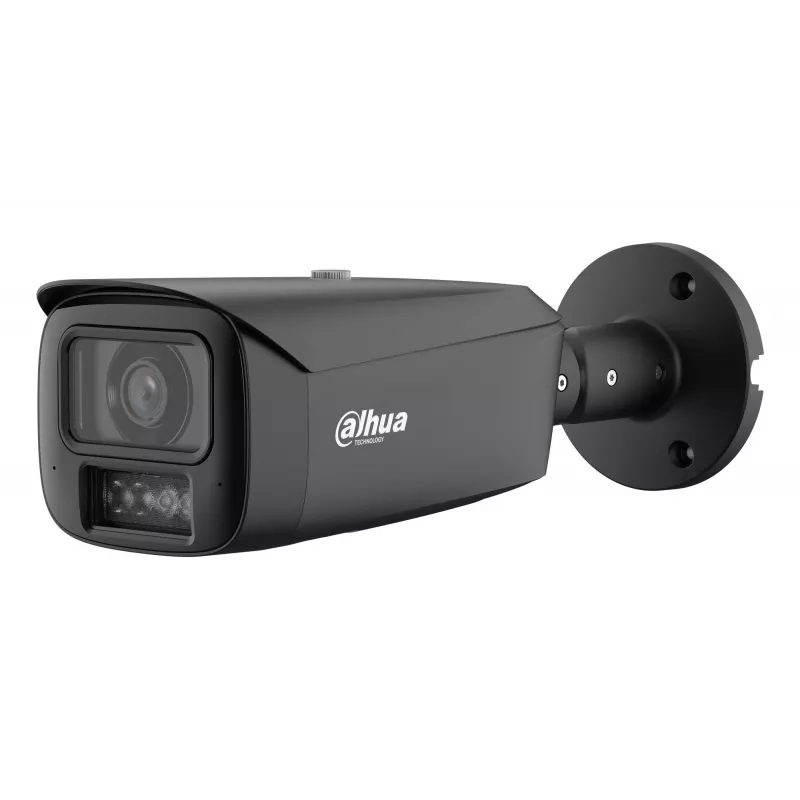

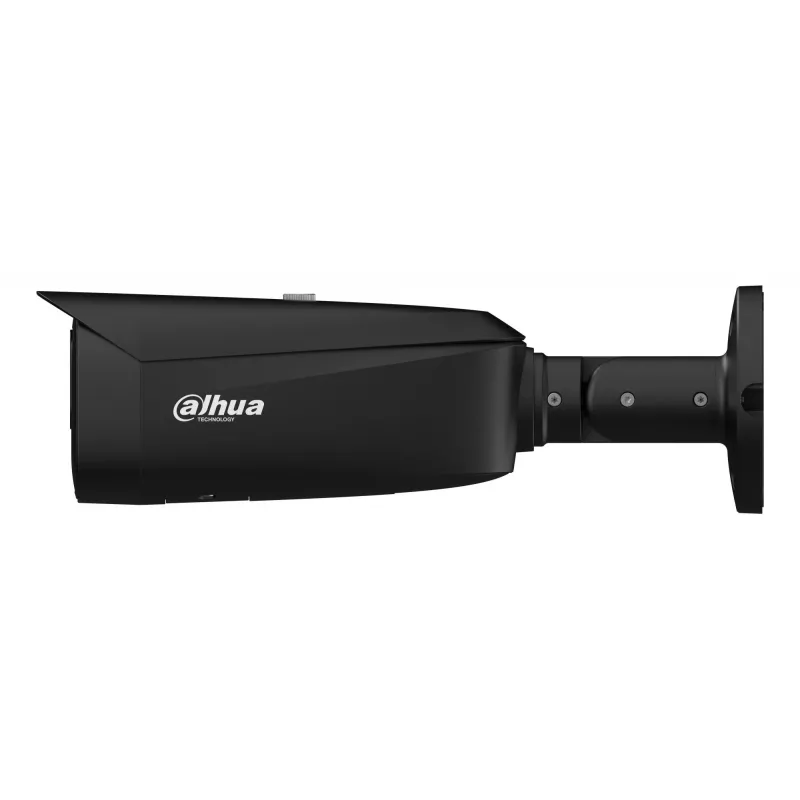

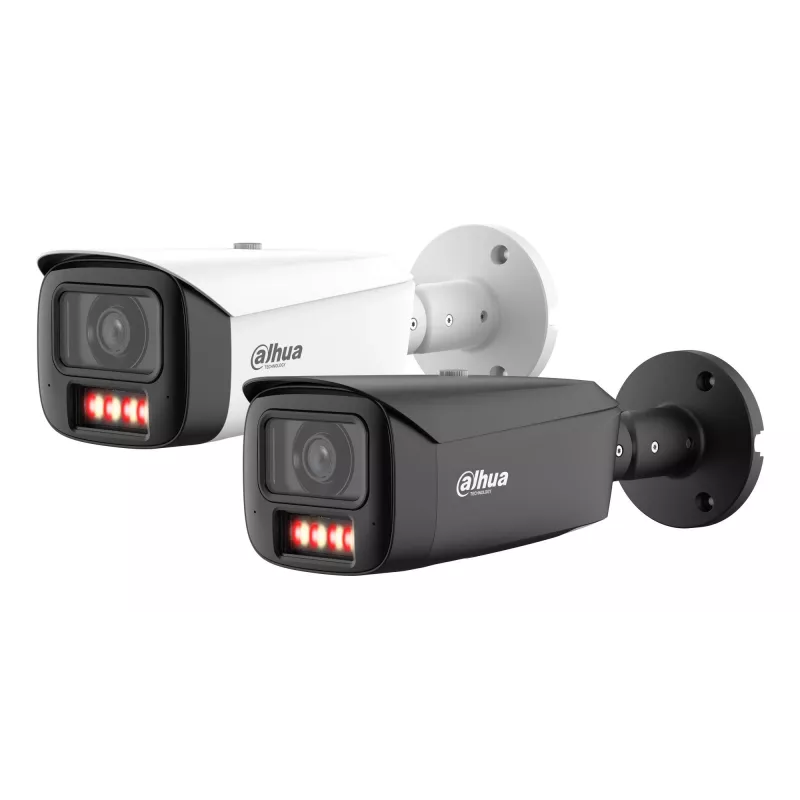

DAHUA 6MP Bullet IP Kamera IPC-HFW5659T1-ASE-PV-0280B-PRO-BLACK

The DAHUA IPC-HFW5659T1-ASE-PV-0280B-PRO-BLACK is a high-performance 6MP bullet IP camera from the WizMind 5 Series, designed for professional surveillance. Featuring a 1/2.7" CMOS sensor, it delivers crisp 3072x2048 resolution at 30 fps. Equipped with a 2.8mm fixed lens, it offers a wide 106° horizontal field of view. Advanced AI capabilities include perimeter protection, SMD Plus, face detection, and people counting. With built-in microphone, audio I/O, and alarm I/O, it supports comprehensive monitoring. The camera supports H.265 compression, micro SD storage up to 256 GB, and is powered via 12V DC or PoE (802.3af). Its IP67-rated metal housing ensures durability in outdoor environments.

Advantages

Exceptional 6MP resolution with True WDR 120 dB for clear imaging in challenging light. AI-powered analytics reduce false alarms. Robust metal construction with IP67 protection for reliable outdoor use. Flexible power options (DC/PoE) simplify installation.

Suitable for

• Perimeter security for commercial and industrial sites
• Retail stores and warehouses
• Parking lots and outdoor areas
• Smart city and traffic monitoring

Key specifications

• Image Sensor: 1/2.7" 6MP progressive scan CMOS
• Max Resolution: 3072x2048 (6MP)
• Frame Rate: 30 fps @ 6MP
• Lens: 2.8mm fixed, FOV 106° (H) / 71° (V) / 130° (D)
• IR Distance: Up to 60m (196.85 ft)
• Video Compression: H.265, H.264, H.264H, H.264B, MJPEG
• AI Features: Perimeter Protection, SMD Plus, Face Detection, People Counting
• Audio: Built-in mic, 1-ch in/1-ch out
• Alarm: 2-ch in/1-ch out
• Storage: micro SD up to 256 GB
• Network: RJ-45 10/100Base-T
• Power: 12V DC / PoE (802.3af), max 10.8W
• Ingress Protection: IP67
• Operating Temperature: -30°C to +60°C
• Material: Metal

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the camera is mounted securely on a wall or ceiling using the included bracket. For AI features, configure via the Dahua NVR or compatible VMS.
