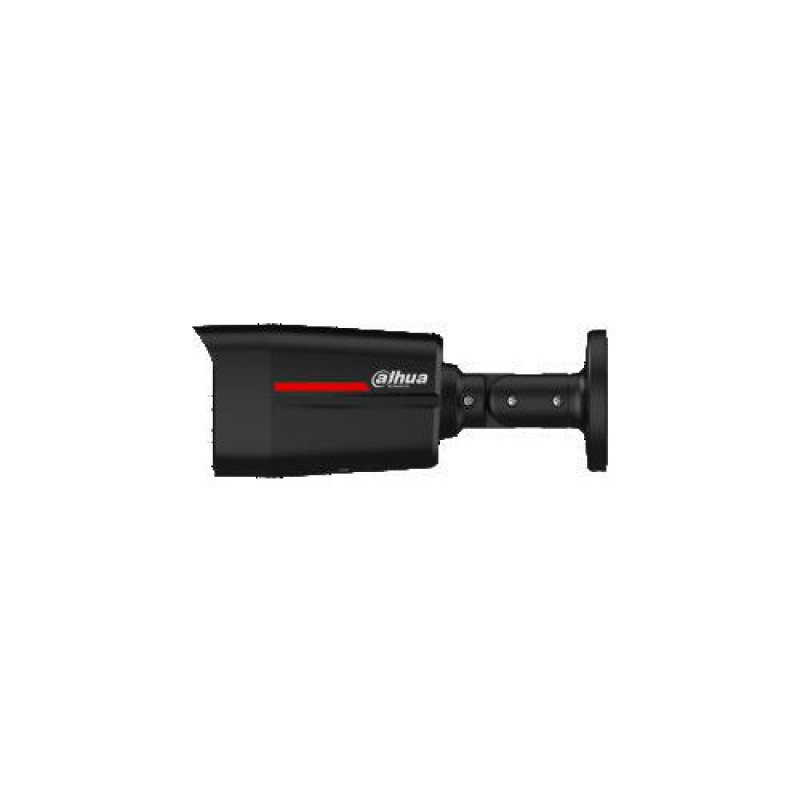

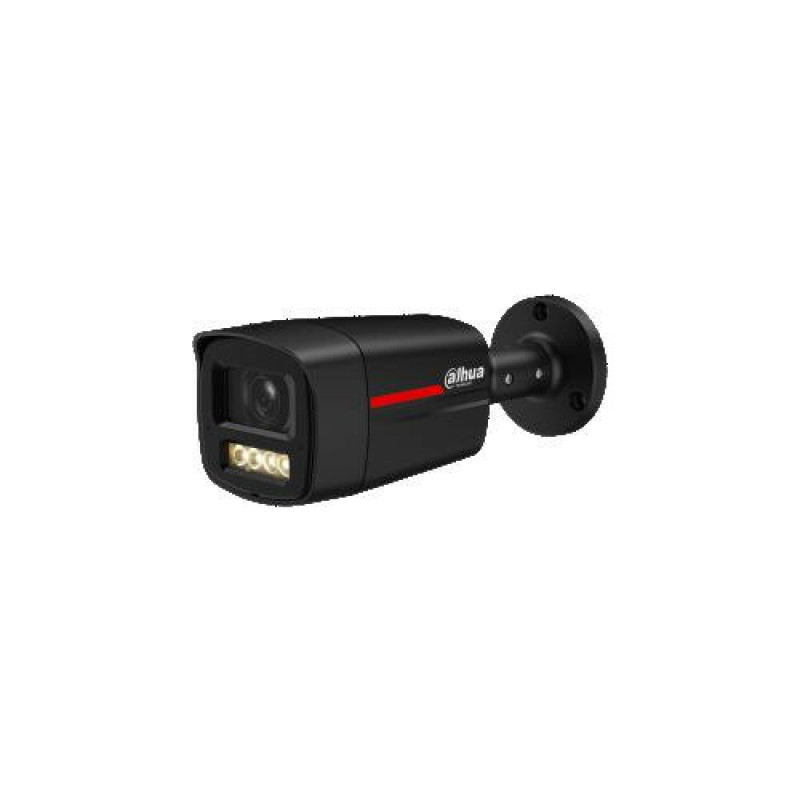

Dahua IP kamera IPC-HFW2449TL-S-LED-0280B-PROX-BLK

The Dahua IPC-HFW2449TL-S-LED-0280B-Prox-Blk is a 4 MP bullet IP security camera designed for outdoor use. It features a 1/1.8" CMOS sensor, warm light illumination up to 20 m, and advanced AI-based video analytics. With IP67 protection and flexible power options, it delivers reliable performance in demanding environments.

Key features

• 4 MP resolution (2560 × 1440) at 25/30 fps
• 1/1.8" CMOS sensor with Ultra Starlight low-light sensitivity
• Warm light illumination up to 20 m
• H.265 and AI H.264/AI H.265 (Super AI Coding) compression
• AI perimeter protection: intrusion and line crossing with person and vehicle classification
• SMD Plus intelligent motion detection
• WDR (120 dB), 3D NR, HLC, BLC
• Built-in dual microphones
• MicroSD card support up to 512 GB
• Power via 12 V DC or PoE
• IP67 weather-resistant rating

Specifications

• Brand: Dahua
• MPN: IPC-HFW2449TL-S-LED-0280B-PROX-BLK
• Product type: IP Security Camera
• Maximum resolution: 4 MP
• Form factor: Bullet
• Placement supported: Outdoor
• Connectivity technology: Wired
• Power source type: DC & PoE
• International Protection (IP) code: IP67
• Image sensor: 1/1.8" CMOS
• Max. resolution: 2560 × 1440 px
• ROM: 128 MB
• RAM: 128 MB
• Scanning system: Progressive
• Electronic shutter: Auto/Manual, 1/3 s – 1/100,000 s
• Minimum illumination: 0.00007 lx @ F0.8
• S/N ratio: >56 dB
• Low-light sensitivity: Ultra Starlight
• Illumination range: Up to 20 m (warm light)
• Illumination control: Auto/Manual
• Number of illuminators: 4 (warm light)
• Pan/Tilt/Rotation: Pan 0°–360°, Tilt 0°–90°, Rotation 0°–360°
• SUPERCAP: 0.07 F
• Lens type: Fixed focal
• Lens mount: M18
• Focal length: 2.8 mm
• Max. aperture: F0.8
• Field of view: Horizontal 106°, Vertical 56°, Diagonal 125°
• Aperture control: Fixed
• Minimum focusing distance: 1.8 m
• DORI – Detection: 59.3 m
• DORI – Observation: 23.7 m
• DORI – Recognition: 11.9 m
• DORI – Identification: 5.9 m
• Video compression: H.265 / H.264 / H.264H / H.264B / MJPEG*
• AI coding: Super AI Coding H.265 / H.264; Smart H.265+ / Smart H.264+
• Main stream: 2560 × 1440 @ 1–25/30 fps
• Sub stream: 704 × 576 @ 1–25/30 fps or 704 × 480 @ 1–30 fps
• Third stream: 352 × 288 @ 1 fps or 352 × 240 @ 1 fps
• Number of streams: 3
• Supported resolutions: 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1; VGA; CIF
• Bit rate control: VBR / CBR
• Bit rate H.264: 32 kb/s – 6144 kb/s
• Bit rate H.265: 12 kb/s – 6144 kb/s
• Default bit rate: 3072 kb/s (2560 × 1440)
• Day/Night mode: Color / B&W
• WDR: 120 dB
• BLC: Yes
• HLC: Yes
• Noise reduction: 3D NR
• White balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional
• Gain control: Auto / Manual
• Motion detection: On/Off; 4 rectangular zones
• ROI: Yes, 4 zones
• Smart illumination: Yes
• Image rotation: 0° / 90° / 180° / 270°
• Mirror: Yes
• Privacy masking: 4 zones
• Lens distortion correction (LDC): Yes
• Perimeter protection IVS: Intrusion / Line crossing
• Object classification: Precise detection and classification of persons and vehicles
• Intelligent motion detection: SMD Plus
• Alarm events: No SD card; SD card full; SD card error; network disconnection; IP conflict; unauthorized access; motion detection
