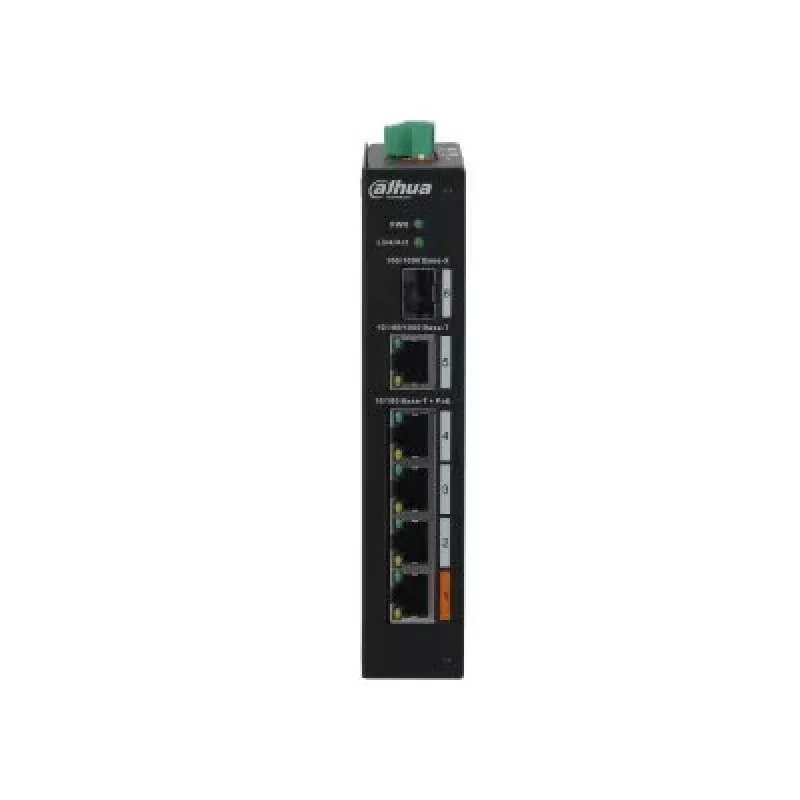

Dahua Technology PoE PFS3106-4ET-60-V2 sieťový switch Unmanaged L2 Fast Ethernet (10/100) čierny

The Dahua Technology PoE PFS3106-4ET-60-V2 network switch Unmanaged L2 Fast Ethernet 4 ports is an unmanaged Layer 2 switch designed to provide basic, reliable connectivity for small to medium network installations. It offers four Fast Ethernet (10/100) RJ-45 ports and a switching capacity of 6.8 Gbit/s. The switch supports a MAC address table of 8000 entries and includes one SFP slot for fiber uplink options. Housed in a compact black enclosure and weighing approximately 0.45 kg, the unit is intended for straightforward deployment where simple connectivity and PoE support are required.

Advantages

This unmanaged L2 switch provides a simple plug-and-play installation without the need for configuration, reducing setup time and operational complexity. The four Fast Ethernet ports deliver dependable 10/100 connectivity for cameras, access points, or other networked devices. A switching capacity of 6.8 Gbit/s and an 8000-entry MAC address table enable stable traffic handling for small to medium deployments. The inclusion of a single SFP slot allows for flexible uplink options to extend connections over fiber when needed. The compact, black design and light weight make it suitable for rack, desktop, or wall-mounted installations in constrained spaces.

Suitable for

• Small office and home office networks requiring basic wired connectivity
• IP surveillance systems with several PoE or non-PoE cameras
• Connecting wireless access points and other network endpoints
• Edge or access layer installations where unmanaged switches are preferred

Key specifications

• Switch type: Unmanaged Layer 2
• Port type: Fast Ethernet (10/100) RJ-45
• Number of RJ-45 ports: 4
• Switching capacity: 6.8 Gbit/s
• MAC address table size: 8000 entries
• SFP: 1 SFP slot for fiber uplink
• Colour: Black
• Weight: approximately 0.45 kg

How to use

Place the switch on a stable surface or mount it according to available mounting points. Connect power and then attach Ethernet cables from your network devices to the Fast Ethernet RJ-45 ports. Use the SFP slot with a compatible SFP module to establish a fiber uplink if required. The device is unmanaged and operates in plug-and-play mode; connected devices will obtain network connectivity without additional configuration from the switch itself. Monitor link/activity LEDs to verify port connections and traffic status.

Recommendations

For best results, use Cat5e or Cat6 cabling for 10/100 connections and select compatible SFP modules rated for the desired fiber type and distance. Install the switch in a ventilated, dry location away from direct heat sources. When integrating into IP surveillance systems, plan PoE power budget per camera and confirm device power requirements if using PoE. Regularly check firmware and compatibility information from the manufacturer when changing network topology or adding high-bandwidth devices.
