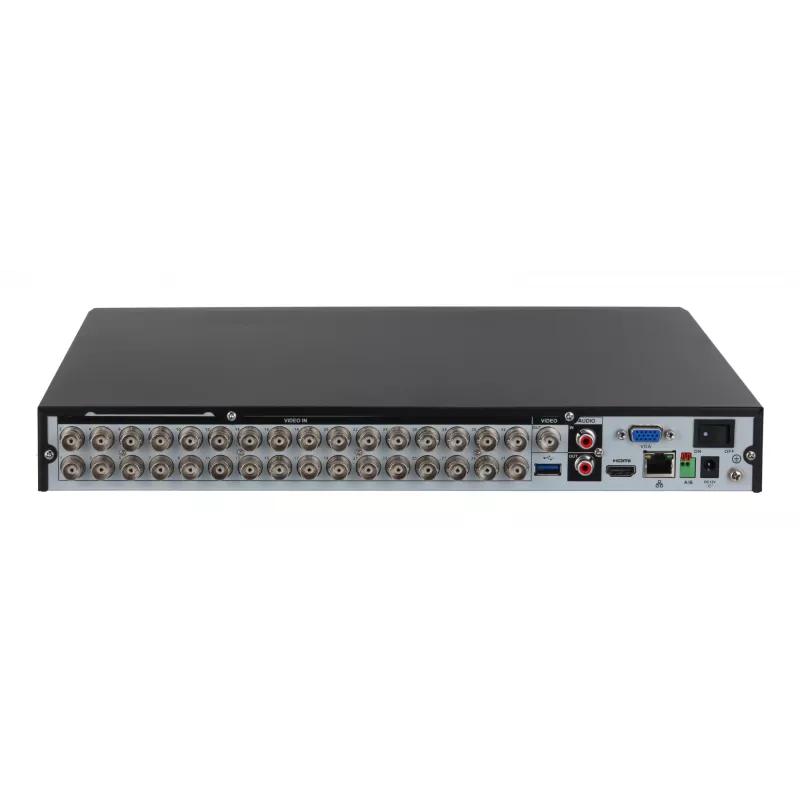

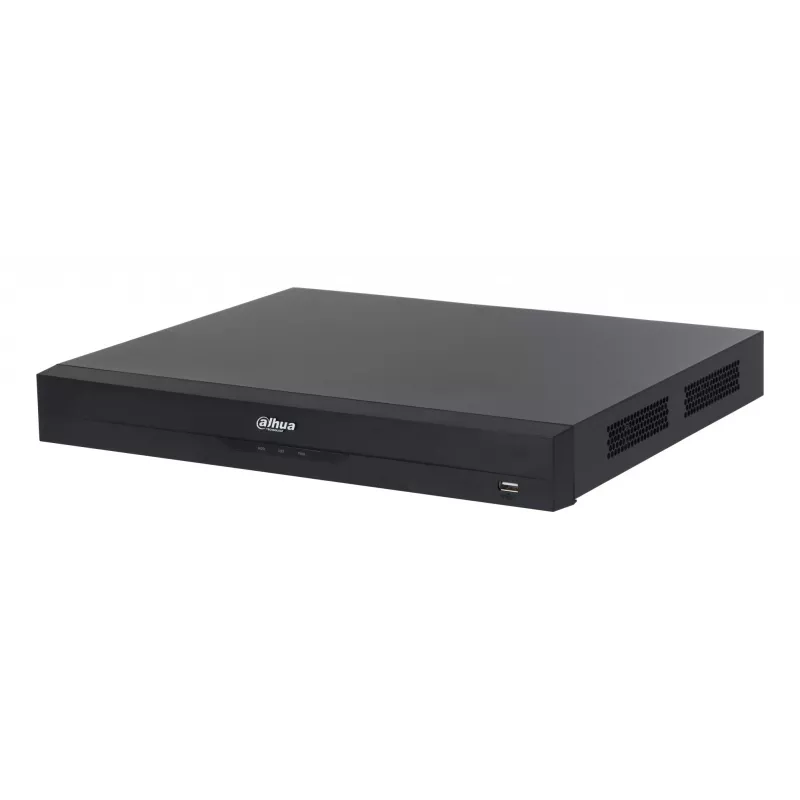

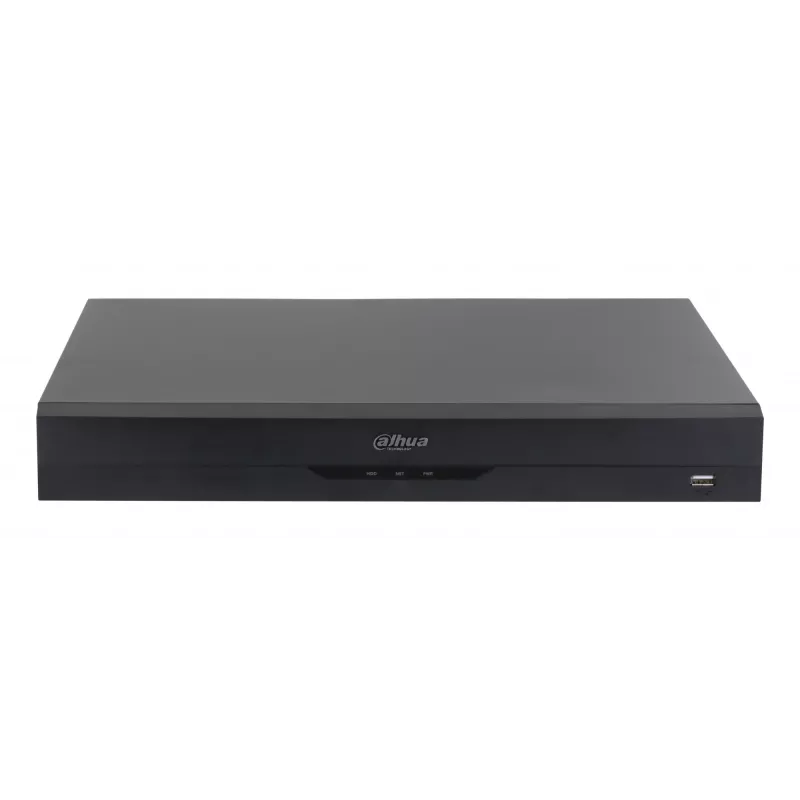

Dahua XVR5232AN-4KL-I3/T 32-kanálový penta-brid HDCVI DVR

The Dahua XVR5232AN-4KL-I3/T is a 32-channel penta-brid HDCVI DVR that supports HDCVI, AHD, TVI, CVBS and IP video input. It features AI-powered functions such as AcuPick, perimeter protection, face recognition and SMD Plus, along with Smart H.265+ and H.265 dual-stream video compression.

Key features

• 32-channel two-way talk over coaxial cable
• 12-channel AcuPick for analog channels
• 12-channel perimeter protection for analog channels (tripwire and intrusion detection)
• 6-channel face recognition for analog channels with face comparison
• 32-channel SMD Plus for analog channels or 64-channel SMD by camera
• 32-channel AI Coding
• Supports HDCVI, AHD, TVI, CVBS and IP video input
• Supports up to 64-channel IP camera input, each up to 8 MP, incoming bandwidth up to 256 Mbps
• Supports accessing Wi-Fi cameras
• Smart H.265+ and H.265 dual-stream video compression

Specifications

• Brand: Dahua
• MPN: XVR5232AN-4KL-I3/T
• Product colour: Black
• Ethernet LAN: Yes
• Maximum video resolution: 3840 x 2160 pixels
• Video compression formats: H.264, H.264+, H.265, H.265+
• Video resolutions: 3840 x 2160, 1920 x 1080, 1280 x 720
• Video input channels: 32 channels
• Ethernet interface type: Fast Ethernet, Gigabit Ethernet
• Supported network protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, P2P
• Ethernet LAN data rates: 10,100,1000 Mbit/s
• Maximum HDD capacity: 16 TB
• Number of HDDs supported: 2
• Audio formats supported: G.711 A-law/G.711u/PCM
• Audio output channels: 1.0 channels
• Backup function: Yes
• Dual stream support: Yes
• Graphical user interface (GUI): Yes
• Multi-display modes: 1/16/25/36/4/8/9
• Multi-display supported: Yes
• Operating system installed: Embedded LINUX
• Playback modes: Event/General/Instant/Smart/Tag
• Rack capacity: 1U
• USB connectivity: Yes
• Video loss detection: Yes
• Video motion detection: Yes
• DC voltage: 12V
• Power consumption (typical): 32W
• Power supply type: DC
• Depth: 333.9 mm
• Height: 53 mm
• Weight: 2378 g
• Width: 375 mm
• Quick start guide: Yes
• Operating relative humidity (H-H): 10 - 90%
• Operating temperature (T-T): -10 - 55°C
• Storage temperature (T-T): -20 - 60°C
• Compliance certificates: CE
• BNC input ports: 32
• HDMI ports quantity: 1
• RS-485 ports: 1
• USB 2.0 ports quantity: 1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
• VGA (D-Sub) output ports: 1
• Video RCA outputs: 1
• Ethernet LAN (RJ-45) ports: 1
